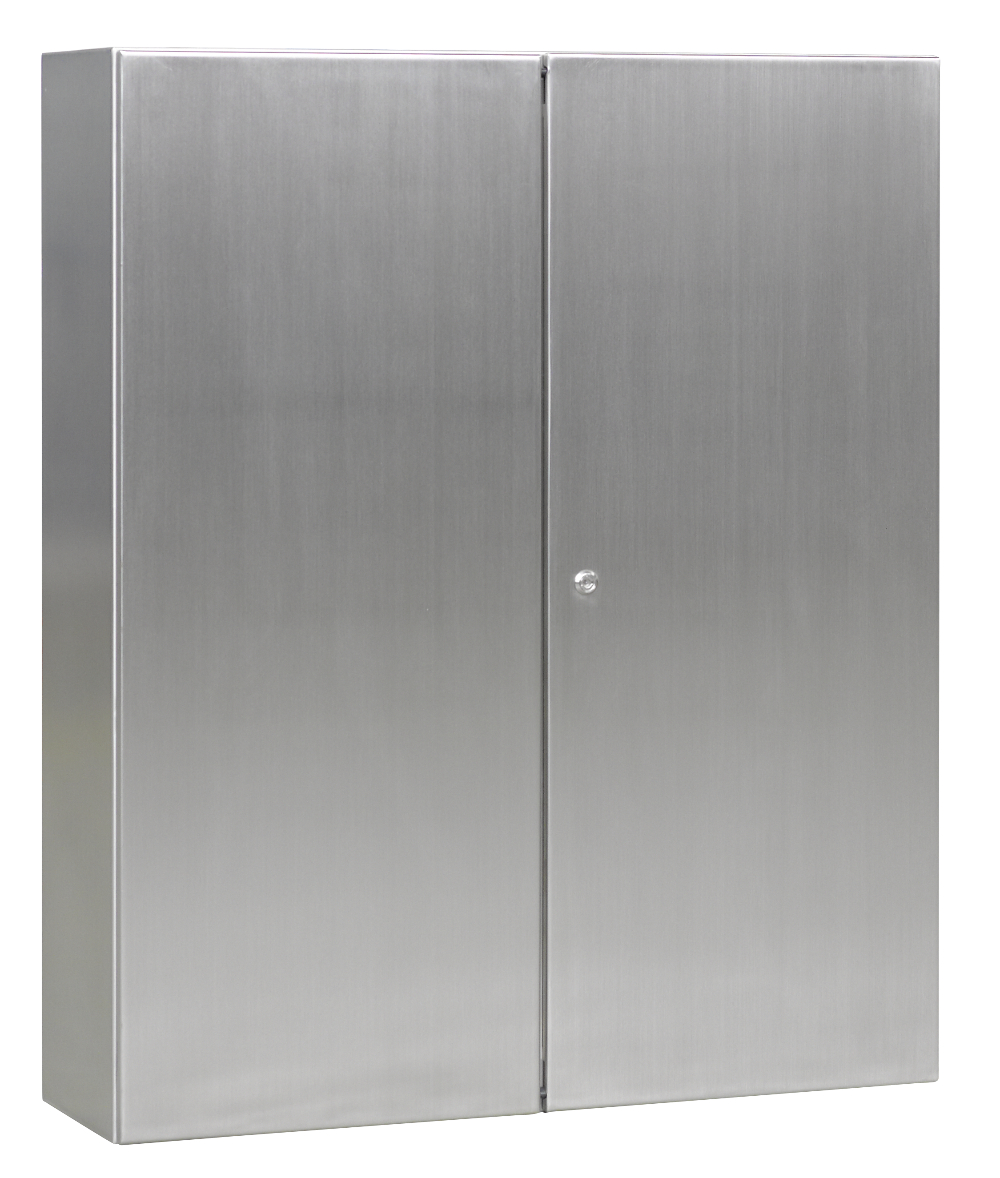

3351-1012-30-10
Wallmount enclosures series 33, 2-doors-stainless steel
- maximum protection class IP 66
- 180° concealed hinge
- solid frame with a width of 26.5 mm
- narrow door gap
- The door’s opening direction can be changed
- big useable depth; maximum depth 16 mm
- flexible system accessories
Product description
Enclosure with double door. Optional with or without mounting panel.
Protective ground connection to DIN EN 61439-1, studs M6x16 on door and body.
Doubly flanged edges and a narrow door gap prevent dust and water from entering the cabinet when opening the door.
Door with seamlessly foamed gasket; Single door version: standard right hand hinge, change of opening direction by turning the enclosure. Double door version: right door overlaps.
Concealed hinges made of stainless steel; opening angle 180°.
Closure: up to a height of 400 mm with 1 turn lock, from a height of 401 mm with 2 turn locks, from 801 with 3-point locking, standard actuation 3 mm double-bit.
Doors with a width from 300 mm and a height from 400 mm are fitted on both sides with bolted reinforcement and hole profiles with fixing drillings in 25 mm increments for screws size M5.
Floor closed.
Mounting panel on studs M8x35 fixed to the back wall, maximum 10 mm depth-adjustable. The edged mounting panel is fixed.
Wall attachment: Back wall with 4 drillings Ø 9 mm for installation of wall mounting brackets.
Stainless steel 1.4301 outside brushed finish.
Technical data
-
Article number: 3351-1012-30-10
-
Variant: with mounting plate
-
Material: Stainless steel
-
Width: 1000 mm
-
Height: 1200 mm
-
Depth: 300 mm
-
Weight: 76.93 kg
-
Included MPL: 0331-1012-00-13
-
Sheet thickness: Body: 1,5 mm
Door: 2 mm -
Maximum installation depth: T-24 mm
-
Protective conductor connection: according to DIN EN 61439-1
-
Surface: Externally brushed
-
Closure: completely made of stainless steel
-
Mounting plate: sendzimir galvanised, 2,5 mm edged 20 mm
-
Authorization: cULus
-
Protection class: IP55
Type 1, 2, 5, 12
Notice
- Compact handle 3070-0908-00-01 (for elongated barrel). Other modifications on request.
- Enclosure complete with mounting panel (supplied loose) and its fixing parts, fixing kit for grounding as well as one key.
