3331-6070-20-06
Wall-mount enclosure EMC, sheet steel 1 door

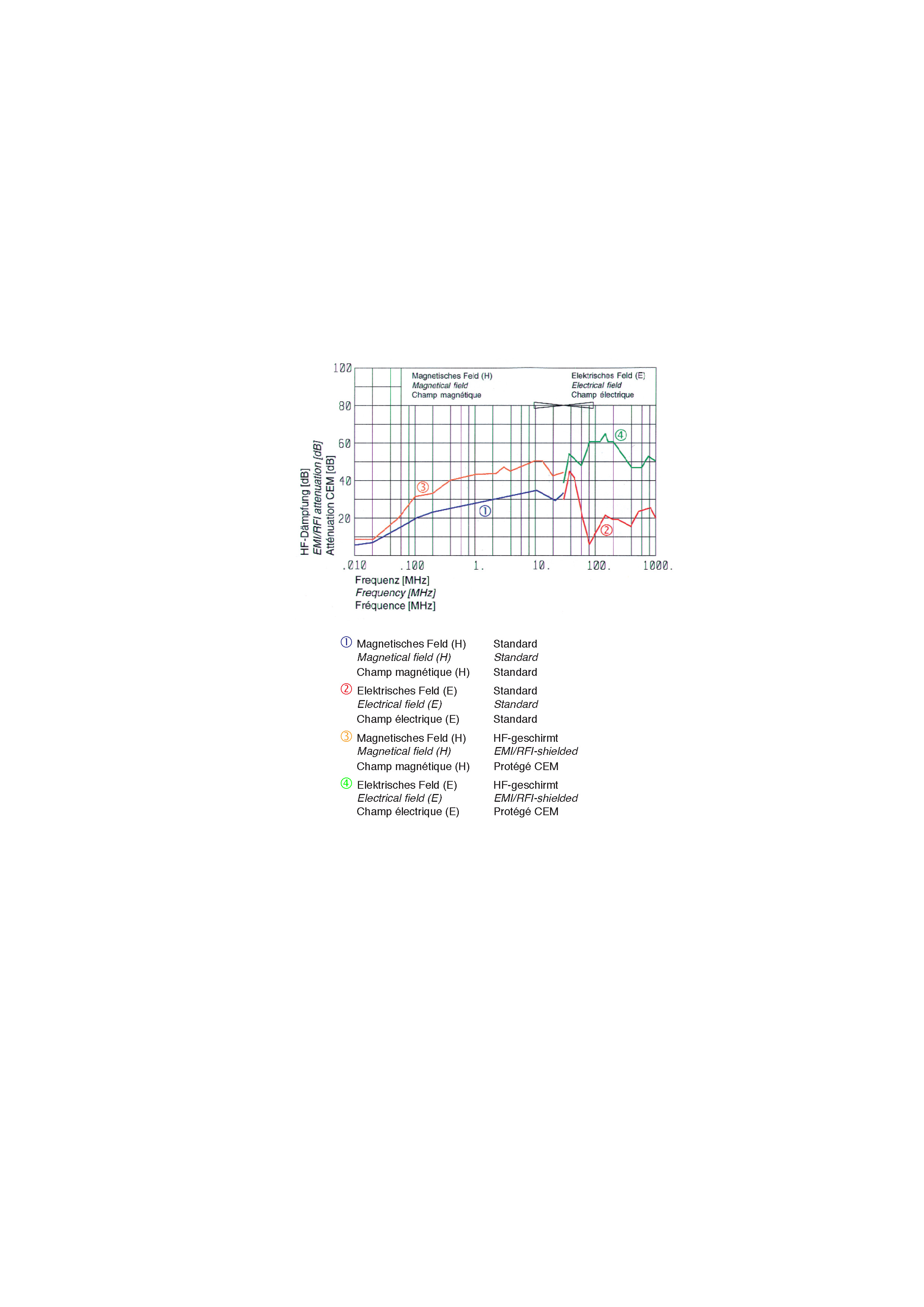

- Protection against electromagnetic interference.
- Prevention of unwanted radiation in the environment.
- EMC/IP special sealing.
- All contact points are conductive.
Product description
Wall cabinet with 1 swing door. Optional mounting plate.
Protective ground connection to DIN EN 61439-1. Studs M6x12 to door and body.
Double coated frame and narrow gap prevent entry of dirt and water.
The enclosure's door seals with a special EMC/IP special seal.
Door right and left hingeable, standard stop right
Hinges made of metal, opening angle 180°.
Lock: operation 3 mm double-bit actuation
Door on both sides from 400 mm height with reinforced perforation and mounting holes, positioned 3.6 mm on 25 mm grid, up to 300 mm height, single-sided on hinged side.
Floor from width 400 mm and 200 mm depth with internal cable insertion plates, made of sheet steel.
Mounting plate on the rear panel, with lock bolts M8x35, 10 mm depth adjustable, up to 1000 mm height, mounting plate edged 20 mm, fix positioned
Wall mounting: rear panel locked with screws.
Technical data
-
Article number: 3331-6070-20-06
-
PRODUKTGRUPPENNAMEEBENE4: Wallmount enclosure series 33 - EMC
-
Variant: without mounting plate
-
Material: Sheet steel
-
Width: 600 mm
-
Height: 700 mm
-
Depth: 200 mm
-
Number of cable plates: 1
-
Cable plate size: size 2
-
Sheet thickness: Body: 1,35 mm
Door: 1,5 mm -
Maximum installation depth: depth of D-16 mm/0,63" or D-24 mm/0,94" with edged mounting panel (20 mm/0,79")
-
Protective conductor connection: according to DIN EN 61439-1
-
Surface: Powder coating RAL 7035, texture finish
-
Closure: GDZn black, latch: galvanized or completely stainless steel
-
Mounting plate: Galvanized, 2 mm, from enclosure width/height 600x600 mm / 23.62x23.62” 2.5 mm, from width/height 801 mm /31.53” flanged 20 mm
-
Constructively designed according to: IP54
Notice
- Compact handle (for elongated barrel). Other modifications on request.
- Enclosure complete with mounting plate and hardware. Cable entry plates on most sizes. 1 Key provided in each unit.
