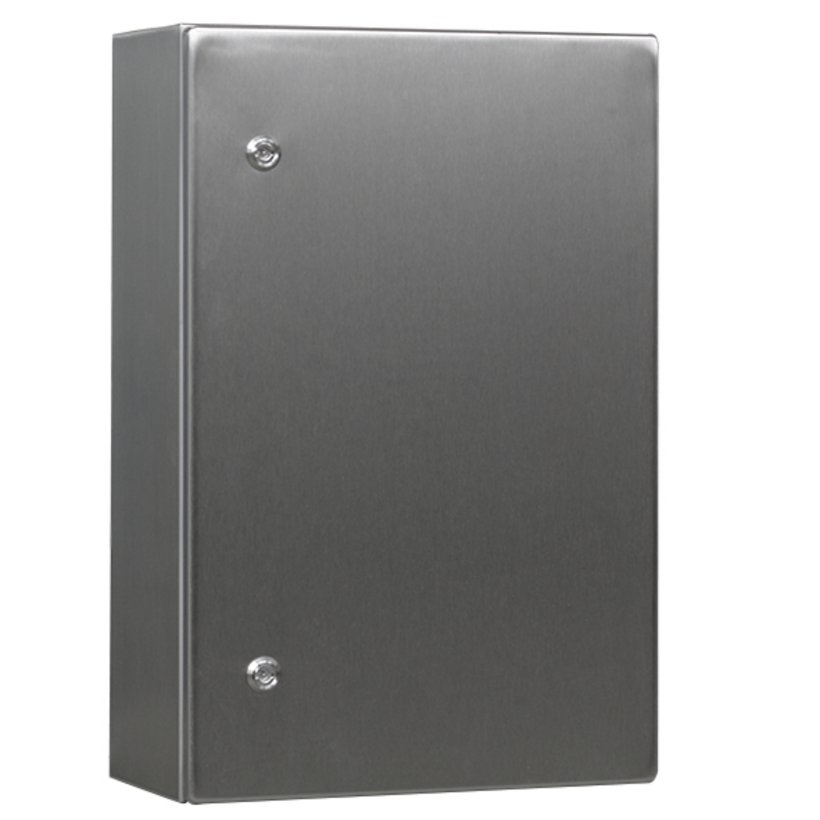

Wall-mount enclosures EMC, stainless steel , 1-door
- Protection from electromagnetic interference
- Prevention of unwanted radiation in the environment.
- EMC/IP special sealing
- All contact points are conductive
Product description
Wall-mounted enclosure with 1 swivel door.
Optional with or without mounting plate.
Protective ground connection to DIN EN 61439-1, studs M8x20 on door and body.
Double reinforced frame and narrow door gap prevents entry of dirt and water.
The enclosure is sealed through the EMC/IP special door seal.
Door with standard stop right.
Hinges made of stainless steel, opening angle 180°
Lock: 3 mm double-bit actuation.
With one angle profile on hinge side; from width 600 mm or height 600 mm, with all angle profile.
Base closed.
Mounting plate on the rear wall with bolts M8x35, 10 mm depth adjustable in height from 1000 mm, mounting plate edged 20 mm, pre-positioned
Wall mounting: Holes closed with screws.
Technical data
-
Article number: 3351-4060-20-06
-
PRODUKTGRUPPENNAMEEBENE4: Wallmount enclosure series 33 - EMC
-
Variant: without mounting plate
-
Material: Stainless steel
-
Width: 400 mm
-
Height: 600 mm
-
Depth: 200 mm
-
Maximum installation depth: depth of D-16 mm/0,63" or D-24 mm/0,94" with edged mounting panel (20 mm/0,79")
-
Protective conductor connection: according to DIN EN 61439-1
-
Surface: Externally brushed
-
Closure: completely made of stainless steel
-
Mounting plate: Galvanized, 2 mm, from enclosure width/height 600x600 mm / 23.62x23.62” 2.5 mm, from width/height 801 mm /31.53” flanged 20 mm
-
Constructively designed according to: IP54
Notice
- Compact handle (for elongated barrel). Other modifications on request.
- Enclosure complete with mounting plate, with attachments, as well as a key.
3080-9066-05-05
Wall mounting brackets, Stainless steel
Wall distance
12 mm
Material
Stainless steel
3080-9066-06-05
Wall mounting brackets, Stainless steel
Wall distance
40 mm
Material
Stainless steel
3080-7108-33-31
Door opening restrictor
Surface
Galvanized
Material
Sheet steel
Opening angle
90°, 105°, 120°, 140°
