7505-xxxx-xx-1x

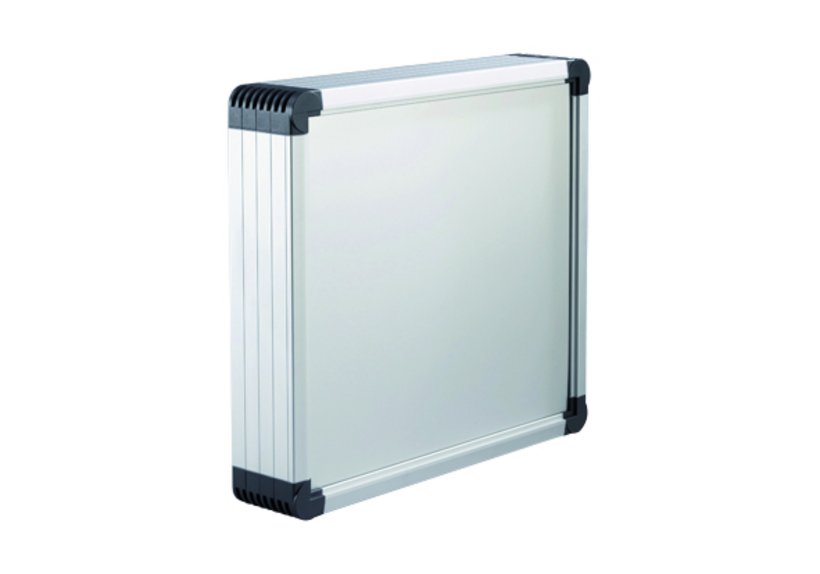

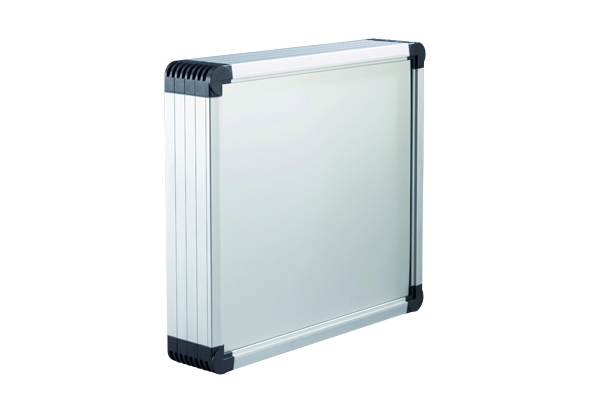

HLG Basic
- Variable width and height dimensions
Product description
Control enclosure made of extruded aluminum profiles
Profile depths 60, 90, 130 or 210 mm.
Width and height are variable up to max. 600 x 700 mm.
It is possible to mount a door with the same profile
Mounting of a pendant arm or lift system is possible at the rear panel, 90 mm and deeper enclosures can also be connected from the top or bottom
Technical data
-
Article number: 7505-xxxx-xx-1x
-
VARIANTEN-NAME-METADATA-GEN: 7505-xxxx-xx-1x
-
Protection class: according to IP54
-
Material: Profiles: extruded aluminum profiles, front and rear panel: 3 mm aluminum
-
Variant: Extruded aluminum profiles
-
Dimensions: Width: variable up to max. 600 mm
Height: variable up to max. 700 mm -
Surface: Profiles, front and rear panel: light anodized, corner profiles: RAL 7016
Notice
- Use for the configuration of your order number the file under Downloads
- 1 enclosure to your specifications
CAD data and other illustrations:
