7505-xxxx-xx-3x
HLG Cool
- Variable width and height dimensions
- With integrated handle flange
- With cooling fins
Product description

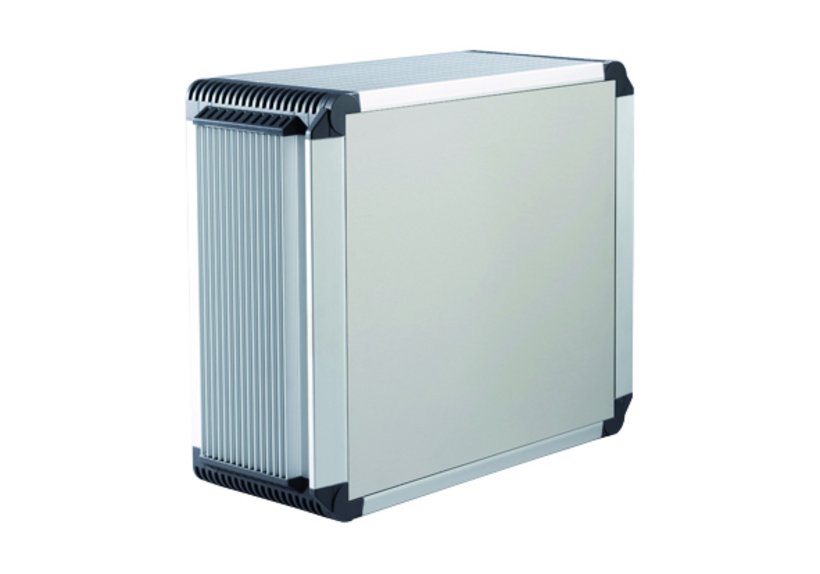

Control enclosure made of extruded aluminum profiles with lateral integrated handle flange
The continuous integrated aluminum side profile enables extremely high passive heat dissipation
Profile depths 130 or 210 mm.
Variable width and height up to max. 600 x 700 mm
It is possible to mount a door with the basic profile
Mounting of a pendant arm or lift system is possible at the rear panel, 90 mm and deeper enclosures can also be connected from the top or bottom
Technical data
-
Article number: 7505-xxxx-xx-3x
-
VARIANTEN-NAME-METADATA-GEN: 7505-xxxx-xx-3x
-
Protection class: according to IP54
-
Material: Profiles: extruded aluminum profiles, front and rear panel: 3 mm aluminum
-
Dimensions: Width: variable up to max. 600 mm
Height: variable up to max. 700 mm -
Surface: Profiles, front and rear panel: light anodized, corner profiles: RAL 7016
Notice
- Use for the configuration of your order number the file under Downloads
- 1 enclosure to your specifications
