HMA I- Lift 48

7595-748x-4x-01

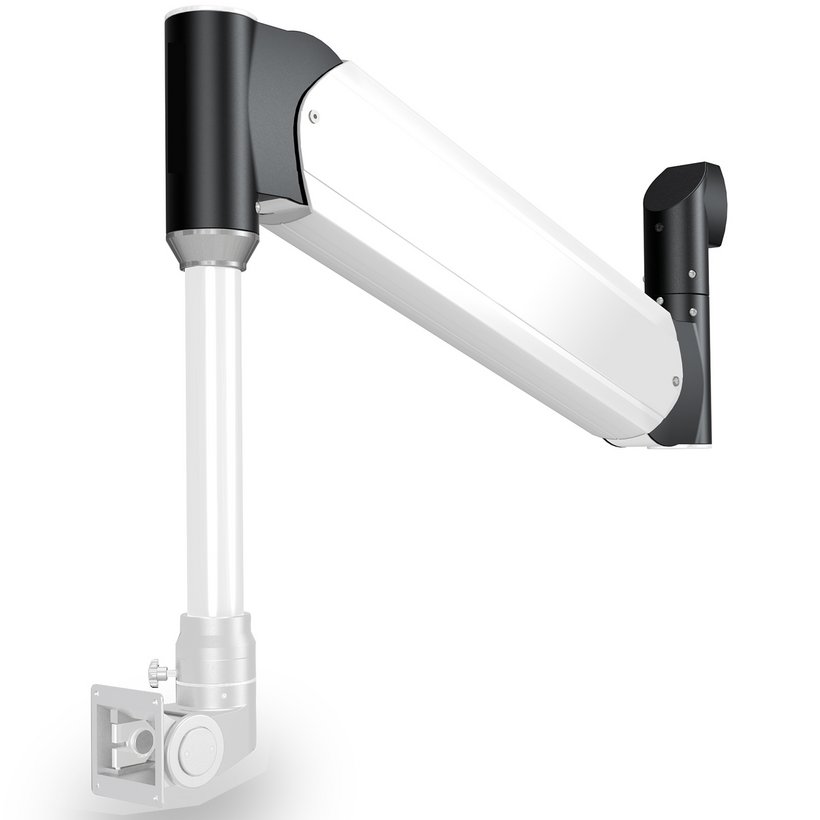

HMA I- Lift 48

  • Continuously adjustable stroke limiter
  • Variable swivel range up to 300°
  • Max. cable passage: 25 x 19 mm
  • Designed to connect to HMA I- components and tubes

Product description

Continuously adjustable suspension arm with internal cable duct with DVI connector.

Vertical swing angle +/-40° with continuously adjustable stroke limiter to +/-0°.

Fine adjustment of the load carrying capacity range by means of an adjusting screw.

Restraint-guided load suspension at the head joint.

Option: Automatic locking of the vertical movement in each position over the entire stroke.

Technical data

  • Article number: 7595-748x-4x-01
  • VARIANTEN-NAME-METADATA-GEN: 7595-748x-4x-01
  • Boom length: 800 mm
  • Stroke up/down: 420/400 mm/16,54/17,75"
  • max. cable aperture: max. 25 x 19 mm
  • Load capacity: 1,5 - 21 kg/3,31 - 46,31
  • Rotation range: max. 300°
  • rotation range limitation: in 30° increments
  • Surface: Cover: RAL 7035; bearing: RAL 7016
  • Weight: 13.3 kg

Notice

  • Delivery time, price upon request
  • Configurations and ordering examples, see downloads
  • HMA I- suspension arm 48 complete with swivel joint and mounting hardware
Save as PDF Save as PDF Direct request
HMA I- Lift 48
HMA I- Lift 48
Continuously adjustable suspension arm with internal cable duct with DVI connector.
Vertical swing angle +/-40° with continuously adjustable stroke limiter to +/-0°.
Fine adjustment of the load carrying capacity range by means of an adjusting screw.
Restraint-guided load suspension at the head joint.
Option: Automatic locking of the vertical movement in each position over the entire stroke.
Remember
7595-748x-2x-01
max. 25 x 19 mm
210/210 mm/8,27/8,27"
500 mm
1,5 - 31 kg/3,31 - 68,36 lbs
7595-748x-3x-01
max. 25 x 19 mm
320/300 mm/12,6/11,81"
650 mm
1,5 - 22 kg/3,31 - 48,51 lbs
7595-748x-4x-01
max. 25 x 19 mm
420/400 mm/16,54/17,75"
800 mm
1,5 - 21 kg/3,31 - 46,31
7595-748x-5x-01
max. 25 x 19 mm
500/500 mm/19,69/19,69"
950 mm
1,5 - 17,8 kg/3,31 - 39,25 lbs
