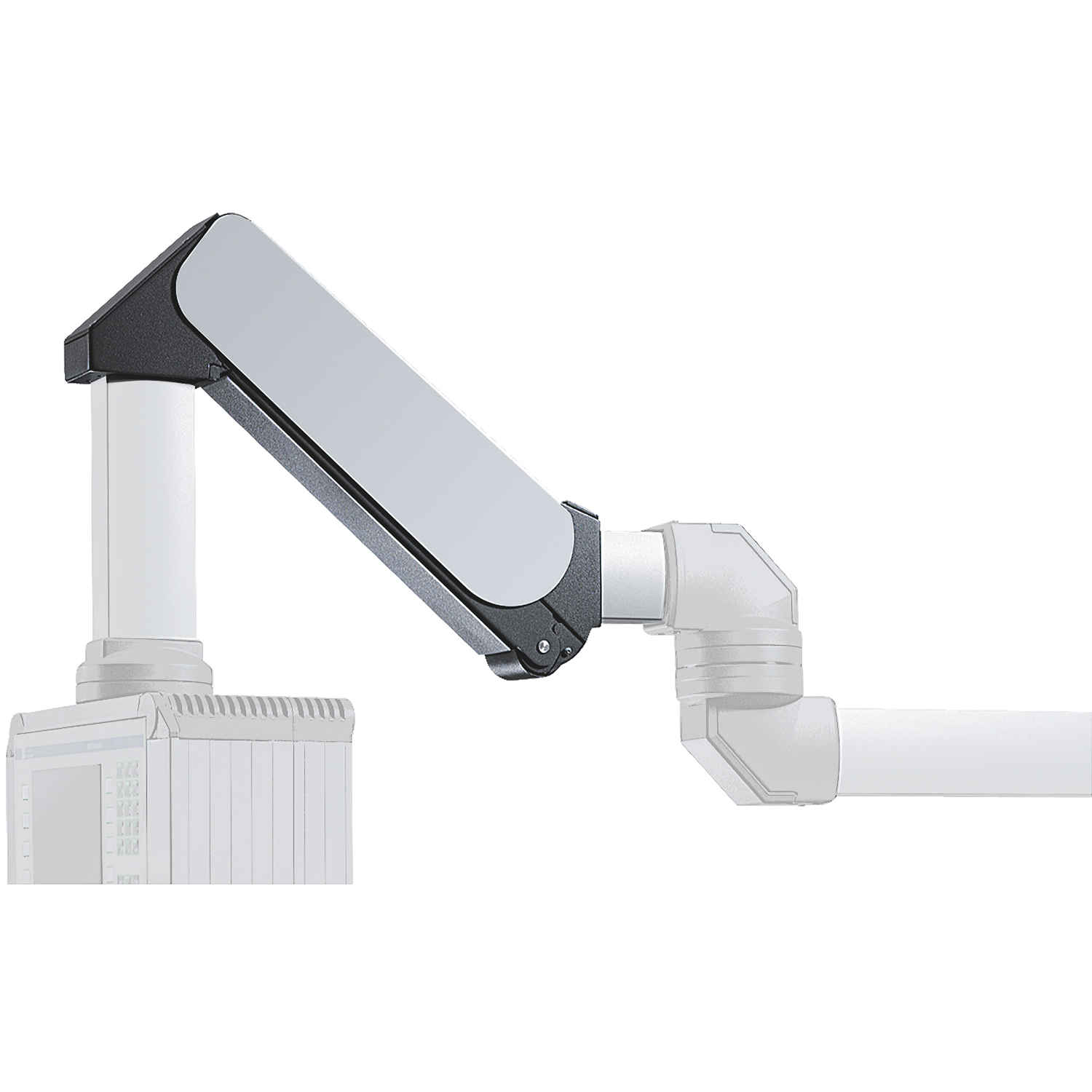

HMA I- lift S

7595-760x-xx-01

HMA I- lift S

  • Continuously adjustable stroke limiter
  • Max. cable passage: 40 x 19 mm
  • Designed to connect to HMA I- components and HMA I- profile tubes

Product description

Continuously adjustable suspension arm with internal cable duct for control enclosures.

Stroke limiter upwards and downwards continuously adjustable.

Fine adjustment of the load carrying capacity range by means of an adjusting screw.

Restraint-guided load suspension at the head joint.

Option: Automatic locking of the vertical movement in each position over the entire stroke.

Technical Data

  • Order No.: 7595-760x-xx-01
  • Extension arm length: 548 mm
  • Stroke upwards/downwards: 260/250 mm/10,24/9,84"
  • Cable passage: max. 40 x 19 mm
  • Load carrying capacity: 5-60 kg/11,03-132,3 lbs
  • Surface: Cover: RAL 7035; bearing: RAL 7016
  • Weight: 13 kg

Notice

  • Configurations and ordering examples, see downloads
