2330-0002-12-15

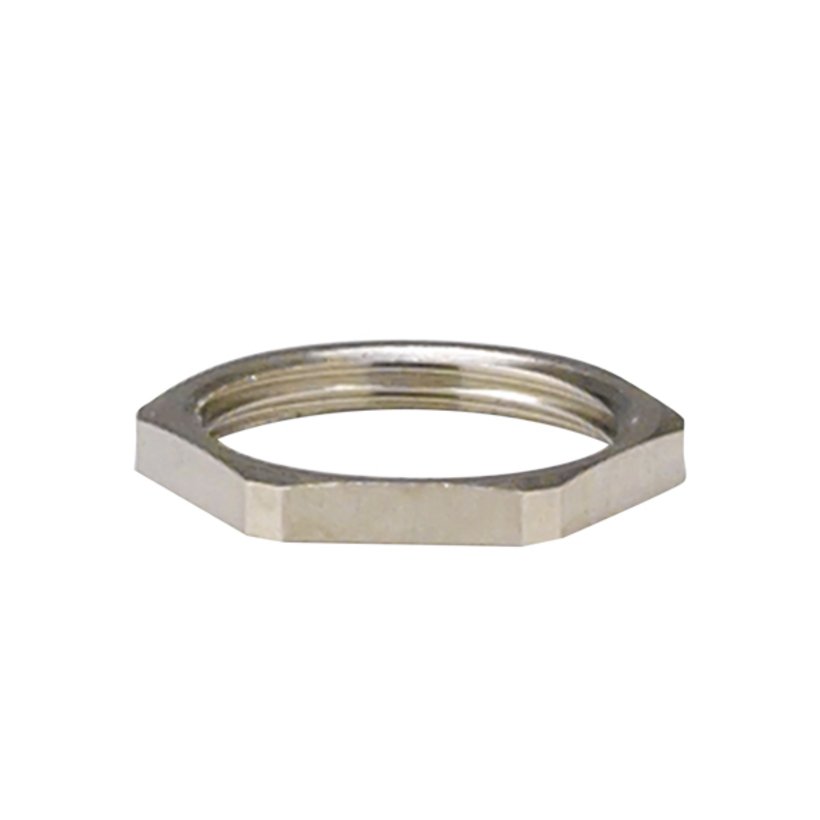

Hexagon nut
Product description
To secure cable glands and other components.
To be used with high mechanical and chemical stability requirements.
Technical data
-
Article number: 2330-0002-12-15
-
Material: brass
-
Surface: electroplated nickel
-
Temperature resistance: from: -60 °C/-140 °F to: +200 °C/+392 °F
-
Gewinde: M 12 x 1,5
-
Dimension H: 2.8 mm
Notice
- Nuts with cutting edges available upon request
- 1 unit
2330-0506-12-15
Cable gland, nickel-plated
Connection thread
metric
Thread
M 12 x 1,5
Clamping range
3 mm
Material
Cap nut + body: Nickel-plated brass
Sealing insert: Polychloroprene-Nitrile rubber CR/NBR
O-Ring: Nitrile rubber NBR
Sealing insert: Polychloroprene-Nitrile rubber CR/NBR
O-Ring: Nitrile rubber NBR
Protection type
IP68

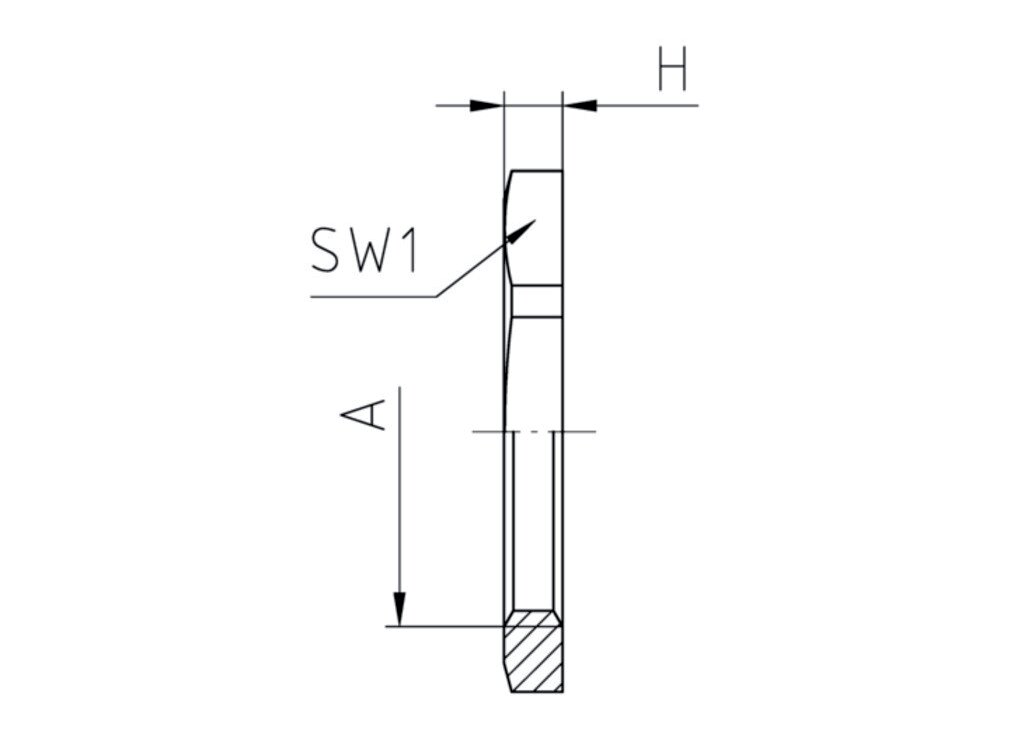

CAD data and other illustrations:
