2331-0063-29-00

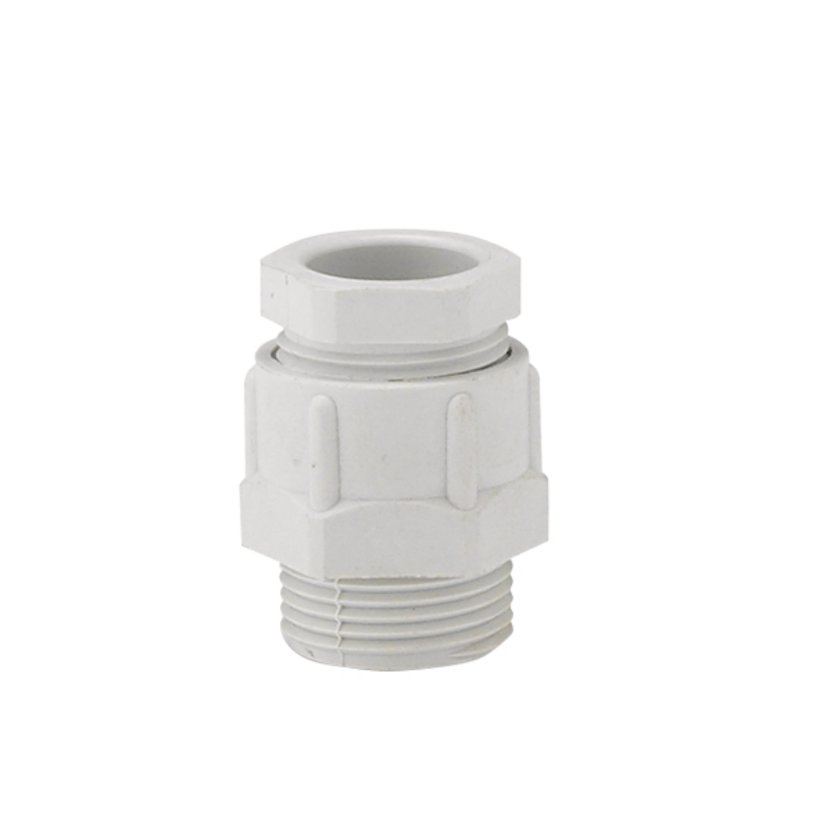

Cable gland IP55
Product description
Application in installation areas without particular requirements.
Technical data
-
Article number: 2331-0063-29-00
-
Dimension L: 11 mm
-
Protection class: IP55
-
Material: Pressure screw + gland body: Polyamide PA6 GF30
Pressure ring: Polyethylene PE-LDO-Ring: SBR/NBR -
Connection thread: PG
-
Temperature resistance: from: -30 °C/-86 °F to +80 °C/+176 °F
-
Length: 45 mm
-
Length: 11 mm
-
Width across flats: 42 mm
-
Gewinde: PG 29
-
Clamping range: from : 24 mm
-
Dimension H: 45 mm
- 1 unit
3080-0102-25-27
Cable entry plate, plastic
Size
1
Pre-embossing
PG
Material
Cable entry plate: Plastic
Sealing: PU-foam
Sealing: PU-foam
3080-0102-32-17
Cable entry plate, sheet steel
Size
2
Pre-embossing
PG
Material
Cable entry plate: Sheet steel
Sealing: PU-foam
Sealing: PU-foam
CAD data and other illustrations:
