2331-0226-20-17

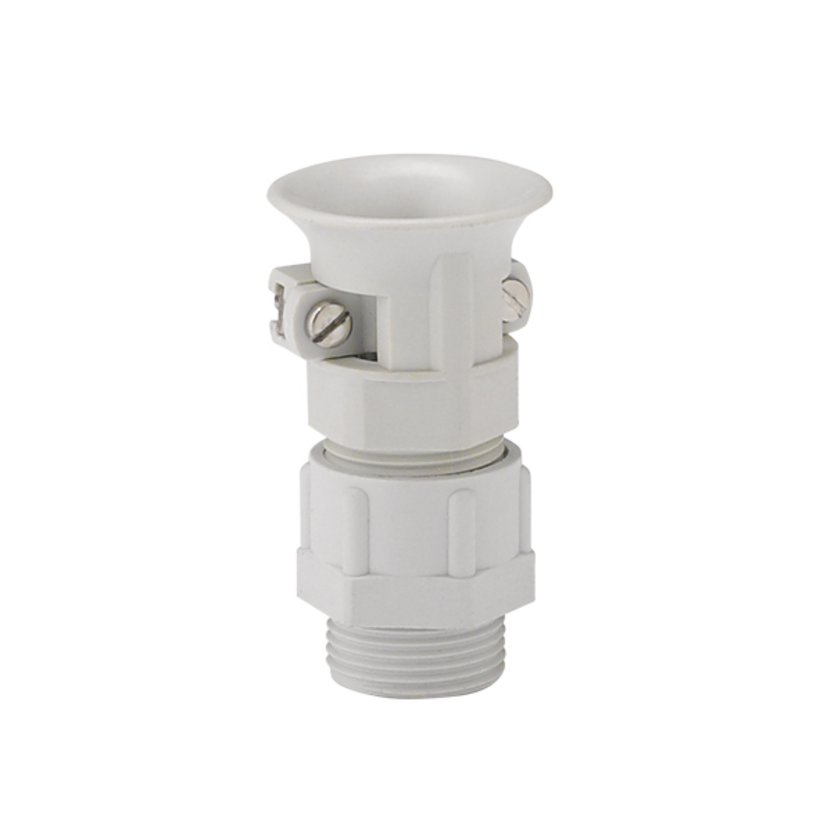

Cable gland with very high strain relief
Product description
Provides also good bending protection. Very high tightening forces due to the separate strain relief.
Technical data
-
Article number: 2331-0226-20-17
-
Dimension L: 11 mm
-
Protection class: IP55
-
Material: Strain relief + gland body: Polyamide PA6 GF30
Pressure ring: Polyethylene PE-LD
O-Ring: SBR/NBR
Screw + nut: Stainless steel -
Connection thread: metric
-
Temperature resistance: from: -30 °C/-86 °F to +80 °C/+176 °F
-
Length: 64.5 mm
-
Length: 11 mm
-
Width across flats: 27 mm
-
Gewinde: M 20 x 1,5
-
Clamping range: from : 10 mm
-
Dimension H: 64.5 mm
- 1 unit
CAD data and other illustrations:
