3070-7302-13-23

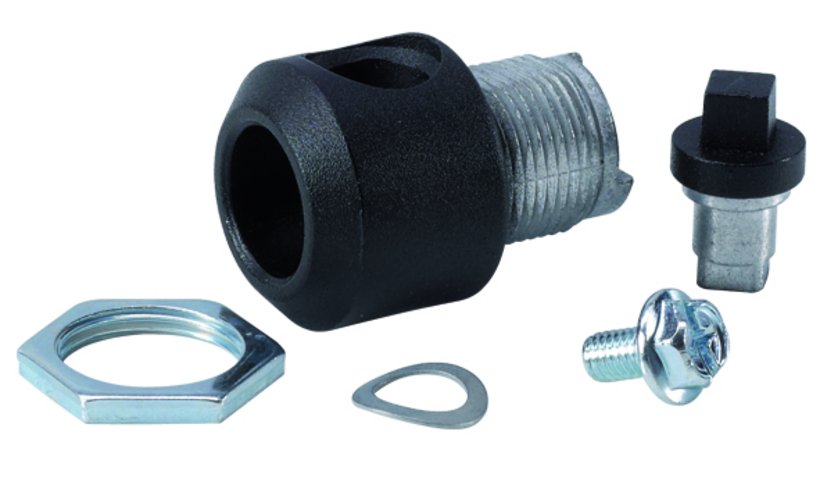

Quarter turn latch lock VE1
- Secured by padlock
Product description
Screwable
Applicable as right hand or left hand lock
The bracket of the padlock protects the actuation from access
Technical data
-
Article number: 3070-7302-13-23
-
Material: zinc die-casting
-
Surface: black
-
Version: Square 8 mm
-
Material and surface: Housing material chrome-plated zinc die-casting, nut, sheet steel bolt galvanized
-
Closing distance: 90 °
-
Housing height: 22 mm
-
Protection class: IP40, with correctly mounted sealing set IP65
Notice
- Other versions on request
- Note: Selection of the latch:This enclosure is 4 mm higher than the häwa standard enclosures (22 mm instead of 18 mm). The specified "dimension b" for latches refers to an enclosure height of 18 mm. Selection example: If you require a locking height of 18 mm (= dimension b), select a latch with a dimension b of 14 mm.
- 1 quarter turn latch lock with fixing parts but without latch and padlock
3070-0304-23-00
Hook latch for quarter turn latch locks
Material
Sheet steel
Surface
Galvanized
Type
Small version

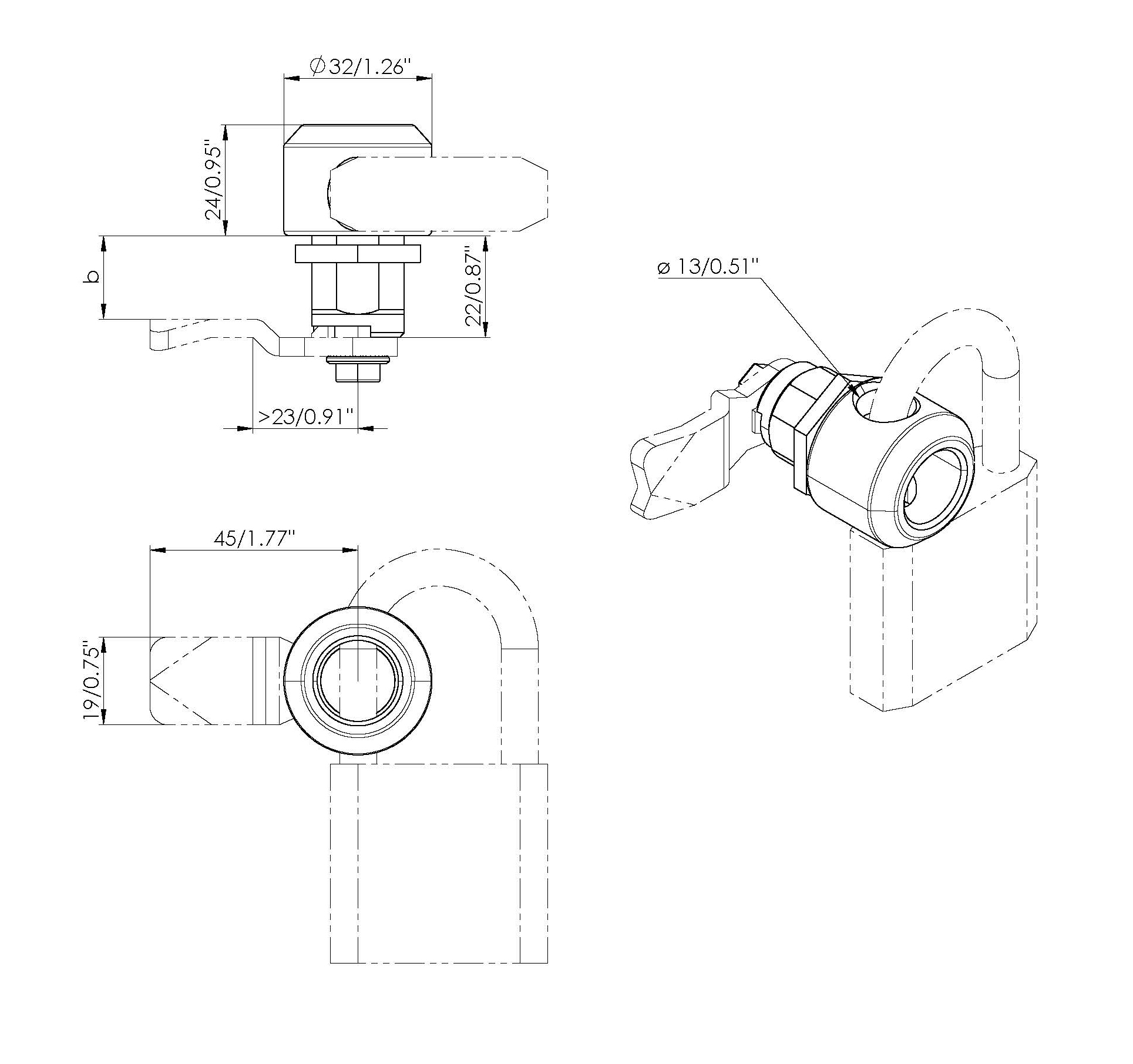

CAD data and other illustrations:
