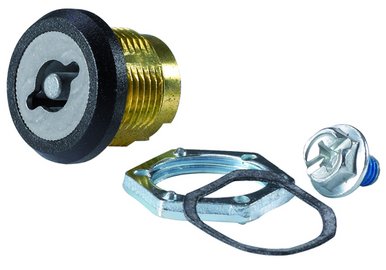

Pre-mounted quarter turn latch lock

Pre-mounted screw-in quarter turn latch lock.
Applicable as right or left hand lock.
Mounting is possible without disassembly.
The position of the latch is indicated by the position of the bolt or its marking.
Bolts are generally made of steel.


3070-7504-11-00	Square 6 mm	GDZn	chrome-plated	45 mm	18 mm
3070-7504-11-01	Square 6 mm	GDZn	black	45 mm	18 mm
3070-7504-11-05	Square 6 mm	Stainless steel	Unfinished	45 mm	18 mm
3070-7504-12-00	Square 7 mm	GDZn	chrome-plated	45 mm	18 mm
3070-7504-12-01	Square 7 mm	GDZn	black	45 mm	18 mm
3070-7504-12-03	Square 7 mm	Plastic	black	45 mm	18 mm
3070-7504-12-05	Square 7 mm	Stainless steel	Unfinished	45 mm	18 mm
3070-7504-13-00	Square 8 mm	GDZn	chrome-plated	45 mm	18 mm
3070-7504-13-01	Square 8 mm	GDZn	black	45 mm	18 mm
3070-7504-13-03	Square 8 mm	Plastic	black	45 mm	18 mm
3070-7504-13-05	Square 8 mm	Stainless steel	Unfinished	45 mm	18 mm
3070-7504-13-33	Square 8 mm	Plastic	black	35 mm	18 mm
3070-7504-14-00	Double bit 3 mm	GDZn	chrome-plated	45 mm	18 mm
3070-7504-14-01	Double bit 3 mm	GDZn	black	45 mm	18 mm
3070-7504-14-03	Double bit 3 mm	Plastic	black	45 mm	18 mm
3070-7504-14-05	Double bit 3 mm	Stainless steel	Unfinished	45 mm	18 mm
3070-7504-14-33	Double bit 3 mm	Plastic	black	35 mm	18 mm
3070-7504-15-00	8 mm triangular	GDZn	chrome-plated	45 mm	18 mm
3070-7504-15-01	8 mm triangular	GDZn	black	45 mm	18 mm
3070-7504-15-03	8 mm triangular	Plastic	black	45 mm	18 mm
3070-7504-15-05	8 mm triangular	Stainless steel	Unfinished	45 mm	18 mm
3070-7504-16-00	Daimler-Benz	GDZn	chrome-plated	45 mm	18 mm
3070-7504-16-01	Daimler-Benz	GDZn	black	45 mm	18 mm
3070-7504-16-03	Daimler-Benz	Plastic	black	45 mm	18 mm
3070-7504-16-05	Daimler-Benz	Stainless steel	Unfinished	45 mm	18 mm
3070-7504-16-33	Daimler-Benz	Plastic	black	35 mm	18 mm
3070-7504-17-00	Triangular 7 mm	GDZn	chrome-plated	45 mm	18 mm
3070-7504-17-01	Triangular 7 mm	GDZn	black	45 mm	18 mm
3070-7504-17-03	Triangular 7 mm	Plastic	black	45 mm	18 mm
3070-7504-17-05	Triangular 7 mm	Stainless steel	Unfinished	45 mm	18 mm
3070-7504-18-00	Double bit 5 mm	GDZn	chrome-plated	45 mm	18 mm
3070-7504-18-01	Double bit 5 mm	GDZn	black	45 mm	18 mm
3070-7504-18-03	Double bit 5 mm	Plastic	black	45 mm	18 mm
3070-7504-18-05	Double bit 5 mm	Stainless steel	Unfinished	45 mm	18 mm
3070-7504-18-33	Double bit 5 mm	Plastic	black	35 mm	18 mm
3070-7504-19-00	Slot 2 mm	GDZn	chrome-plated	45 mm	18 mm
3070-7504-19-01	Slot 2 mm	GDZn	black	45 mm	18 mm
3070-7504-19-03	Slot 2 mm	Plastic	black	45 mm	18 mm
3070-7504-19-05	Slot 2 mm	Stainless steel	Unfinished	45 mm	18 mm
3070-7504-73-03	twist lock	Plastic	black	45 mm	18 mm
3070-7504-84-03	Star grip	Plastic	black	45 mm	18 mm
3070-7604-11-00	Square 6 mm	GDZn	chrome-plated	45 mm	22 mm
3070-7604-11-01	Square 6 mm	GDZn	black	45 mm	22 mm
3070-7604-11-05	Square 6 mm	Stainless steel	Unfinished	45 mm	22 mm
3070-7604-12-00	Square 7 mm	GDZn	chrome-plated	45 mm	22 mm
3070-7604-12-01	Square 7 mm	GDZn	black	45 mm	22 mm
3070-7604-12-03	Square 7 mm	Plastic	black	45 mm	22 mm
3070-7604-12-05	Square 7 mm	Stainless steel	Unfinished	45 mm	22 mm
3070-7604-13-00	Square 8 mm	GDZn	chrome-plated	45 mm	22 mm
3070-7604-13-01	Square 8 mm	GDZn	black	45 mm	22 mm
3070-7604-13-03	Square 8 mm	Plastic	black	45 mm	22 mm
3070-7604-13-05	Square 8 mm	Stainless steel	Unfinished	45 mm	22 mm
3070-7604-14-00	Double bit 3 mm	GDZn	chrome-plated	45 mm	22 mm
3070-7604-14-01	Double bit 3 mm	GDZn	black	45 mm	22 mm
3070-7604-14-03	Double bit 3 mm	Plastic	black	45 mm	22 mm
3070-7604-14-05	Double bit 3 mm	Stainless steel	Unfinished	45 mm	22 mm
3070-7604-15-00	8 mm triangular	GDZn	chrome-plated	45 mm	22 mm
3070-7604-15-01	8 mm triangular	GDZn	black	45 mm	22 mm
3070-7604-15-05	8 mm triangular	Stainless steel	Unfinished	45 mm	22 mm
3070-7604-16-00	Daimler-Benz	GDZn	chrome-plated	45 mm	22 mm
3070-7604-16-01	Daimler-Benz	GDZn	black	45 mm	22 mm
3070-7604-16-05	Daimler-Benz	Stainless steel	Unfinished	45 mm	22 mm
3070-7604-17-00	Triangular 7 mm	GDZn	chrome-plated	45 mm	22 mm
3070-7604-17-01	Triangular 7 mm	GDZn	black	45 mm	22 mm
3070-7604-17-05	Triangular 7 mm	Stainless steel	Unfinished	45 mm	22 mm
3070-7604-18-00	Double bit 5 mm	GDZn	chrome-plated	45 mm	22 mm
3070-7604-18-01	Double bit 5 mm	GDZn	black	45 mm	22 mm
3070-7604-18-03	Double bit 5 mm	Plastic	black	45 mm	22 mm
3070-7604-18-05	Double bit 5 mm	Stainless steel	Unfinished	45 mm	22 mm
3070-7604-19-00	Slot 2 mm	GDZn	chrome-plated	45 mm	22 mm
3070-7604-19-01	Slot 2 mm	GDZn	black	45 mm	22 mm
3070-7604-19-05	Slot 2 mm	Stainless steel	Unfinished	45 mm	22 mm

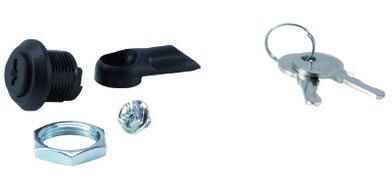

Quarter turn latch lock insulated

Screwable
Applicable as right hand or left hand lock


3070-7502-12-03	Square 7 mm	Polyamide	black
3070-7502-13-03	Square 8 mm	Polyamide	black
3070-7502-14-03	Double bit 3 mm	Polyamide	black
3070-7502-18-03	Double bit 5 mm	Polyamide	black

Cylinder quarter turn latch lock

Screw-in cylinder quarter turn latch lock for housings with an installation hole of 22.5 x 20.1 mm and 23.1 x 20.2 mm.
Can be used for right-hand and left-hand locking.
Suitable latch, see accessories.

Art No.	Remember
3070-7383-13-33

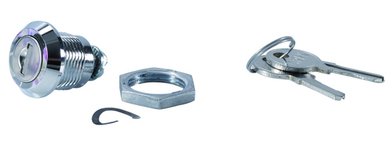

Security quarter turn latch lock

Screweable
Applicable as right hand or left hand lock
The security sash lock is resistant to vibrations. Depending on the assembly situation and the operating conditions specific inspections are necessary and/or supplementary measures for the fixation.

	Remember
3070-7304-12-00
3070-7304-13-00
3070-7304-14-01
3070-7304-14-02
3070-7304-18-01
3070-7304-18-02

Quarter turn latch lock resistant to vibrations

Screwable
Applicable as right hand or left hand lock
The key can be extracted in both positions

	Remember
3070-7583-18-13
3070-7583-22-13

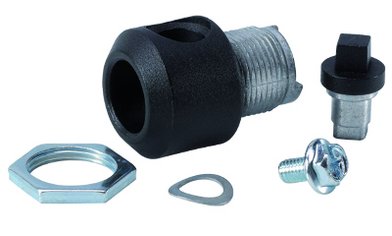

Quarter turn latch lock VE1

Screwable
Applicable as right hand or left hand lock
The bracket of the padlock protects the actuation from access

	Remember
3070-7302-12-23
3070-7302-13-23
3070-7302-18-23

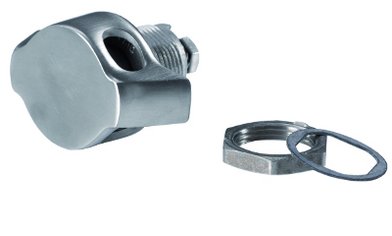

Toggle quarter turn latch lock VD1

Screwable
Applicable as right hand and left hand lock

Art No.	Remember
3070-0702-85-05

Toggle quarter turn latch lock D1

Screw-in toggle quarter turn latch lock for housing with installation holes 22.5 x 20.1 mm/0,89” x 0,79” and 23.1 x 20.2 mm/0,91” x 0,79”.
Applicable as right or left hand lock.


3070-7502-00-00	not lockable	90 °
3070-7502-13-30		90 °
3070-7502-40-50		90 °
3070-7502-45-50		90 °

Toggle quarter turn latch lock TD1

Screwable
Applicable as right hand and left hand lock
Grounding by earthing nut
Door thickness max. 8 mm

					Remember
3070-0702-95-05		Stainless steel 1.4401	bright, grip polished	with correctly mounted seal disk IP65
3070-7393-00-00		GDZn	chrome-plated	with correctly mounted seal disk IP65

Toggle quarter turn latch lock TD1, lockable

Screwable
Applicable as right hand and left hand lock
Grounding by earthing nut
Door thickness max. 8 mm

Art No.	Remember
3070-7393-13-33	1333, 333	GDZn	chrome-plated	IP54

Quarter turn latch lock, small version E1

Screwable
Applicable as right hand and left hand lock
Mounting possible without disassembly
Completely pre-mounted


3070-7322-11-15	Square 6 mm	GDZn	chrome-plated	24 mm	13.5 mm
3070-7322-11-20	Square 6 mm	GDZn	chrome-plated	24 mm	19.5 mm
3070-7322-19-15	Slot	GDZn	chrome-plated	24 mm	13.5 mm
3070-7322-19-20	Slot	GDZn	chrome-plated	24 mm	19.5 mm

Toggle quarter turn latch lock, small version

Screwable
Applicable as right hand and left hand lock
The key can be extracted in both positions
Round cylinder with stainless steel cap


3070-0324-10-15	Enclosure and toggle: zinc diecasting Fixing parts: galvanized steel	13.5 mm	24 mm	black
3070-0324-20-15	Enclosure and toggle: zinc diecasting Fixing parts: galvanized steel	13.5 mm	24 mm	chrome-plated
3070-0324-10-20	Enclosure and toggle: zinc diecasting Fixing parts: galvanized steel	19.5 mm	24 mm	black
3070-0324-20-20	Enclosure and toggle: zinc diecasting Fixing parts: galvanized steel	19.5 mm	24 mm	chrome-plated

Toggle quarter turn latch lock, small version E1

Screwable
Applicable as right hand and left hand lock
The key can be extracted in both positions
Round cylinder with stainless steel cap


3070-0324-30-15	Enclosure and toggle: zinc diecasting Fixing parts: galvanized steel	13.5 mm	24 mm	black
3070-0324-40-15	Enclosure and toggle: zinc diecasting Fixing parts: galvanized steel	13.5 mm	24 mm	chrome-plated
3070-0324-30-20	Enclosure and toggle: zinc diecasting Fixing parts: galvanized steel	19.5 mm	24 mm	black
3070-0324-40-20	Enclosure and toggle: zinc diecasting Fixing parts: galvanized steel	19.5 mm	24 mm	chrome-plated
