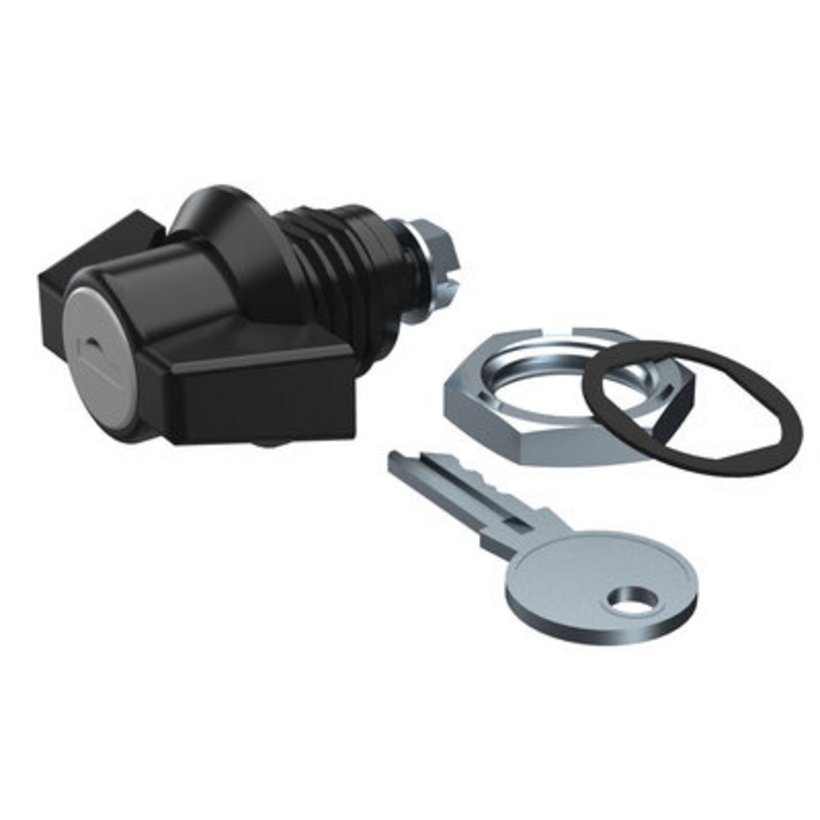

Toggle quarter turn latch lock D1
Product description
Screw-in toggle quarter turn latch lock for housing with installation holes 22.5 x 20.1 mm/0,89” x 0,79” and 23.1 x 20.2 mm/0,91” x 0,79”.
Applicable as right or left hand lock.
Technical data
-
Article number: 3070-7502-45-50
-
Material: Housing + nuts: zinc die-casting
Toggle: polyamide -
Surface: Housing: black
Toggle: black -
Closing distance: 90 °
-
Installation opening: 22.5 x 20.1 mm/0,89" x 0,79" or 23.1 x 20.2 mm/0,91" x 0
Notice
- Please determine the required dimension "b" of the crank to select the suitable latch.
- Suitable locking tongue, see accessories.
- Toggle quarter turn latch lock with seal and grounding nut
- 2 keys
3070-0304-23-00
Hook latch for quarter turn latch locks
Material
Sheet steel
Surface
Galvanized
Type
Small version
3070-0304-28-00
Hook latch for quarter turn latch locks
Material
Sheet steel
Surface
Galvanized
Type
Big version
