3070-7583-22-13
Quarter turn latch lock resistant to vibrations
- resistant to vibrations
- all-insulated
Product description
Screwable
Applicable as right hand or left hand lock
The key can be extracted in both positions
Technical data
-
Article number: 3070-7583-22-13
-
Material: Polyamide
-
Surface: black
-

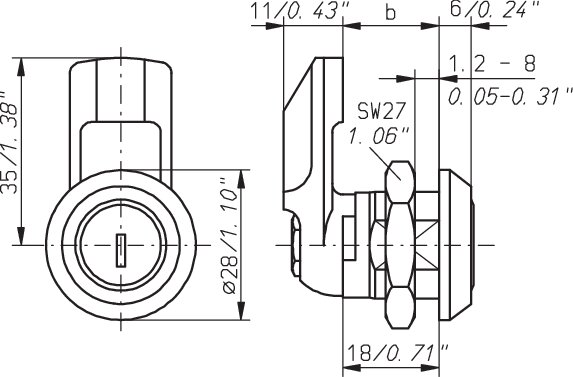

Dimension b: 20 mm
-
Material and surface: enclosure, latch and turning lock handle from the same material; Fixing nut: galvanized steel
-
Closing distance: 90 °
-
Closing: 1333, 333
-
Protection class: IP40

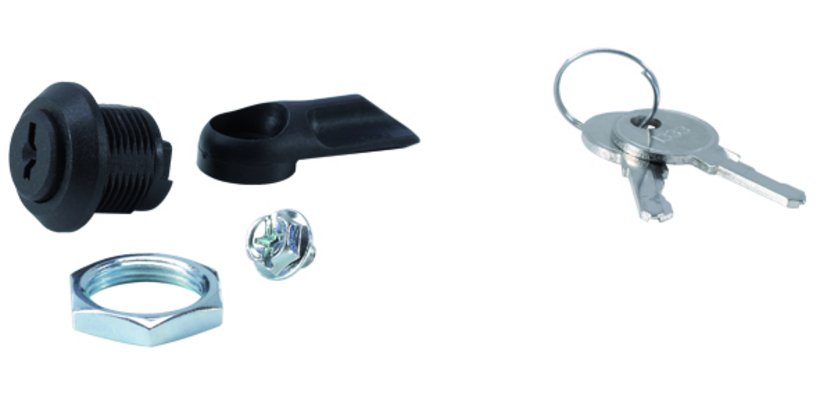

- 1 complete turning lock with latch, fixing parts and closing cylinder with 2 keys
3070-0304-23-00
Hook latch for quarter turn latch locks
Material
Sheet steel
Surface
Galvanized
Type
Small version
