Pivot lever for cabinet doors, can be mounted at right or left side.
The type rating is dependent on the mounting position, max. possible type rating IP65.
Prepared for mounting of an elongated barrel to DIN 18252, length = 40 mm /1.57”.
The lockable lever is countersunk in closed position. To unlock, swing the lever upwards.

Pivot lever for cabinet doors, can be mounted at right or left side.
The type rating is dependent on the mounting position, max. possible type rating IP65.
Prepared for mounting of an elongated barrel to DIN 18252, length = 40 mm /1.57”, up to 5 mm / 0.19” protruding barrel head with 45° or 90° latch lock position.
The lockable lever is countersunk in closed position. To unlock, swing the lever upwards.

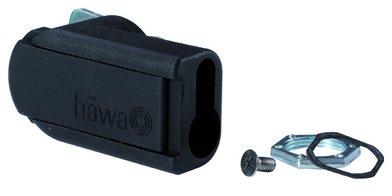

The compact handle is particularly designed for (wall-mount) enclosures series 33 and fits into all common quarter turn latch lock holes (20,1 x 22,5; 20,2 x 23,1 or ø23,1 mm)
Screw-in design
Suitable for right side and left side locking
Protective ground connection according to DIN EN 61439-1
Shock-proof and vibration-proof with integrated elongated barrel according to DIN 18252 (EN1303)

Screwable
The key can be extracted in both positions
Grounding through toothed lock washe

Easy assembly through simple pushing in this part.
The installed spring keeps the closure in locked position.
Locking by simply pushing the door or flap.
