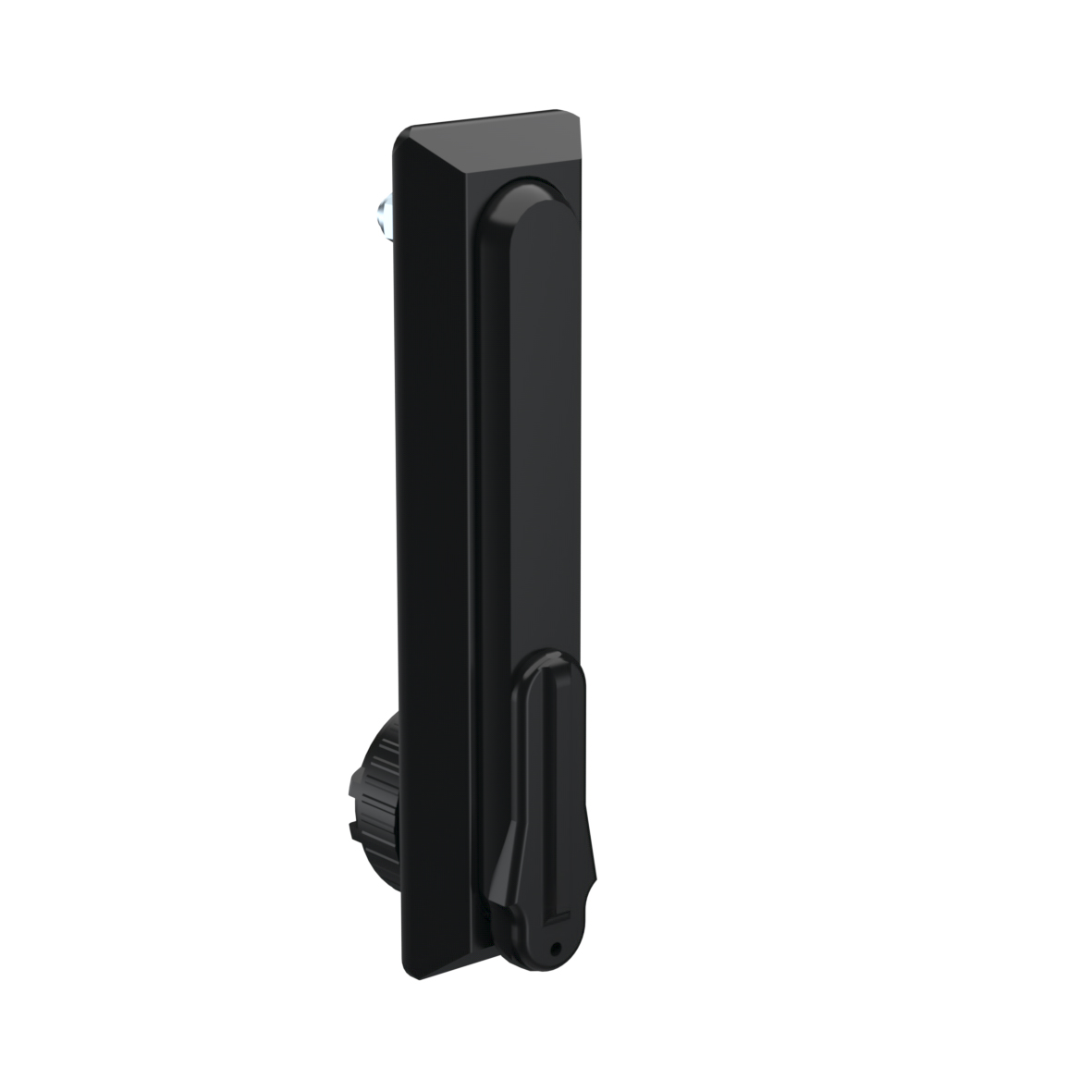

3070-0901-20-00
Pivot lever can be sealed with leads
- Round mounting holes
- For latch locks
- With barrel cover which can be sealed with leads
- Max. type rating IP65
Product description
Pivot lever for cabinet doors, can be mounted at right or left side.
The type rating is dependent on the mounting position, max. possible type rating IP65.
Prepared for mounting of an elongated barrel to DIN 18252, length = 40 mm /1.57”.
The lockable lever is countersunk in closed position. To unlock, swing the lever upwards.
Technical data
-
Article number: 3070-0901-20-00
-
Material: Pivot lever black PA
Galvanized sheet steel mounting hardware -

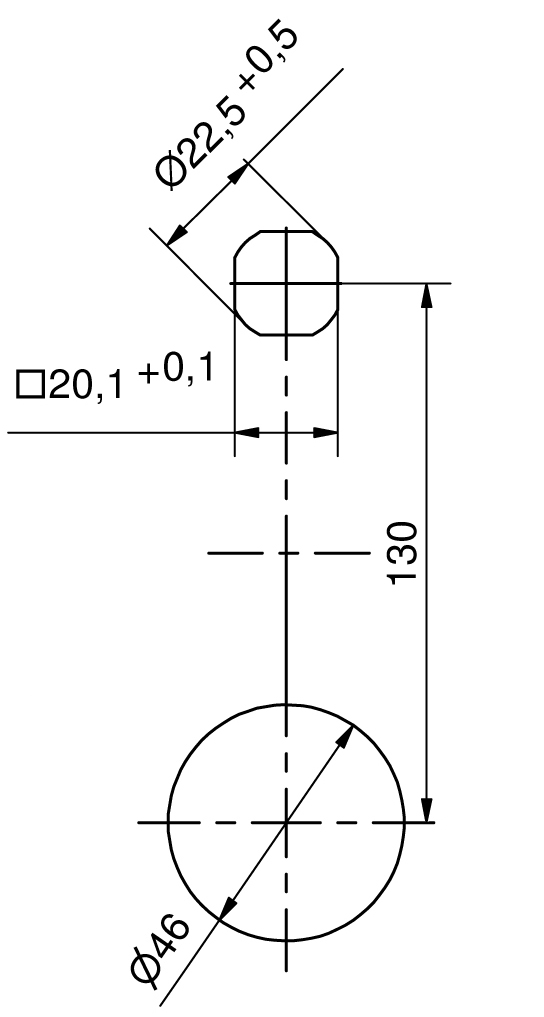

Version: Round mounting hole with hole spacing 130 mm/5.12”
-
TUERBLECHSTAERKE_DICT: maximum 3.0 mm/0,12"
-
Protection class: IP65
-
Closing: Prepared for elongated barrel, dummy plugs, see accessories
- 1 pivot lever with mounting hardware and seals.
3070-0902-05-00
Profile half cylinder actuation by push-button
Material
zinc die-casting
Surface
chrome-plated
CAD data and other illustrations:
