3080-0220-88-05

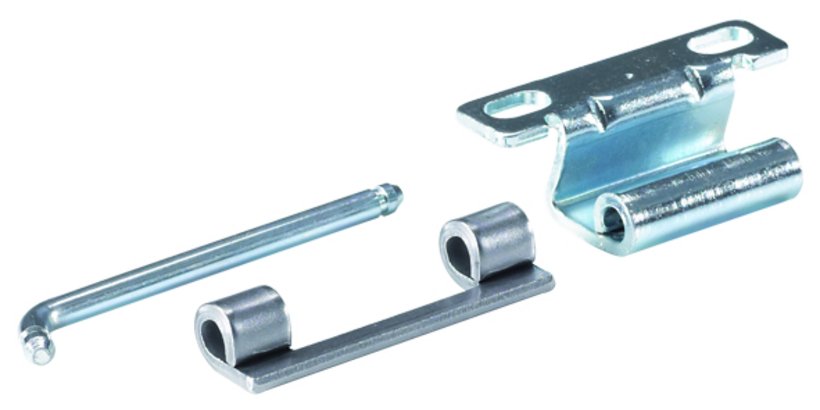

Hinge 120°, Z-shaped, detachable
- Fixation on frame connector: for screwing or welding
- Fixation on door: for welding
- For overlaying doors
Product description
Internal hinge.
Applicable on te right and on the left.
Opening angle of door 120°.
Technical data
-
Article number: 3080-0220-88-05
-
Material: Stainless steel no. 1.4301
-
Surface: Unfinished
Notice
- Hinge pin with safety disk DIN 6799 size 4, can be protected from falling out. Safety disk is not contained in scope of delivery. Hinge for a 4 mm higher door splay on request.
- 1 hinge with hinge pin.

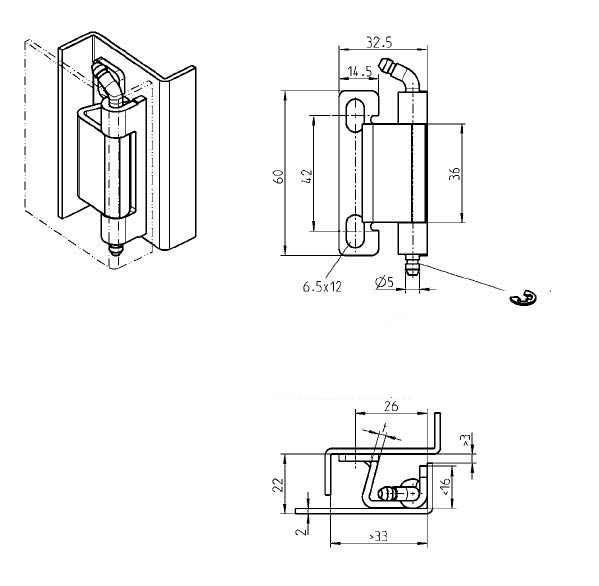

CAD data and other illustrations:
