Concealed hinges

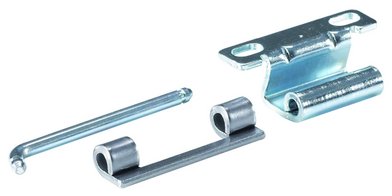

Hinge 120°, Z-shaped, detachable

Internal hinge.
Applicable on te right and on the left.
Opening angle of door 120°.

			Remember
3080-0220-88-03	Sheet steel	untreated
3080-0220-88-05	Stainless steel no. 1.4301	Unfinished

Hinge 120°, L-shaped, detachable

Internal hinge.
Applicable on the right and on the left.
Opening angle of door 120°.

			Remember
3080-0220-69-00	Sheet steel	untreated
3080-0220-69-05	Stainless steel no. 1.4301	Unfinished

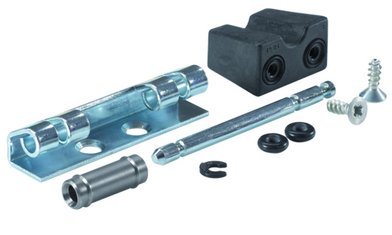

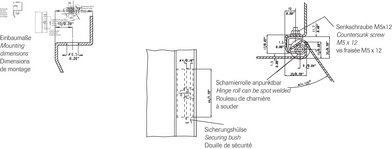

Hinge 120°, with weldable socket, detachable

Applicable on the right and on the left.
Opening angle of door 120°.
For door height 15 mm and frame connector width starting from 20 mm.
By pulling the hinge pin the door can be detached. The hinge pin is protected from falling out.

Art No.	Material and Surface	Remember
3080-7215-20-05	hinge mounting, pin and screws: glavanized steel weldable socket: steel raw mounting block: polyamide

Hinge 125°, with weldable socket, detachable

Applicable on the right and on the left.
Opening angle of door 125°.
For door height 15 mm and frame connector width starting from 20 mm.
Hinge pin is protected from falling out.

Art No.	Material and Surface	Remember
3080-0216-06-03	hinge mounting: glavanized steel weldable socket: steel raw

Pin hinge for clipping in

Assembly will be effected by simple clipping in into installation opening
Applicbale on bottom and top
Quick and easy assembly and disassembly of the door by resilient pin
Opening angle of door 110° and door gap of 2.5 mm (see technical information)
Only suitable for light doors

Art No.	Remember
3080-7245-10-00
