3080-7215-20-05
Hinge 120°, with weldable socket, detachable
- Fixation on frame connector: for screwing on
- Fixation on door: for spotting on
Product description
Applicable on the right and on the left.
Opening angle of door 120°.
For door height 15 mm and frame connector width starting from 20 mm.
By pulling the hinge pin the door can be detached. The hinge pin is protected from falling out.
Technical data
-
Article number: 3080-7215-20-05
-
Material and surface: hinge mounting, pin and screws: glavanized steel
weldable socket: steel raw
mounting block: polyamide
Notice
- The door has to be detached if a small gap (approx. 2.5 mm) between door and frame is desired.

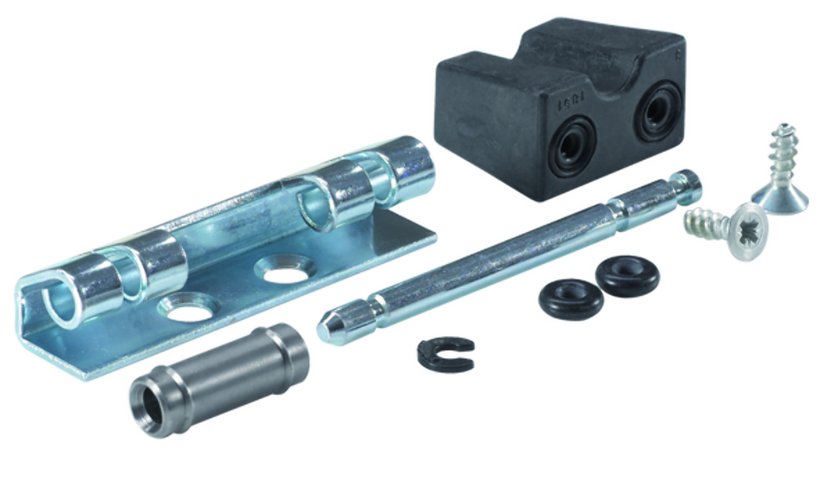

- 1 hinge consisting of: hinge mounting, weldable socket, hinge pin, mounting block, O-shaped ring, circlip and 2 screws.

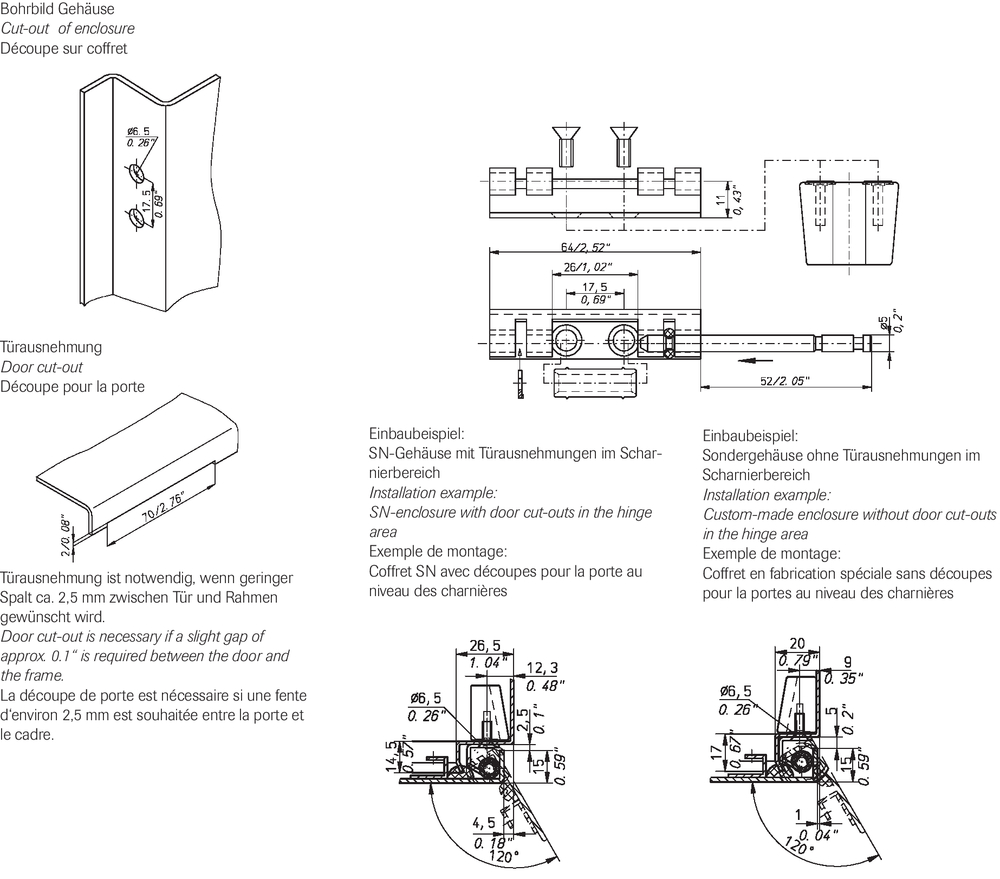

CAD data and other illustrations:
