3080-7245-10-00

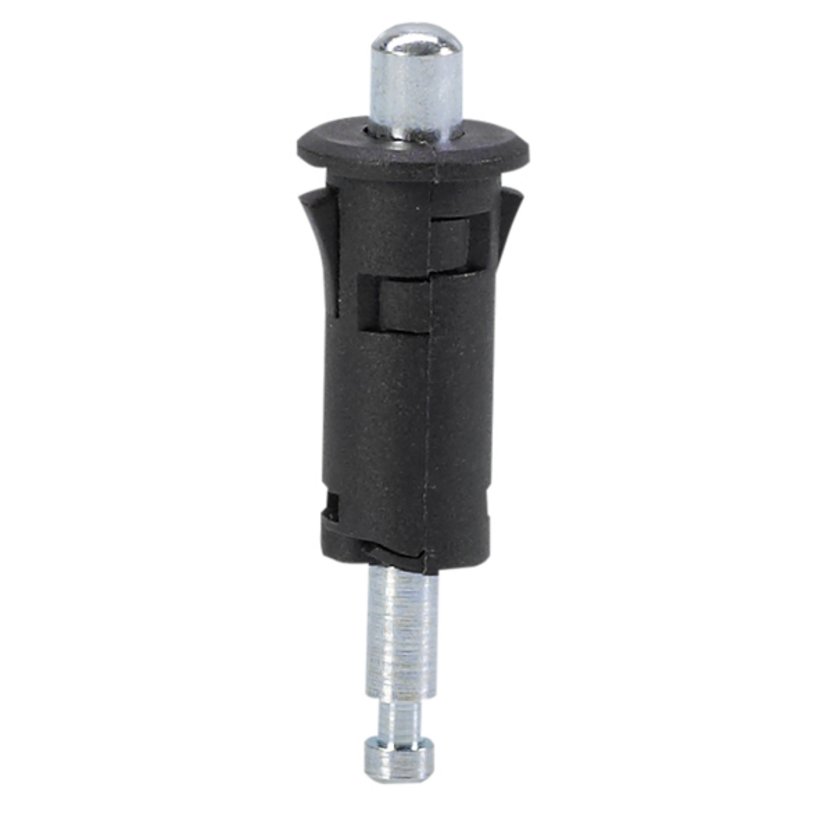

Pin hinge for clipping in
- Fixation on frame connector: for clipping in
- Fixation on door: by cicking into placeof the resilient pin
- Small space requirements
- Quick assembly
Product description
Assembly will be effected by simple clipping in into installation opening
Applicbale on bottom and top
Quick and easy assembly and disassembly of the door by resilient pin
Opening angle of door 110° and door gap of 2.5 mm (see technical information)
Only suitable for light doors
Technical data
-
Article number: 3080-7245-10-00
-
For sheet thickness: 1,4 - 1,6 mm
-
Material and surface: Enclosure: polyamide black
Pin: galvanized steel
Spring: stainless steel
- 1 hinge

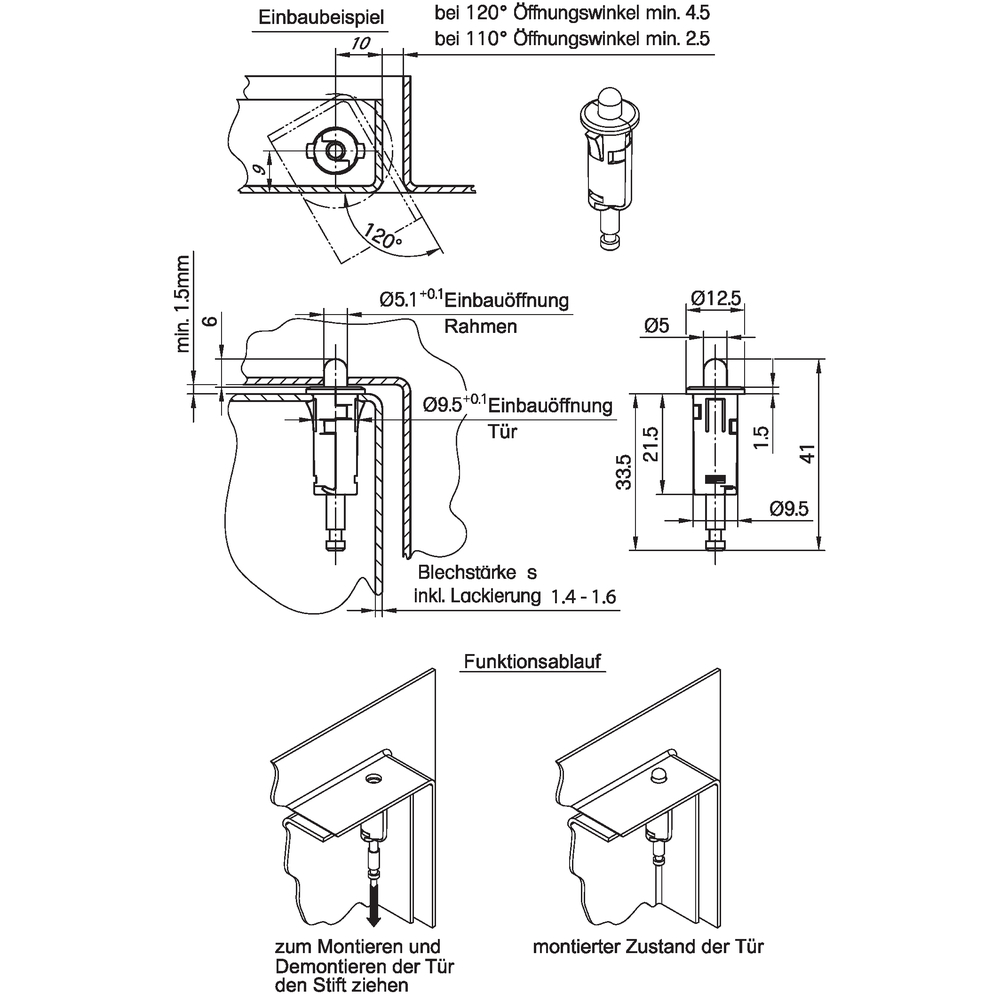

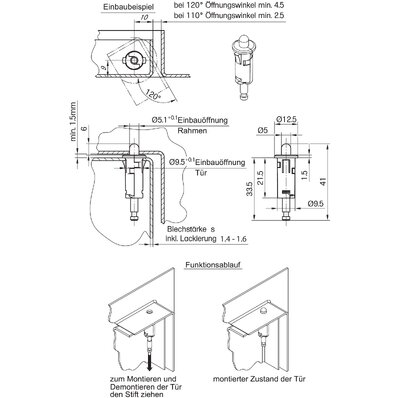

CAD data and other illustrations:
