3080-9220-10-03

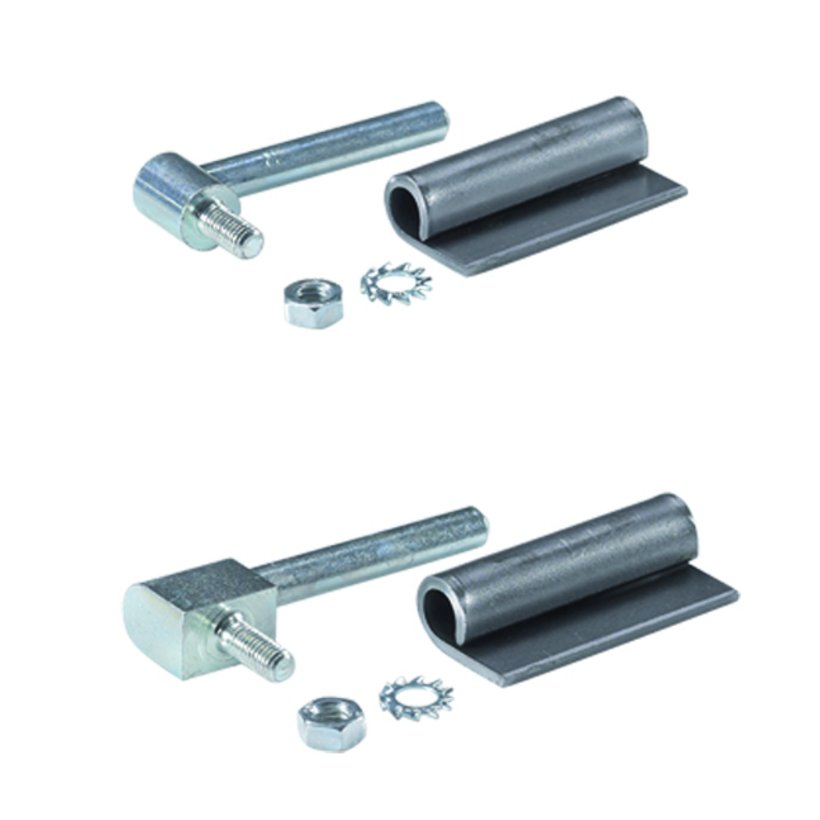

Hinge with hinge belt, detachable
- Fixation on frame connector: for screwing on
- Fixation on door: for spotting on
- For overlaying doors
Product description
External hinge
Technical data
-
Article number: 3080-9220-10-03
-
Material: Sheet steel
-
Surface: Galvanized
-
Material and surface: of axis: steel nickel-plated; nuts and serrated lock washer: galvanized steel
-
Hinge bearing from: round material
-
Thread length L: 10 mm
-
Door opening angle: 165°
Notice
- You will find single components at Accessories Hinges
- 1 set with 20 hinges with fixing material

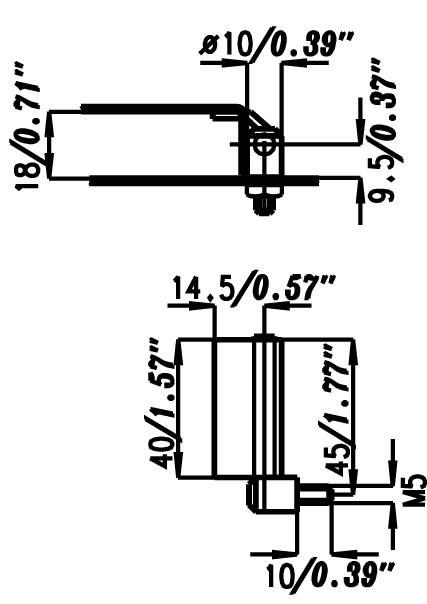

CAD data and other illustrations:
