exterior hinges

Hinge 90° - 180°, angled

Universally applicable powder coated hinge with several mounting options.
Opening angle depending on the mounting type from 90° up to max. 180°.

Art No.	Material	Surface	Remember
3080-0214-00-03	zinc die-casting	black

Hinge 90-180°, straight

Universally applicable powder coated hinge with several mounting options.
Opening angle depending on the mounting type from 90° up to max. 180°.

Art No.	Material	Surface	Remember
3080-0213-00-04	zinc die-casting	black

Screw-on hinge 120°

The external hinge can be bolted to the body and the door.
Universal application.
Easy and quick mounting.

		Remember
2408-7202-13-04	hinge: zinc die-casting, chrome-plated mounting hardware: stainless steel hinge pin: hardened steel
2408-7202-13-07	hinge: zinc die-casting, black galvanized mounting hardware: galvanized sheet steel hinge pin: hardened steel

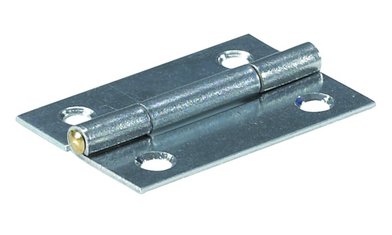

Straight Screw-On Hinge 180°

Universaly applicable hinge
Fixation of the belts by screws

Art No.	Material	Surface	Remember
1201-0601-00-62	Sheet steel	Galvanized

Hinge 180°

Door thickness max. 4 mm
Attachment to cabinet (2x M6)
Attachment to door (2x M6), required drillings 2x ø 10 mm

				Remember
3080-7218-95-33	for doors hinged to the left side	zinc die-casting	black powder coated
3080-7218-95-43	for doors hinged to the left side	zinc die-casting	black powder coated

Hinge 180°, detachable

Fixation on frame connector: for screwing on.
Fixation on door: by splint pin.


3080-7201-10-10	Plastic	M5
3080-7215-16-10	Plastic	M6
3080-7201-11-10	Plastic	M5
3080-7220-16-10	Plastic	M6
3080-7201-10-23	zinc die-casting	M5
3080-7215-16-23	zinc die-casting	M6
3080-7201-11-23	zinc die-casting	M5
3080-7220-16-23	zinc die-casting	M6
3080-7215-16-05	Stainless steel	M6
3080-7220-16-05	Stainless steel	M6

Hinge 180°, for overlaying doors

External hinge for door heights starting from 20 mm.
The version with thread M8 is detachable.

Art No.	Thread	Material	Surface	Remember
3080-0220-39-00	M6	Sheet steel	Galvanized

Hinge 180°, for inset doors

External hinge.

			Remember
3080-0220-45-00	Sheet steel	Galvanized
3080-0220-53-00	Sheet steel	Galvanized

Hinge with hinge belt

External hinge.

			Remember
3080-9215-10-01	10 mm
3080-9220-10-01	10 mm
3080-9215-40-01	40 mm
3080-9220-40-01	40 mm

Hinge 180° with weldable socket

External hinge
Hinge mounting from round steel

				Remember
3080-9201-10-01	Sheet steel	Galvanized	10 mm
3080-9201-40-01	Sheet steel	Galvanized	40 mm

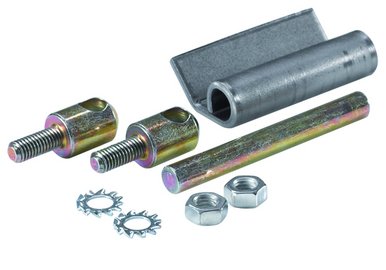

Hinge with hinge belt, detachable

External hinge


3080-9215-10-02	Sheet steel	Galvanized	10 mm	flat material
3080-9220-10-02	Sheet steel	Galvanized	10 mm	flat material
3080-9215-40-02	Sheet steel	Galvanized	40 mm	flat material
3080-9220-40-02	Sheet steel	Galvanized	40 mm	flat material
3080-9215-10-03	Sheet steel	Galvanized	10 mm	round material
3080-9220-10-03	Sheet steel	Galvanized	10 mm	round material

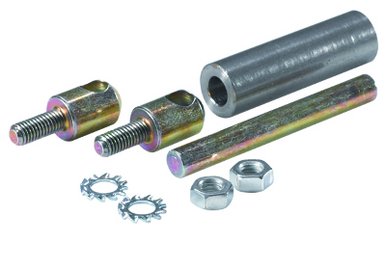

Hinge with weldable socket, detachable

External hinge.


3080-9202-10-02	Sheet steel	Galvanized	10 mm	flat material
3080-9202-40-02	Sheet steel	Galvanized	40 mm	flat material
3080-9200-05-00	Sheet steel	Galvanized	10 mm	round material

External joint for aluminum enclosures

External joint (hinge) for mounting covers of aluminum housings type 2374.
Suitable for wall thickness 4-5 mm.

Art No.	Material	Remember
2370-7801-00-00	Die-cast aluminum

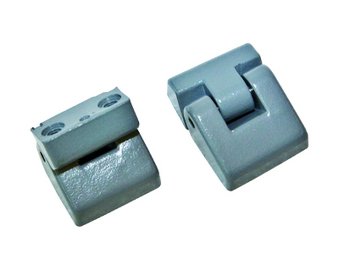

External joint for Polyamide boxes PC and ABS

Favorable external joint from thermoplastic for a hinged mounting of flaps or lids.

Art No.	Material	Remember
2360-7802-00-00	Thermoplastic
