3080-9220-40-01

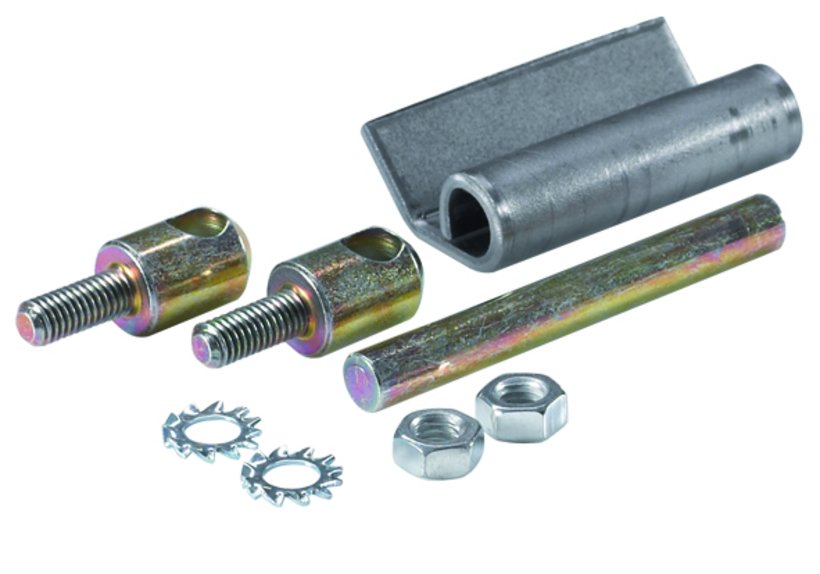

Hinge with hinge belt
- Fixation on frame connector: for screwing on
- Fixation on door: for spotting on
- For overlaying doors
Product description
External hinge.
Technical data
-
Article number: 3080-9220-40-01
-
Material: Sheet steel
-
Surface: Galvanized
-
Material and surface: of axis: steel nickel-plated
disks: brass nickel-plated
threaded pin, nuts and serrated lock washer: steel galvanized -
Thread length L: 40 mm
-
Door opening angle: 165°
Notice
- You will find single components at Accessories Hinges
- 1 set with 20 hinges and fixing material.
