0376-1201-51-11

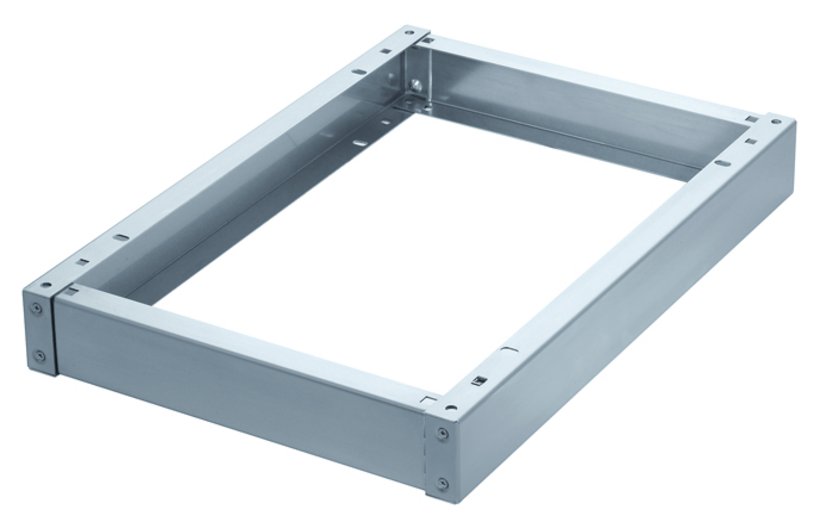

100 mm / 3.94" high base, only for H370 cabinets (flush at the rear side)
- For free-standing single and ganged-together modular cabinets
- Rugged U-profiles
- High lifting capacity
Product description
Base for installation under cabinets.
For ganged-together modular H375 cabinets the side panels are not installed to get a continuous room for cable distribution.
Technical data
-
Article number: 0376-1201-51-11
-
Dimensions: suitable for width : 1200 mm suitable for depth : 500 mm
-
Variant: 47.24" x X x 19.69"
-
Surface: Externally brushed
-
Material: Stainless steel no. 1.4301
-
Base dimension (s): 430 mm
-
Sheet thickness: 2 mm
-
Base depth (t): 475 mm
Notice
- The back of the bases is flush with the cabinets.From W-600mm23.62" cable entry with brush strip (clearance 270x48mm/10.63x1.89") is available upon request.
0370-1218-50-00
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0370-1218-50-10
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0370-1220-50-00
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
2000 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0370-1220-50-10
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
2000 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
Mounting instructions:
CAD data and other illustrations:
