Bases

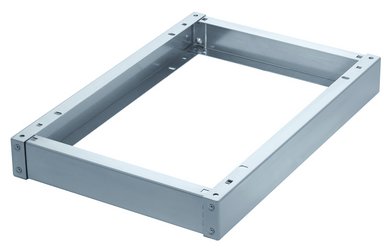

Bases height 100 mm/3.94" for cabinets type H370 and H375

Base for installation under cabinets.
For ganged-together modular H375 cabinets the side panels are not installed to get a continuous room for cable distribution.


0376-6001-40-11	600 mm	400 mm	Stainless steel no. 1.4301	350 mm
0376-8001-40-11	800 mm	400 mm	Stainless steel no. 1.4301	350 mm
0376-1001-40-11	1000 mm	400 mm	Stainless steel no. 1.4301	350 mm
0376-1201-40-11	1200 mm	400 mm	Stainless steel no. 1.4301	350 mm
0376-1001-50-11	1000 mm	500 mm	Stainless steel no. 1.4301	450 mm
0376-1201-50-11	1200 mm	500 mm	Stainless steel no. 1.4301	450 mm
0376-1201-60-11	1200 mm	600 mm	Stainless steel no. 1.4301	550 mm
0376-6001-50-11	600 mm	500 mm	Stainless steel no. 1.4301	450 mm
0376-8001-50-11	800 mm	500 mm	Stainless steel no. 1.4301	450 mm
0376-6001-60-11	600 mm	600 mm	Stainless steel no. 1.4301	550 mm
0376-8001-60-11	800 mm	600 mm	Stainless steel no. 1.4301	550 mm

Bases height 3.94" for H390, H395 abd PC2096

Base for installation under cabinets.
For ganged-together modular H395 cabinets the side panels are not installed to get a continuous room for cable distribution.


0396-6001-40-17	600 mm	400 mm	Sheet steel	350 mm
0396-8001-40-17	800 mm	400 mm	Sheet steel	350 mm
0396-1001-40-17	1000 mm	400 mm	Sheet steel	350 mm
0396-1201-40-17	1200 mm	400 mm	Sheet steel	350 mm
0396-6001-50-17	600 mm	500 mm	Sheet steel	450 mm
0396-8001-50-17	800 mm	500 mm	Sheet steel	450 mm
0396-1001-50-17	1000 mm	500 mm	Sheet steel	450 mm
0396-1201-50-17	1200 mm	500 mm	Sheet steel	450 mm
0396-6001-60-17	600 mm	600 mm	Sheet steel	550 mm
0396-8001-60-17	800 mm	600 mm	Sheet steel	550 mm
0396-1001-60-17	1000 mm	600 mm	Sheet steel	550 mm
0396-1201-60-17	1200 mm	600 mm	Sheet steel	550 mm
0396-6001-80-17	600 mm	800 mm	Sheet steel	750 mm
0396-8001-80-17	800 mm	800 mm	Sheet steel	750 mm
0396-6001-60-37	600 mm	600 mm	Sheet steel	550 mm
0396-6001-80-37	600 mm	800 mm	Sheet steel	750 mm
0396-8001-60-37	800 mm	600 mm	Sheet steel	550 mm
0396-8001-80-37	800 mm	800 mm	Sheet steel	750 mm

Base 100 mm high with brush strip for cabinets H390, H395 and PC2096

Base for installation under H390 H390, H395 and PC2096 cabinets. For modular assembly under H395 cabinets, the side panels are not installed to get a continuous cable chamber.
All panels are detachable, one panel with cable entry (brush strip).

Art No.	Dimensions	Material	Type	Remember
0396.6001.60.27	Suitable for width: 600 mm/23,62" Suitable for depth: 600/625 mm 23,62"/24,61"	Sheet steel	with brush strip

100 mm / 3.94" high base, only for H370 cabinets (flush at the rear side)

Base for installation under cabinets.
For ganged-together modular H375 cabinets the side panels are not installed to get a continuous room for cable distribution.


0376-6001-41-11	600 mm	400 mm	Stainless steel no. 1.4301	375 mm
0376-8001-41-11	800 mm	400 mm	Stainless steel no. 1.4301	375 mm
0376-1001-41-11	1000 mm	400 mm	Stainless steel no. 1.4301	375 mm
0376-1201-41-11	1200 mm	400 mm	Stainless steel no. 1.4301	375 mm
0376-6001-51-11	600 mm	500 mm	Stainless steel no. 1.4301	475 mm
0376-8001-51-11	800 mm	500 mm	Stainless steel no. 1.4301	475 mm
0376-1001-51-11	1000 mm	500 mm	Stainless steel no. 1.4301	475 mm
0376-1201-51-11	1200 mm	500 mm	Stainless steel no. 1.4301	475 mm
0376-6001-61-11	600 mm	600 mm	Stainless steel no. 1.4301	575 mm
0376-8001-61-11	800 mm	600 mm	Stainless steel no. 1.4301	575 mm
0376-1001-61-11	1000 mm	600 mm	Stainless steel no. 1.4301	575 mm
0376-1201-61-11	1200 mm	600 mm	Stainless steel no. 1.4301	575 mm

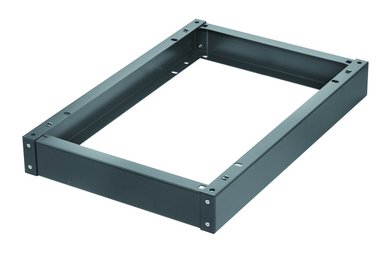

100 mm high base for H390 cabinets only (flush with rear side)

Base for installation under cabinets.


0396-6001-41-17	600 mm	400 mm	Sheet steel	375 mm
0396-8001-41-17	800 mm	400 mm	Sheet steel	375 mm
0396-1001-41-17	1000 mm	400 mm	Sheet steel	375 mm
0396-1201-41-17	1200 mm	400 mm	Sheet steel	375 mm
0396-1601-41-17	1600 mm	400 mm	Sheet steel	375 mm
0396-2001-41-17	2000 mm	400 mm	Sheet steel	375 mm
0396-6001-51-17	600 mm	500 mm	Sheet steel	475 mm
0396-8001-51-17	800 mm	500 mm	Sheet steel	475 mm
0396-1001-51-17	1000 mm	500 mm	Sheet steel	475 mm
0396-1201-51-17	1200 mm	500 mm	Sheet steel	475 mm
0396-6001-61-17	600 mm	600 mm	Sheet steel	575 mm
0396-8001-61-17	800 mm	600 mm	Sheet steel	575 mm
0396-1001-61-17	1000 mm	600 mm	Sheet steel	575 mm
0396-1201-61-17	1200 mm	600 mm	Sheet steel	575 mm

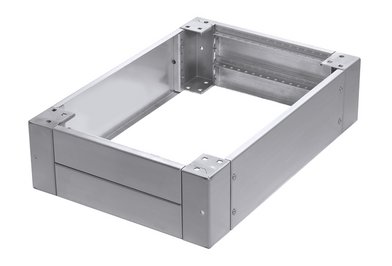

Base height 200 mm/7.87" for cabinets type H370 and H375

Base for installation under cabinets. For ganged-together modular H375 cabinets the side panels are not installed to get a continuous room for cable distribution.


0376.6002.40.11	600 mm	400 mm	Stainless steel no. 1.4301	350 mm
0376.8002.40.11	800 mm	400 mm	Stainless steel no. 1.4301	350 mm
0376.1002.40.11	1000 mm	400 mm	Stainless steel no. 1.4301	350 mm
0376.1202.40.11	1200 mm	400 mm	Stainless steel no. 1.4301	350 mm
0376.6002.50.11	600 mm	500 mm	Stainless steel no. 1.4301	450 mm
0376.8002.50.11	800 mm	500 mm	Stainless steel no. 1.4301	450 mm
0376.1002.50.11	1000 mm	500 mm	Stainless steel no. 1.4301	450 mm
0376.1202.50.11	1200 mm	500 mm	Stainless steel no. 1.4301	450 mm
0376.6002.60.11	600 mm	600 mm	Stainless steel no. 1.4301	550 mm
0376.8002.60.11	800 mm	600 mm	Stainless steel no. 1.4301	550 mm
0376.1002.60.11	1000 mm	600 mm	Stainless steel no. 1.4301	550 mm
0376.1202.60.11	1200 mm	600 mm	Stainless steel no. 1.4301	550 mm

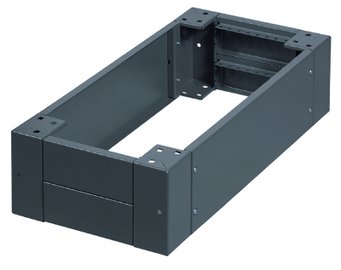

Bases height 7.87" for cabinets type H390 and H395

Bases for installation under cabinets.
Front & back pieces are removeable after assembly for easy access to underside of cabinet.
Two-level perforation on the inside for mounting of cable support rails. For ganged together cabinets side-pieces can be removed for end-to-end cable installations. Corner pieces are already pre-assembled with front and back pieces. Side pieces can be installed without tools.


0396.6002.40.17	600 mm	400 mm	Sheet steel Corner section: 2.5 mm Covers and cross sections: 1.5 mm	350 mm
0396.8002.40.17	800 mm	400 mm	Sheet steel Corner section: 2.5 mm Covers and cross sections: 1.5 mm	350 mm
0396.8502.40.17	850 mm	400 mm	Sheet steel Corner section: 2.5 mm Covers and cross sections: 1.5 mm	350 mm
0396.1002.40.17	1000 mm	400 mm	Sheet steel Corner section: 2.5 mm Covers and cross sections: 1.5 mm	350 mm
0396.1102.40.17	1100 mm	400 mm	Sheet steel Corner section: 2.5 mm Covers and cross sections: 1.5 mm	350 mm
0396.1202.40.17	1200 mm	400 mm	Sheet steel Corner section: 2.5 mm Covers and cross sections: 1.5 mm	350 mm
0396.4002.50.17	400 mm	500 mm	Sheet steel Corner section: 2.5 mm Covers and cross sections: 1.5 mm	450 mm
0396.6002.50.17	600 mm	500 mm	Sheet steel Corner section: 2.5 mm Covers and cross sections: 1.5 mm	450 mm
0396.8002.50.17	800 mm	500 mm	Sheet steel Corner section: 2.5 mm Covers and cross sections: 1.5 mm	450 mm
0396.1002.50.17	1000 mm	500 mm	Sheet steel Corner section: 2.5 mm Covers and cross sections: 1.5 mm	450 mm
0396.1202.50.17	1200 mm	500 mm	Sheet steel Corner section: 2.5 mm Covers and cross sections: 1.5 mm	450 mm
0396.4002.60.17	400 mm	600 mm	Sheet steel Corner section: 2.5 mm Covers and cross sections: 1.5 mm	550 mm
0396.6002.60.17	600 mm	600 mm	Sheet steel Corner section: 2.5 mm Covers and cross sections: 1.5 mm	550 mm
0396.8002.60.17	800 mm	600 mm	Sheet steel Corner section: 2.5 mm Covers and cross sections: 1.5 mm	550 mm
0396.1002.60.17	1000 mm	600 mm	Sheet steel Corner section: 2.5 mm Covers and cross sections: 1.5 mm	550 mm
0396.1202.60.17	1200 mm	600 mm	Sheet steel Corner section: 2.5 mm Covers and cross sections: 1.5 mm	550 mm
0396.6002.80.17	600 mm	800 mm	Sheet steel Corner section: 2.5 mm Covers and cross sections: 1.5 mm	750 mm
0396.8002.80.17	800 mm	800 mm	Sheet steel Corner section: 2.5 mm Covers and cross sections: 1.5 mm	750 mm
0396.6002.60.37	600 mm	600 mm	Sheet steel Corner section: 2.5 mm Covers and cross sections: 1.5 mm	550 mm
0396.6002.80.37	600 mm	800 mm	Sheet steel Corner section: 2.5 mm Covers and cross sections: 1.5 mm	750 mm
0396.8002.60.37	800 mm	600 mm	Sheet steel Corner section: 2.5 mm Covers and cross sections: 1.5 mm	550 mm
0396.8002.80.37	800 mm	800 mm	Sheet steel Corner section: 2.5 mm Covers and cross sections: 1.5 mm	750 mm

200 mm / 7.87" high base, only for H370 cabinets (flush at the rear side)

Base for installation under cabinets. For ganged-together modular H375 cabinets the side panels are not installed to get a continuous room for cable distribution.


0376.6002.41.11	600 mm	400 mm	Stainless steel no. 1.4301	375 mm
0376.8002.41.11	800 mm	400 mm	Stainless steel no. 1.4301	375 mm
0376.1002.41.11	1000 mm	400 mm	Stainless steel no. 1.4301	375 mm
0376.1202.41.11	1200 mm	400 mm	Stainless steel no. 1.4301	375 mm
0376.6002.51.11	600 mm	500 mm	Stainless steel no. 1.4301	475 mm
0376.8002.51.11	800 mm	500 mm	Stainless steel no. 1.4301	475 mm
0376.1002.51.11	1000 mm	500 mm	Stainless steel no. 1.4301	475 mm
0376.1202.51.11	1200 mm	500 mm	Stainless steel no. 1.4301	475 mm
0376.6002.61.11	600 mm	600 mm	Stainless steel no. 1.4301	575 mm
0376.8002.61.11	800 mm	600 mm	Stainless steel no. 1.4301	575 mm
0376.1002.61.11	1000 mm	600 mm	Stainless steel no. 1.4301	575 mm
0376.1202.61.11	1200 mm	600 mm	Stainless steel no. 1.4301	575 mm

Base height 7.87" only for cabinets type H390 (flush with rear side)

Bases for installation under cabinets. Two-level perforation on the inside for mounting of cable support rails. For ganged together cabinets side-pieces can be removed for end-to-end cable installations. Corner pieces are already pre-assembled with front and back pieces. Side pieces can be installed without tools. Front & back pieces are removeable after assembly for easy access to underside of cabinet.


0396.6002.41.17	600 mm	400 mm	Sheet steel	375 mm
0396.8002.41.17	800 mm	400 mm	Sheet steel	375 mm
0396.1002.41.17	1000 mm	400 mm	Sheet steel	375 mm
0396.1202.41.17	1200 mm	400 mm	Sheet steel	375 mm
0396.1602.41.17	1600 mm	400 mm	Sheet steel	375 mm
0396.2002.41.17	2000 mm	400 mm	Sheet steel	375 mm
0396.6002.51.17	600 mm	500 mm	Sheet steel	475 mm
0396.8002.51.17	800 mm	500 mm	Sheet steel	475 mm
0396.1002.51.17	1000 mm	500 mm	Sheet steel	475 mm
0396.1202.51.17	1200 mm	500 mm	Sheet steel	475 mm
0396.1602.51.17	1600 mm	500 mm	Sheet steel	475 mm
0396.2002.51.17	2000 mm	500 mm	Sheet steel	475 mm
0396.6002.61.17	600 mm	600 mm	Sheet steel	575 mm
0396.8002.61.17	800 mm	600 mm	Sheet steel	575 mm
0396.1002.61.17	1000 mm	600 mm	Sheet steel	575 mm
0396.1202.61.17	1200 mm	600 mm	Sheet steel	575 mm
0396.1602.61.17	1600 mm	600 mm	Sheet steel	575 mm
0396.2002.61.17	2000 mm	600 mm	Sheet steel	575 mm

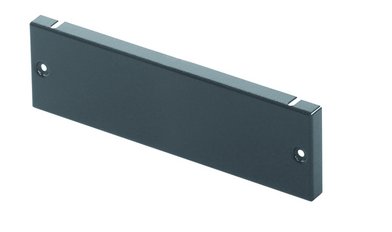

Base cover 100 mm/3.94" high

Additional option for 200 mm high base covers


0396-4002-01-07	400 mm	Sheet steel	1.5 mm
0396-6002-01-07	600 mm	Sheet steel	1.5 mm
0396-8002-01-07	800 mm	Sheet steel	1.5 mm
0396-1002-01-07	1000 mm	Sheet steel	1.5 mm
0396-1202-01-07	1200 mm	Sheet steel	1.5 mm

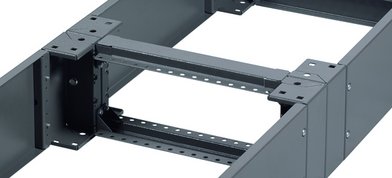

Base Crossbar

Crossbar for upper/lower mounting in 200 mm high bases
For modular assembly
For bases W-1600/2000


0396-0000-40-07	400 mm	Sheet steel	Base H-200 mm high
0396-0000-50-07	500 mm	Sheet steel	Base H-200 mm high
0396-0000-60-07	600 mm	Sheet steel	Base H-200 mm high
0396-0000-80-07	800 mm	Sheet steel	Base H-200 mm high
0396-0000-41-07	400 mm	Sheet steel	Base H-200 mm high
0396-0000-51-07	500 mm	Sheet steel	Base H-200 mm high
0396-0000-61-07	600 mm	Sheet steel	Base H-200 mm high

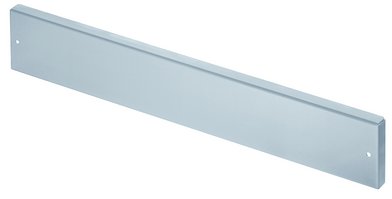

Base cover 100 mm/3.94" high for cabinets type H375

Option for 7.87" high vertical panels.


0376-6002-01-01	600 mm	Stainless steel no. 1.4301
0376-8002-01-01	800 mm	Stainless steel no. 1.4301
0376-1002-01-01	1000 mm	Stainless steel no. 1.4301
0376-1202-01-01	1200 mm	Stainless steel no. 1.4301

Mobile base

Suitable for 600 mm wide cabinets, 600 and 800 mm deep.

					Remember
0396-6000-60-27	600 mm	4 swing casters	approx. 529 lbs	790 mm
0396-6000-80-27	800 mm	4 swing casters	approx. 529 lbs	990 mm

Mobile base

Suitable for 23.62" wide cabinets, 23.62" and 31.50" depth

				Remember
0396-6010-60-27	600 mm	Front swivel casters, rear fixed casters
0396-6010-80-27	800 mm	Front swivel casters, rear fixed casters

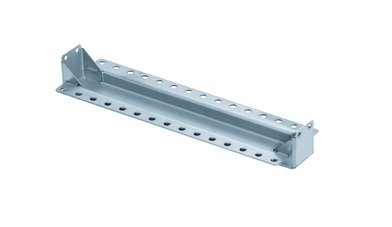

Lateral base rail type 0376

Lateral rail for top/bottom assembly in 200 mm high bases


0376-0000-40-01	400 mm	Stainless steel no. 1.4301	for H375
0376-0000-50-01	500 mm	Stainless steel no. 1.4301	for H375
0376-0000-60-01	600 mm	Stainless steel no. 1.4301	for H375
0376-0000-80-01	800 mm	Stainless steel no. 1.4301	for H375
0376-0000-41-01		Stainless steel no. 1.4301	for H370
0376-0000-51-01		Stainless steel no. 1.4301	for H370
0376-0000-61-01		Stainless steel no. 1.4301	for H370
