0396-7020-40-67

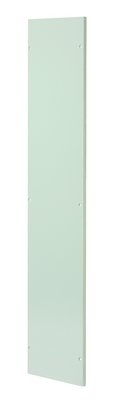

Side panel for H395
- For installation of outward side panels of modular cabinets H395
Product description
Ground per DIN EN 60439-1
With foamed-in gasket
Mounting with Torx screws
Technical data
-
Article number: 0396-7020-40-67
-
Dimensions: Width : 350 mm Height : 1996 mm suitable for height : 2000 mm suitable for depth : 400 mm
-
Variant: X x 78.74" x 15.75"
-
Surface: Powder coating RAL 7035, texture finish
-
Material: Sheet steel
-
Weight: 8.7 kg
-
Sheet thickness: 1.5 mm
-
HS: 1996 mm
-
TS: 350 mm
- 1 set of side panels with foamed rubber gasket and mounting hardware.
0395-0120-40-07
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-0120-40-17
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-1020-40-07
Modular cabinets Sheet steel H395, single door
Width
1000 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-1020-40-17
Modular cabinets Sheet steel H395, single door
Width
1000 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-1120-40-07
Modular cabinets Sheet steel H395, double door
Width
1100 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-1220-40-17
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-6020-40-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6020-40-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8020-40-07
Modular cabinets Sheet steel H395, single door
Width
800 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8020-40-17
Modular cabinets Sheet steel H395, single door
Width
800 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8520-40-07
Modular cabinets Sheet steel H395, single door
Width
850 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
Mounting instructions:
CAD data and other illustrations:
