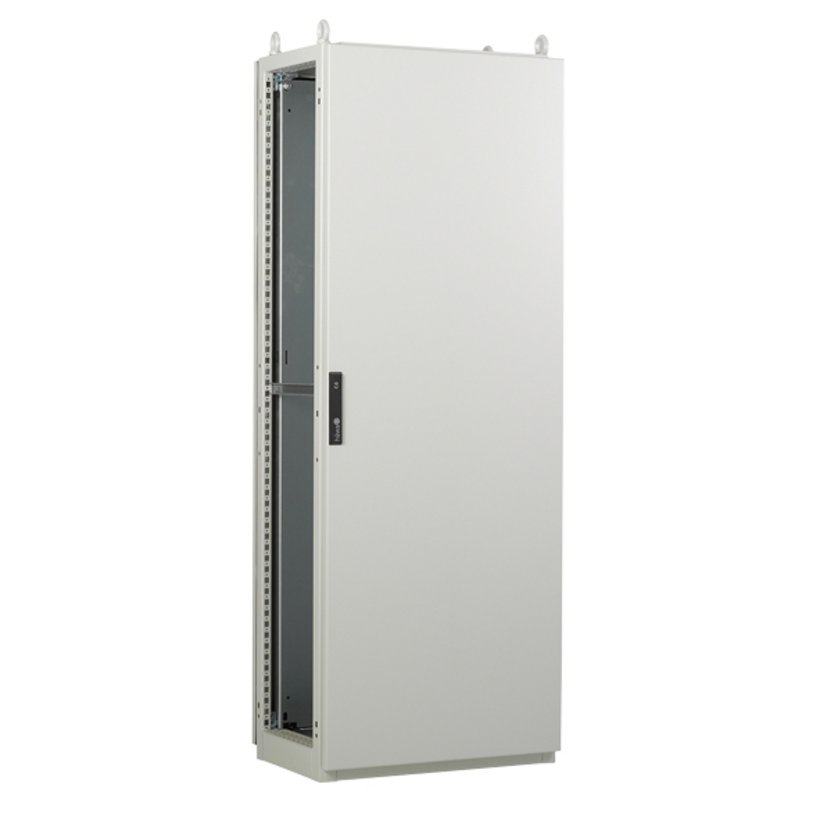

Modular cabinets Sheet steel H395, single door
- Sheet steel
- Modular cabinet
- Depth 400 mm
- Protection class IP/Nema/Type: see Technical data
- System accessories permit modular extension
Product description
Modular cabinets with single or double door design. Available with or without mounting plate.
Protective grounding according to DIN EN 61439-1, M8x20 studs on all movable and detachable parts as well as on top and bottom frame areas, mounting plate with ground connector screw and cable entry plates with drilling.
Flanged edges prevent dust and water from entering when opening the door
Doors with seamlessly foamed gasket can be mounted either at left or right side, standard delivery includes doors hinged on right side.
Opening angle 120° can be modified to 180°.
Locking: Bar lock standard
with 3 mm double mandrel bolt
Bolted reinforcement and attachment frame of solid square tubes perforated with 4.5 mm holes every 25 mm.
Top plate can be removed, with 4 lifting eyes M12 to DIN 580
Bottom with three-part, adjustable cable entry plate and 10.6 mm mounting holes.
C-flanged mounting plate, adjustable to depth every 25 mm; quick and easy mounting with häwa locking brackets; continuous mounting surface in second rearmost position
Technical data
-
Article number: 0395-8520-40-07
-
Protective conductor connection: according to DIN EN 61439-1
-
Protection class: IP55, IP56 optional
Type 1, 12, 3R optional -
Material: Sheet steel
-
Authorization: cULus
-
Dimensions: Width : 850 mm Height : 2000 mm Depth : 400 mm
-
Weight: 90.5 kg
-
Cabinet type: Modular cabinets
-
Variant: without mounting plate
-
Surface: Powder coating RAL 7035, texture finish
-
Sheet thickness: Door: 2 mm(ga)
Roof angle: 2 mm(ga)
Carrier angle ground group: 2,5 mm(ga)
Frame/Body: 2 mm(ga)
Rear wall: 1,5 mm(ga)
Notice
- Rear side with hinged door or other modifications upon request.
- Please refer to base drawings for base mounting dimensions.
- IP56 is achieved when used together with enhancement kit type 0396-7056-01-00 for side panels.
- By mounting the RainKit (upon request) UL Type 3R is additionally achieved.
- Cabinet complete with front hinged door, bolted rear panel, lifting eyes, top plate, cable entry plate and 1 key.
2070-9102-34-00
Clip-nuts
Thread
M4
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9102-35-00
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9102-35-02
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9102-35-03
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9102-36-00
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9102-36-02
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9102-36-03
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9102-45-00
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
0,9 - 1,9 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
2070-9102-45-01
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
1,5 - 2,0 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
2070-9102-46-00
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
0,9 - 1,9 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
2070-9102-46-01
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,5 - 2,0 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
2070-9102-46-02
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,8 - 2,9 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
2070-9102-46-03
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
2070-9202-35-00
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9202-35-02
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9202-35-03
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9202-36-00
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9202-36-02
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9202-36-03
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9203-36-03
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,8 - 3,2 mm
For cut-out size
12,3x12,3 mm/0,48x0,48"
Variante
without grounding pin
3080-7109-87-00
Door opening limiter for H390/H395, H370/H375 cabinets
Surface
Galvanized
Material
Sheet steel
Suitable for console type
H390/H395 and H370/H375 from door width 500 mm
3080-9042-01-07
Fluorescent Lamp, Ready for Connection
Operating voltage
AC 220-240V, 50/60 Hz
Version
Door switch
Fixing type
Screw mounted version
Socket
Schuko CEE 7/3 load: Max. 16 A
3080-9042-04-07
Fluorescent Lamp, Ready for Connection
Operating voltage
AC 220-240V, 50/60 Hz
Version
Door switch
Fixing type
Screw mounted version
Socket
Schuko CEE 7/3 load: Max. 16 A
3080-9042-60-37
Fluorescent Lamp, Ready for Connection
Operating voltage
AC 220-240V, 50/60 Hz
Version
Door switch
Fixing type
Screw mounted version
Socket
Schuko CEE 7/3 load: Max. 16 A

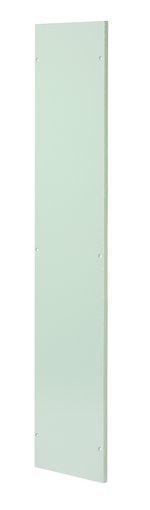

0396-7020-40-67
Side panel for H395
Suitable for height
2000 mm
Suitable for depth
400 mm
Material
Sheet steel
0396.8502.40.17
Bases height 7.87" for cabinets type H390 and H395
Suitable for width
850 mm
Suitable for depth
400 mm
Material
Sheet steel
Corner section: 2.5 mm
Covers and cross sections: 1.5 mm
Corner section: 2.5 mm
Covers and cross sections: 1.5 mm
Socket size
350 mm
3080-7041-61-95
Door Switch for Cabinets H3X0/H3X5
Contact
1 Normally open, 1 normally closed
Utilization category
AC-15, Ue/le 240V/3A
Rated operating voltage
Ue 240V
3080-0041-13-01
Door Contact Switch
Design
Change-over (co = closed open)
Mounting
Screw fixing M5
Connection
4-pole terminal, max. tightening torque 0.5 Nm
3080-0041-13-02
Door Contact Switch
Design
Opener (nc=normally closed)
Mounting
Screw fixing M5
Connection
4-pole terminal, max. tightening torque 0.5 Nm
