0396-7060-62-47

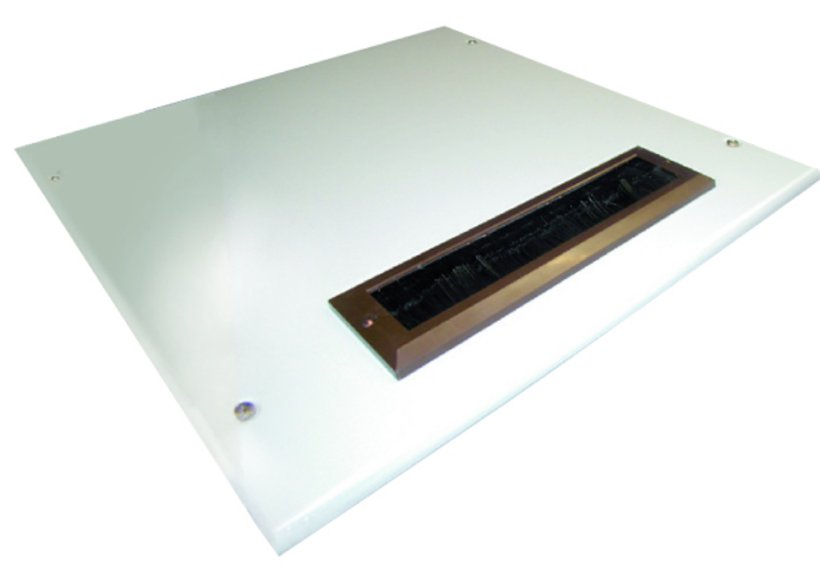

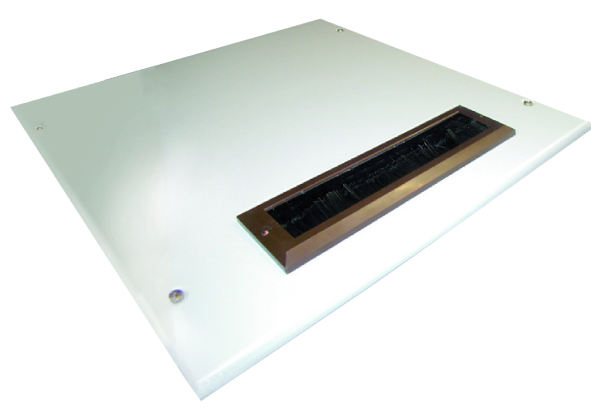

Top panels with brush strip
- Universal cable entry for PC-cabinet 2096
Product description
The brush strip enables an easy cable passage and protects against ingress of dust
Cut-out 272 x 48 mm, suitable for shockproof plug etc.
Protective ground connection: according to DIN EN 61439-1, 1 bolt M8 x 20
with seamlessly foamed seal
lateral design edge
secured with Torx screws
suitable for PC cabinet: W x D 600 x 600 mm
Technical data
-
Article number: 0396-7060-62-47
-
Dimensions: Width : 310 mm Height : 84 mm Depth : 12 mm suitable for width : 600 mm suitable for depth : 600 mm
-
Surface: Powder coating RAL 7035, texture finish
-
Material: Sheet steel 1,5 mm; 16 ga, brush strip: plastic brown
-
Inlet slot: 270 x 45 mm / 10,63 x 1,89 inch
-
Protective conductor connection: according to DIN EN 61439-1
- 1 top panel complete with mounting hardware
