PC-Cabinet 2096

2096-6016-60-07

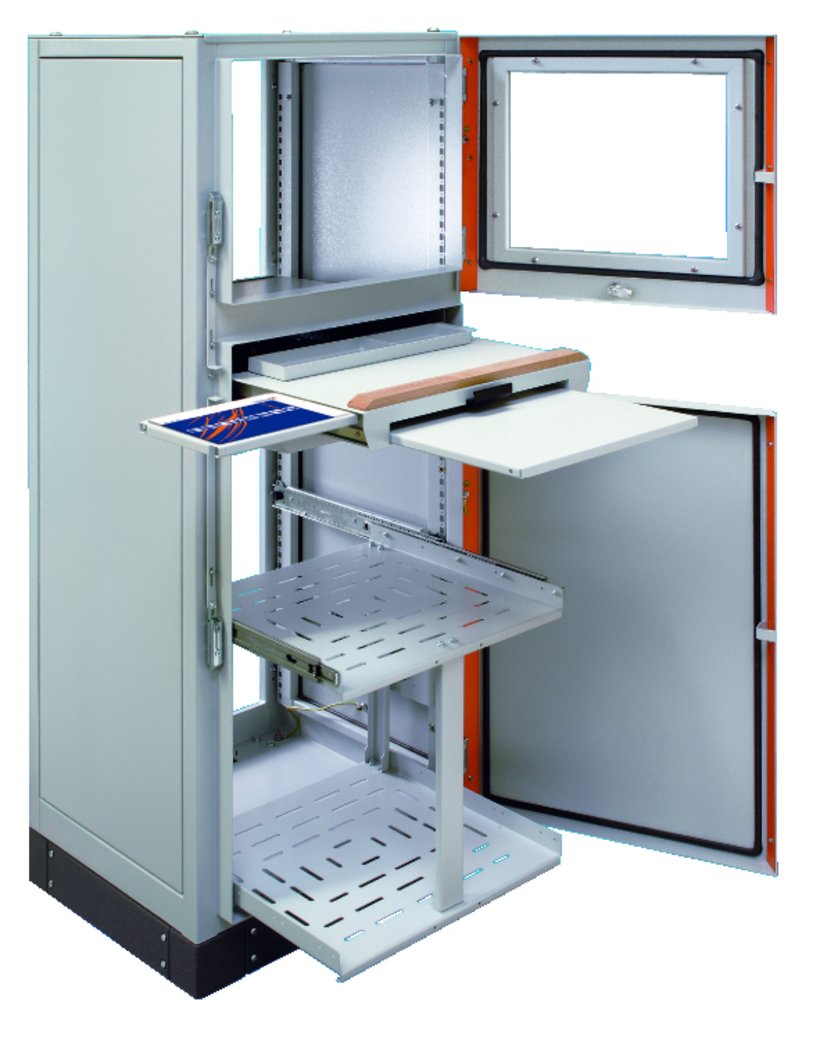

PC-Cabinet 2096

  • Free-standing
  • Protection class
  • Customizable through a variety of options

Product description

PC-cabinet with central disconnect locking-bar system of the whole front side. Viewing door for monitors up to 21“, 4:3 or 16:9. With wooden palm rest on pullout keyboard drawer.

Protective ground connection according to DIN EN 61439-1, M8x20 mm bolts in top, bottom, door and side panel. Mounting plate with drillings.

Doors and keyboard drawer with seamlessly foamed seal

Front doors standard stop on the right side, rear door stop change possible from right to left

Rear door with 120° opening angle, bar lock outside the sealing area

Lock: Front door with cylinder lock, rear door with standard bar lock, 3 mm double mandrel

Viewing door with PC-Lexan window, screen size 410 x 351 mm /16.15“ x 13.82“

Keyboard drawer, lockable, max. dimensions of keyboard L=500 x W=190 x H=50 mm/ L=19.69“ x W=7,48“ x H=1,97“ and with storage box

Keyboard drawer cover at rear, with cable entry and cable support

Internal side panels and detachable top, mounted from inside

Vertical rails with 25 mm hole pattern

Rear bottom with cable plate for plug/cable entry prepared for mounting cable plates with brushes (brushes are optional).

Rear door with bar lock and 3 mm double mandrel bolt.

Technical data

  • Article number: 2096-6016-60-07
  • Hinge design: 120°
  • Protective conductor connection: according to DIN EN 61439-1
  • Surface: Powder coating RAL 7035, texture finish
  • Sheet thickness: Front doors, keyboard flap as well as side panels: 1,5 mm
    Rear Door: 2 mm
    Frame/Body: 2 mm
  • Material: Sheet steel

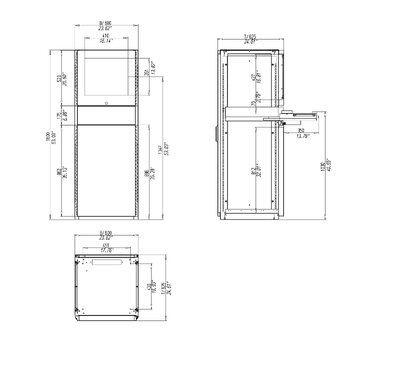

  • Dimensions: Width : 600 mm  Height : 1600 mm  Depth : 625 mm
  • Weight: 115 kg
  • Cabinet type: PC Cabinets

Notice

  • Monitor external dimensions W x H x D: 556 x 432 x 250 mm (incl. stand) must not be exceeded.
  • PC-cabinet with three-part front (includes internal keyboard tray)
  • Side panels (secured internally)
  • Top
  • Rear panel behind keyboard drawer
  • Rear hinged door
  • 2 keys
  • Cable entry plate
  • Internal mounted trim
Hook-in center attachment rails
0396-0003-60-05
Hook-in center attachment rails
Suitable for depth
600 mm
Typ
left + right version
further information
Extendable equipment drawer, two levels
0396-6866-55-27
Extendable equipment drawer, two levels
Suitabel for width
600 mm
Suitable for depth
625 mm
Footprint
Width: 488 mm x Depth: 500 mm
Load capacity
60 kg
Extension length
530 mm
further information
Multiple socket outlet
9000-0015-03-08
Multiple socket outlet
Width
44.45 mm
Depth
44.45 mm
further information
