0396-7060-62-77

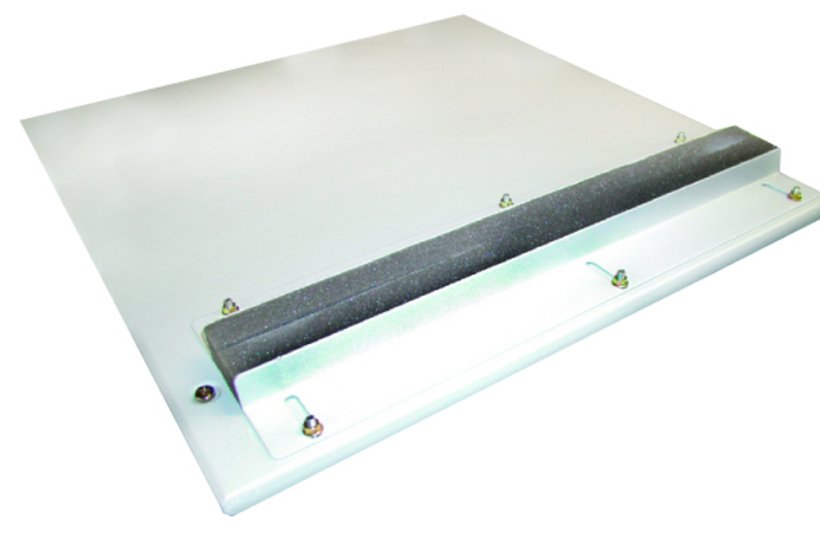

Top panel with rubber clamping
- Flexible cable routing for PC-cabinet 2096
Product description
Top panel with movable cable entry plate with rubber clamping,
Max. cut-out 460x50 mm, suitable for shockproof plugs etc.
Protective ground protection according to DIN EN 61439-1, 1 stud M8x20
with seamlessly foamed seal
lateral design edge
secured with Torx screws
suitable for PC cabinet: W x D 600 x 600 mm
Technical data
-
Article number: 0396-7060-62-77
-
Dimensions: suitable for width : 600 mm suitable for depth : 600 mm
-
Fire behavior: complies with FMVSS 302, DIN 75200
-
Insensitive to: fuel vapors and mineral oil splashes
-
Cross section: Rubber clamp 30 x 25 mm
-
Surface: Powder coating RAL 7035, texture finish
-
Material: Top plate: 1.5 mm (16 ga) sheet steelBracket: 1.5 mm (16 ga) sheet steelRubber clamping: Largely open-cell polyether-based polyurethane foam
-
Weight: 4 kg
-
Protective conductor connection: according to DIN EN 61439-1
- 1 top panel complete with mounting hardware
