0323-8090-65-07

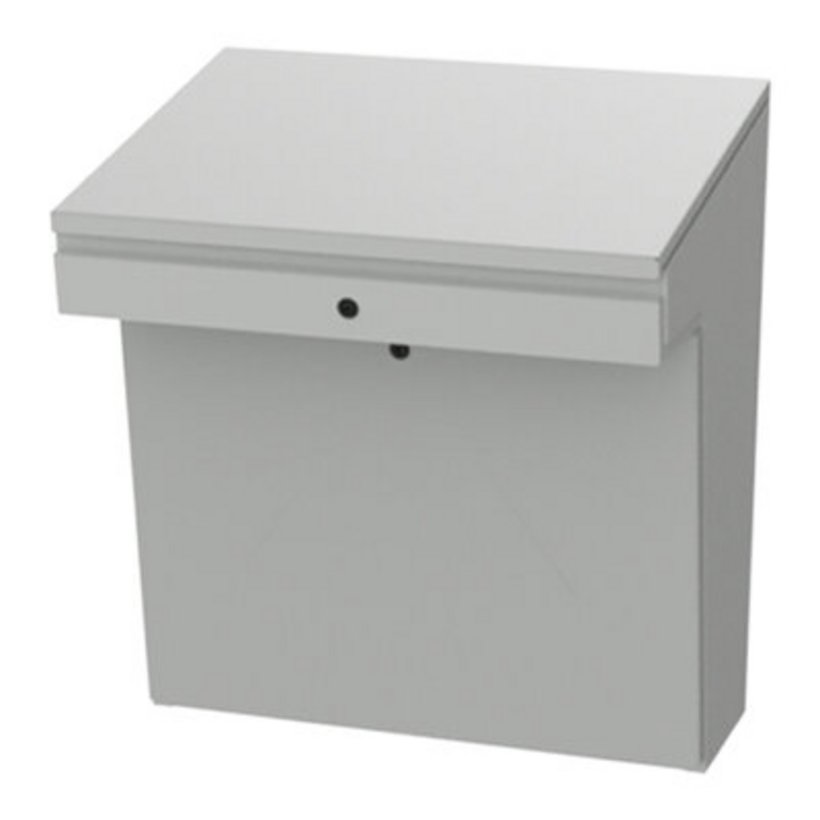

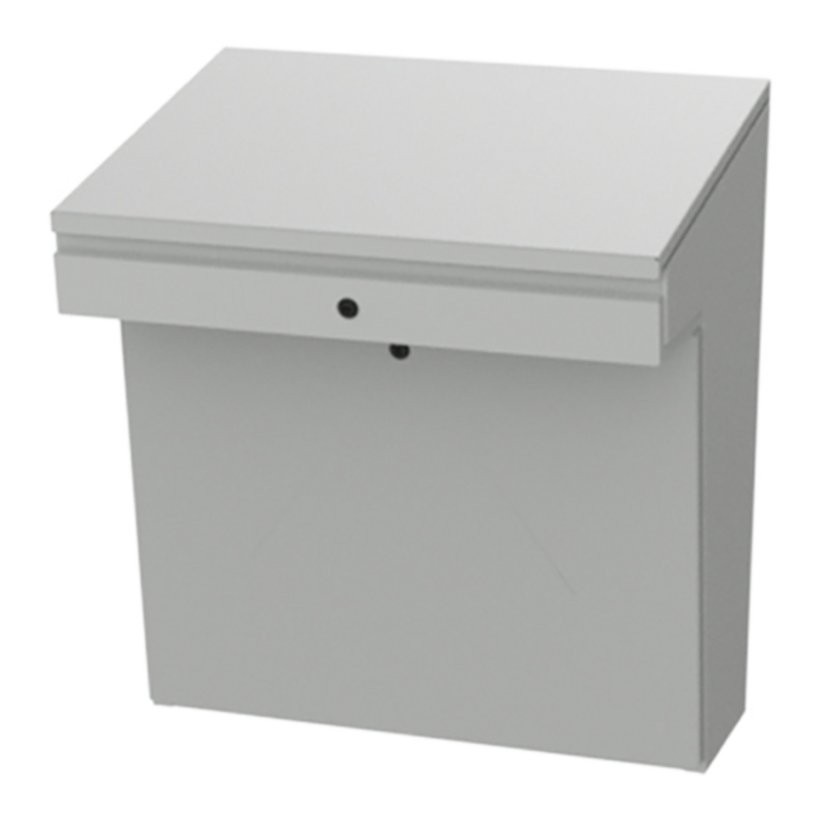

H123 Console
- Console optionally with or without mounting plate
- Can be used as switchboard or control panel
Product description
Lock: 3 mm double mandrel
Console top: With opening struts on right side (from W=1000 mm / 39.37” on both sides)
Mounting plate: Galvanized sheet steel, adjustable to height
Cable entry plate: Secured from inside
Seal: Special foamed-in gasket
Protective ground connection to DIN EN 61439-1, studs on console, doors and mounting plate
Bolted doors at front and rear side
Technical data
-
Article number: 0323-8090-65-07
-
Material: Sheet steel
-
Variant: without mounting plate
-
Dimensions: Width : 800 mm Height : 900 mm Depth : 650 mm
-
Sheet thickness: Door: 1,5 mm
Console plate: 2 mm -
Surface: Powder coating RAL 7035, texture finish
-
Protection class: Designed in accordance with IP55
-
Cabinet type: Console systems
Notice
- Other locking types are available upon request.
- Stainless steel locks are available upon request.
- Console complete with cable entry plate and 1 key
0346-8001-26-17
100 mm/3.93” High Base Type 0346 for Consoles
Width
800 mm
Material
Sheet steel
Socket size
262 mm
