Ergonomic console systems

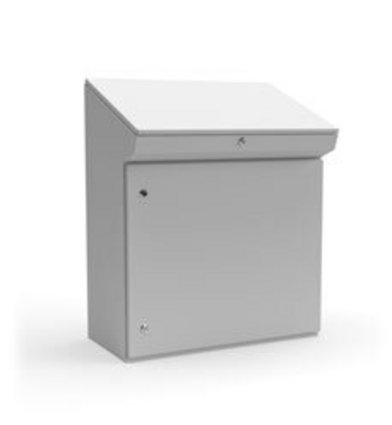

H335 Console, sheet steel, 1 door

Use as switchboard or control console, single or overlapping double door version. Optionally with or without mounting plate.
Protective ground connection according to DIN EN 61439-1, M6x16 studs on door, console panel and body.

The double flanged door frame and narrow door gap avoid the entry of dirt and water while opening the door.
Door with seamless foamed-in gasket, standard stop on the right side, door stop change possible without drilling.
Hidden hinges, made of sheet steel, 180° opening…


0335-5010-49-07	500 mm	977 mm	492 mm	without mounting plate	IP55 Type 1, 12
0335-5010-49-17	500 mm	977 mm	492 mm	with mounting plate	IP55 Type 1, 12
0335-6010-49-07	600 mm	977 mm	492 mm	without mounting plate	IP55 Type 1, 12
0335-6010-49-17	600 mm	977 mm	492 mm	with mounting plate	IP55 Type 1, 12
0335-8010-49-07	800 mm	977 mm	492 mm	without mounting plate	IP55 Type 1, 12
0335-8010-49-17	800 mm	977 mm	492 mm	with mounting plate	IP55 Type 1, 12

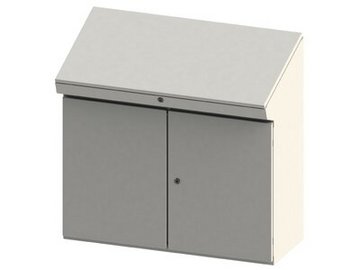

H335 Console, sheet steel, 2 doors


0335-1210-49-07	1200 mm	977 mm	492 mm	without mounting plate	IP54 Type 1, 12
0335-1210-49-17	1200 mm	977 mm	492 mm	with mounting plate	IP54 Type 1, 12
0335-1010-49-07	1000 mm	977 mm	492 mm	without mounting plate	IP54 Type 1, 12
0335-1010-49-17	1000 mm	977 mm	492 mm	with mounting plate	IP54 Type 1, 12

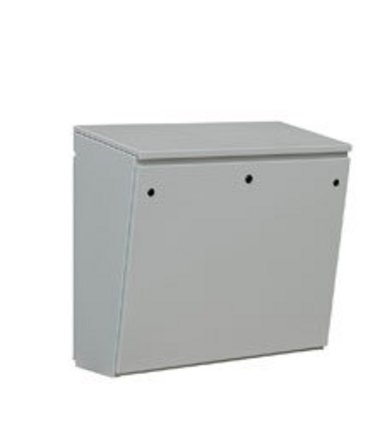

H122 Console

With rear bolted door
Lock: 3 mm double mandrel
Console top: With opening struts on right side (from W=1000 mm / 39.37” on both sides
Mounting plate: Galvanized sheet steel, adjustable to depth (if D=650 mm / 17.72” with 2 mounting plates)
Cable entry plate: Secured from inside
Seal: Foamed-in special gasket
Protective ground connection according to DIN EN 61439-1, connection on console, doors and mounting plate
Bolted doors at front and rear side


0322-6090-45-07	600 mm	900 mm	450 mm	without mounting plate	IP55
0322-6090-45-17	600 mm	900 mm	450 mm	with mounting plate	IP55
0322-7090-45-07	700 mm	900 mm	450 mm	without mounting plate	IP55
0322-7090-45-17	700 mm	900 mm	450 mm	with mounting plate	IP55
0322-8090-45-07	800 mm	900 mm	450 mm	without mounting plate	IP55
0322-8090-45-17	800 mm	900 mm	450 mm	with mounting plate	IP55
0322-1090-45-07	1000 mm	900 mm	450 mm	without mounting plate	IP55
0322-1090-45-17	1000 mm	900 mm	450 mm	with mounting plate	IP55
0322-1290-45-07	1200 mm	900 mm	450 mm	without mounting plate	IP55
0322-1290-45-17	1200 mm	900 mm	450 mm	with mounting plate	IP55
0322-1690-45-07	1600 mm	900 mm	450 mm	without mounting plate	IP55
0322-1690-45-17	1600 mm	900 mm	450 mm	with mounting plate	IP55
0322-2090-45-07	2000 mm	900 mm	450 mm	without mounting plate	IP55
0322-2090-45-17	2000 mm	900 mm	450 mm	with mounting plate	IP55
0322-8090-65-07	800 mm	900 mm	650 mm	without mounting plate	IP55
0322-8090-65-17	800 mm	900 mm	650 mm	with mounting plate	IP55
0322-1090-65-07	1000 mm	900 mm	650 mm	without mounting plate	IP55
0322-1090-65-17	1000 mm	900 mm	650 mm	with mounting plate	IP55
0322-1290-65-07	1200 mm	900 mm	650 mm	without mounting plate	IP55
0322-1290-65-17	1200 mm	900 mm	650 mm	with mounting plate	IP55
0322-1690-65-07	1600 mm	900 mm	650 mm	without mounting plate	IP55
0322-1690-65-17	1600 mm	900 mm	650 mm	with mounting plate	IP55

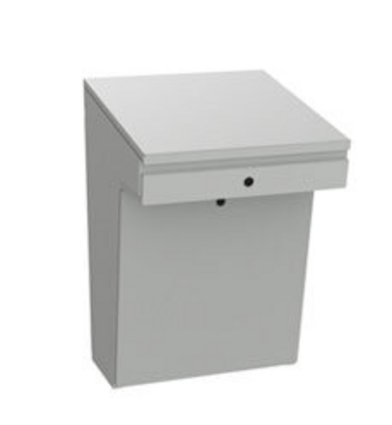

H123 Console

Lock: 3 mm double mandrel
Console top: With opening struts on right side (from W=1000 mm / 39.37” on both sides)
Mounting plate: Galvanized sheet steel, adjustable to height
Cable entry plate: Secured from inside
Seal: Special foamed-in gasket
Protective ground connection to DIN EN 61439-1, studs on console, doors and mounting plate
Bolted doors at front and rear side


0323-6090-65-07	600 mm	900 mm	650 mm	without mounting plate	Designed in accordance with IP55
0323-6090-65-17	600 mm	900 mm	650 mm	with mounting plate	Designed in accordance with IP55
0323-8090-65-07	800 mm	900 mm	650 mm	without mounting plate	Designed in accordance with IP55
0323-8090-65-17	800 mm	900 mm	650 mm	with mounting plate	Designed in accordance with IP55
0323-1090-65-07	1000 mm	900 mm	650 mm	without mounting plate	Designed in accordance with IP55
0323-1090-65-17	1000 mm	900 mm	650 mm	with mounting plate	Designed in accordance with IP55
0323-1290-65-07	1200 mm	900 mm	650 mm	without mounting plate	Designed in accordance with IP55
0323-1290-65-17	1200 mm	900 mm	650 mm	with mounting plate	Designed in accordance with IP55
0323-1690-65-07	1600 mm	900 mm	650 mm	without mounting plate	Designed in accordance with IP55
0323-1690-65-17	1600 mm	900 mm	650 mm	with mounting plate	Designed in accordance with IP55
