0390-8020-50-17

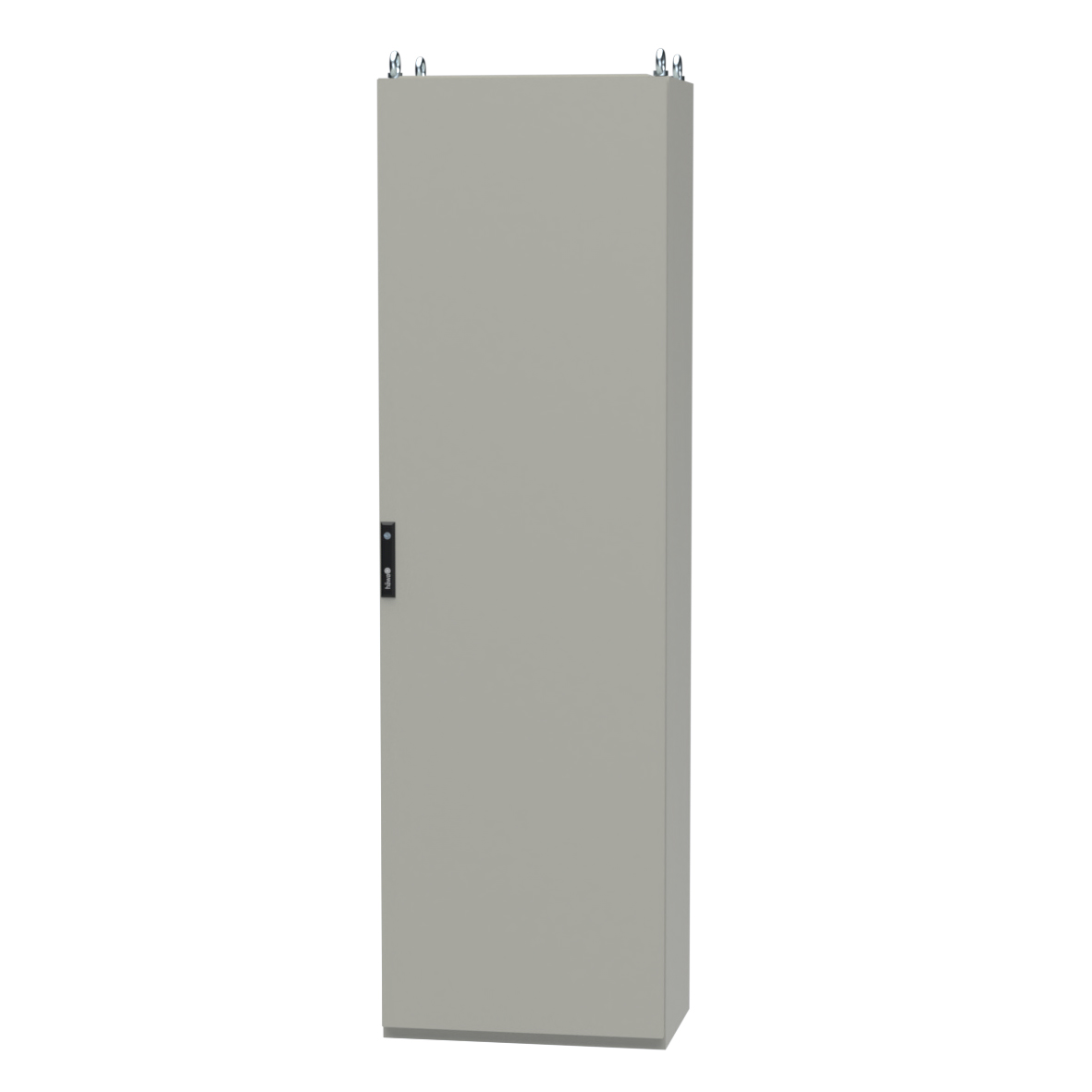

Free-Standing cabinets Sheet steel H390, single door
- Sheet steel
- Free-standing cabinet
- Depth 500 mm
- Protection class IP/Nema/Type: see Technical data
- System accessories permit modular extension
Product description
Free-standing cabinets with single or double door design. Available with or without mounting plate. Mounting rails for 100 % utilization of häwa accessories available as option.
Protective grounding according to DIN EN 61439-1, M8x20 studs on all movable and detachable parts as well as on top and bottom frame areas, mounting plate with ground connector screw and cable entry plates with drilling
Flanged edges prevent dust and water from entering when opening the door
Doors with seamlessly foamed gasket can be mounted either at left or right side, standard delivery includes doors hinged on right side.
Opening angle 120° can be modified to 180°.
Locking: Bar lock,
standard with 3 mm double mandrel bolt.
Bolted reinforcement and attachment frame of solid square tubes perforated with 4.5 mm holes every 25 mm.
Top plate can be removed, with 4 lifting eyes M12 to DIN 580
Bottom with three-part, adjustable cable entry plate and 10.6 mm mounting holes.
C-flanged mounting plate, adjustable to depth every 25 mm; quick and easy mounting with häwa locking brackets.
Technical data
-
Article number: 0390-8020-50-17
-
Protective conductor connection: according to DIN EN 61439-1
-
Protection class: IP55
Type 1, 12 -
Material: Sheet steel
-
Authorization: cULus
-
Dimensions: Width : 800 mm Height : 2000 mm Depth : 500 mm
-
Weight: 133.5 kg
-
Cabinet type: Free standing cabinets
-
Variant: with mounting plate
-
Surface: Powder coating RAL 7035, texture finish
-
Sheet thickness: Door: 2 mm(ga)
Roof angle: 2 mm(ga)
Carrier angle ground group: 2,5 mm(ga)
Frame/Body: 1,5 mm(ga)
Rear wall: 1,5 mm(ga)
Moungting panel: 2,5 mm(ga)
Notice
- Rear panel with hinged door or other modifications involve delivery time. Price upon request.
- Attention: Center attachment type 0391-0003-..-00 cannot be combined with vertical mounting rails type 0391-90..-00-03.
- Modular assembly is achieved by using the horizontal/vertical mounting rails.For width 1600/2000, 2 horizontal mounting rails are required.
- Please refer to base drawings for base mounting dimensions.
- By mounting the RainKit (see accessories), UL Type 3R is additionally achieved.
- Cabinet complete with lifting eyes, top plate, bottom cable entry plate and 1 key
0318-8020-02-47
19"-Swing frame type 0318
Suitable for width
800 mm
Suitable for Height
2000 mm
Suitable for type
lateral
0396-7114-80-07
Combination work plate/diagram pocket
Dimensions
Width (b): 548 mm/21,57"
Suitable for width: 800 mm/31,50" (single door)
Suitable for width: 800 mm/31,50" (single door)
2070-9102-34-00
Clip-nuts
Thread
M4
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9102-35-00
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9102-35-02
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9102-35-03
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9102-36-00
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9102-36-02
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9102-36-03
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9102-45-00
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
0,9 - 1,9 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
2070-9102-45-01
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
1,5 - 2,0 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
2070-9102-46-00
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
0,9 - 1,9 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
2070-9102-46-01
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,5 - 2,0 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
2070-9102-46-02
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,8 - 2,9 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
2070-9102-46-03
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
2070-9202-35-00
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9202-35-02
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9202-35-03
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9202-36-00
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9202-36-02
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9202-36-03
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
2070-9203-36-03
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,8 - 3,2 mm
For cut-out size
12,3x12,3 mm/0,48x0,48"
Variante
without grounding pin
3080-7109-87-00
Door opening limiter for H390/H395, H370/H375 cabinets
Surface
Galvanized
Material
Sheet steel
Suitable for console type
H390/H395 and H370/H375 from door width 500 mm
3080-9042-01-07
Fluorescent Lamp, Ready for Connection
Operating voltage
AC 220-240V, 50/60 Hz
Version
Door switch
Fixing type
Screw mounted version
Socket
Schuko CEE 7/3 load: Max. 16 A
3080-9042-04-07
Fluorescent Lamp, Ready for Connection
Operating voltage
AC 220-240V, 50/60 Hz
Version
Door switch
Fixing type
Screw mounted version
Socket
Schuko CEE 7/3 load: Max. 16 A
3080-9042-60-37
Fluorescent Lamp, Ready for Connection
Operating voltage
AC 220-240V, 50/60 Hz
Version
Door switch
Fixing type
Screw mounted version
Socket
Schuko CEE 7/3 load: Max. 16 A
0396-8001-50-17
Bases height 3.94" for H390, H395 abd PC2096
Suitable for width
800 mm
Suitable for depth
500 mm
Material
Sheet steel
Socket size
450 mm
0396-8001-51-17
100 mm high base for H390 cabinets only (flush with rear side)
Suitable for width
800 mm
Suitable for depth
500 mm
Material
Sheet steel
Socket size
475 mm
0396.8002.50.17
Bases height 7.87" for cabinets type H390 and H395
Suitable for width
800 mm
Suitable for depth
500 mm
Material
Sheet steel
Corner section: 2.5 mm
Covers and cross sections: 1.5 mm
Corner section: 2.5 mm
Covers and cross sections: 1.5 mm
Socket size
450 mm
0396.8002.51.17
Base height 7.87" only for cabinets type H390 (flush with rear side)
Suitable for width
800 mm
Suitable for depth
500 mm
Material
Sheet steel
Socket size
475 mm
0395-8020-00-97
Replacement door for sheet steel cabinets type H390/H395
Suitabel for Width
800 mm
Suitabel for Height
2000 mm
Material
Sheet steel
Type
Single door
0395-8020-05-97
Replacement door for sheet steel cabinets type H390/H395
Suitabel for Width
800 mm
Suitabel for Height
2000 mm
Material
Sheet steel
Type
Double door set
4533-8020-00-01
RainKit single door cabinets for H395
Type
Rain rail 3R
Suitabel for width
800 mm
Suitable for height
2000 mm
Protection Type
Type: 1, 12, 3R is possible with type H395/H390 only
3080-7041-61-95
Door Switch for Cabinets H3X0/H3X5
Contact
1 Normally open, 1 normally closed
Utilization category
AC-15, Ue/le 240V/3A
Rated operating voltage
Ue 240V
3080-0041-13-01
Door Contact Switch
Design
Change-over (co = closed open)
Mounting
Screw fixing M5
Connection
4-pole terminal, max. tightening torque 0.5 Nm
3080-0041-13-02
Door Contact Switch
Design
Opener (nc=normally closed)
Mounting
Screw fixing M5
Connection
4-pole terminal, max. tightening torque 0.5 Nm
Mounting instructions:
CAD data and other illustrations:
