0396-8001-51-17

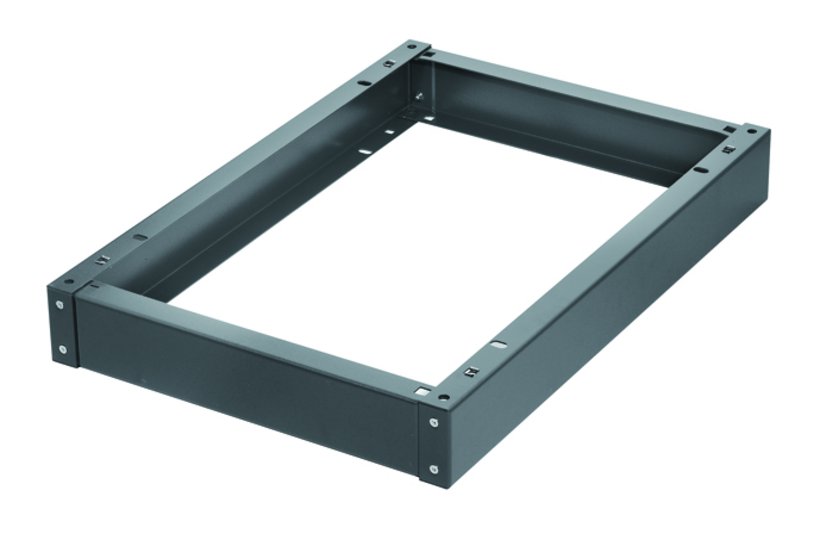

100 mm high base for H390 cabinets only (flush with rear side)
- For free-standing single and ganged-together modular cabinets
- Rugged U-profiles
Product description
Base for installation under cabinets.
Technical data
-
Article number: 0396-8001-51-17
-
Dimensions: suitable for width : 800 mm suitable for depth : 500 mm
-
Variant: 31.5" x X x 19.69"
-
Surface: Powder coated RAL 7022, texture finish
-
Material: Sheet steel
-
Base dimension (s): 430 mm
-
Sheet thickness: 2 mm
-
Base depth (t): 475 mm
Notice
- The back of the bases is flush with the cabinets.From W-600mm23.62" cable entry with brush strip (clearance 270x48mm/10.63x1.89") is available upon request.
- Base complete, unassembled, with assembly and mounting hardware.
0390-8018-50-07
Free-Standing cabinets Sheet steel H390, single door
Width
800 mm
Height
1800 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0390-8018-50-17
Free-Standing cabinets Sheet steel H390, single door
Width
800 mm
Height
1800 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0390-8020-50-07
Free-Standing cabinets Sheet steel H390, single door
Width
800 mm
Height
2000 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0390-8020-50-17
Free-Standing cabinets Sheet steel H390, single door
Width
800 mm
Height
2000 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
Mounting instructions:
CAD data and other illustrations:
