Air-To-Air Heat Exchangers

häwa air-to-air heat exchangers with a highly conductive aluminum core grid system have two separate closed air circuits, each of them equipped with one fan and sealed per IP 54. This assures that outside air does not penetrate into the interior of the cabinet.
The fan of the internal circuit draws hot air from the cabinet and blows it down along the heat exchanger, where it is cooled via the cooling fins and forced back into the interior of the cabinet. The external circuit fan draws in cool…


3114-0150-15-07	Kleinst-WT	6 W/K	230 V AC	CE	partial mounting
3114-0220-16-07	Mini-Mini 220	8,8 W/K	230 V AC	CE	external/internal installation
3114-0350-25-07	Kompakt superflach 350	14 W/K	230 V AC	CE	external/internal installation
3114-0500-25-07	Kompakt 500	20 W/K	230 V AC	CE	external/internal installation
3114-0750-31-07	Kompakt 750	30 W/K	230 V AC	CE	external/internal installation
3114-1150-25-07	Standard 1150	46 W/K	230 V AC	CE	external/internal installation
3114-2000-23-07	SH2000	80 W/K	230 V AC	CE	external/internal installation
3114-3250-23-07	SH3250	130 W/K	230 V AC	CE	external/internal installation

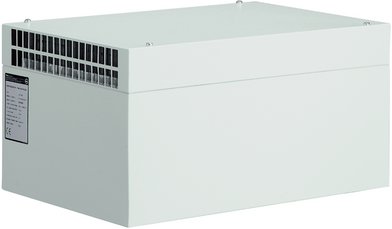

Roof-Mounted Air-To-Air Heat Exchanger

häwa air-to air heat exchangers with a highly conductive aluminum core grid system have to separate closed air circuits, each of them equipped with one fan and sealed per IP 54.
This assures that outside air does not penetrate into the interior of the cabinet.
For roof-mounting.
Separate connection of external and internal fans.
Simple cleaning of the exchanger core while mounted.
Simple removal of exchanger core for wet cleaning.

Art No.	Typ	Cooling capacity	Nominal voltage	Approval	Water connection	Mounting	Remember
3115-1600-60-07	DW1600	64 W/K	230 V AC	CE		roof-mounted
