3115-1600-60-07

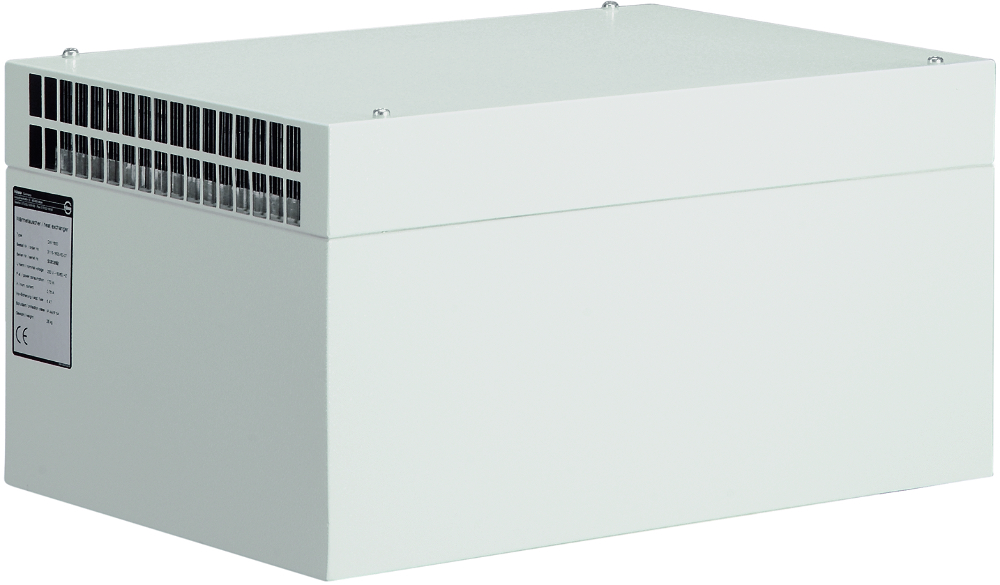

Roof-Mounted Air-To-Air Heat Exchanger
- Filterless, low maintenance
- User friedly
- Compact design
Product description
häwa air-to air heat exchangers with a highly conductive aluminum core grid system have to separate closed air circuits, each of them equipped with one fan and sealed per IP 54.
This assures that outside air does not penetrate into the interior of the cabinet.
For roof-mounting.
Separate connection of external and internal fans.
Simple cleaning of the exchanger core while mounted.
Simple removal of exchanger core for wet cleaning.
Technical Data
-
Order No.: 3115-1600-60-07
-
Frequency: 50 Hz/60 Hz
-
Protection type: IP54, internal fan IP22
-
Dissipated heat at temperature difference: 1600 W
-
Nominal voltage: 230 V AC
-
Cooling capacity: 64 W/K
-
Unimpeded air flow: Cold/warm side: each 860 m³/h
-
Material: Heat exchanger core: Aluminum
housing: 1mm sheet steel -
Mounting: roof-mounted
-
Electrical connection: 1 power cord
-
Power consumption: at 50 Hz: 170 W
-
Nominal current: at 50 Hz: 0,76 A
-
Noise level: at 50 Hz: 64 dB(A)
-
Approval: CE
-
Weight: 28 kg
-
Dimension: Width : 600 mm Height : 300 mm Depth : 380 mm
-
Surface: Powder coating RAL 7035, texture finish
-
Type: DW1600
-
Fuse: 6 AT
Notice
- Versions with special voltages or with stainless steel enclosures are available upon request.
- Heat exchanger with 1 power cord
- Rubber seals
- Mounting hardware
