3150-0061-02-30

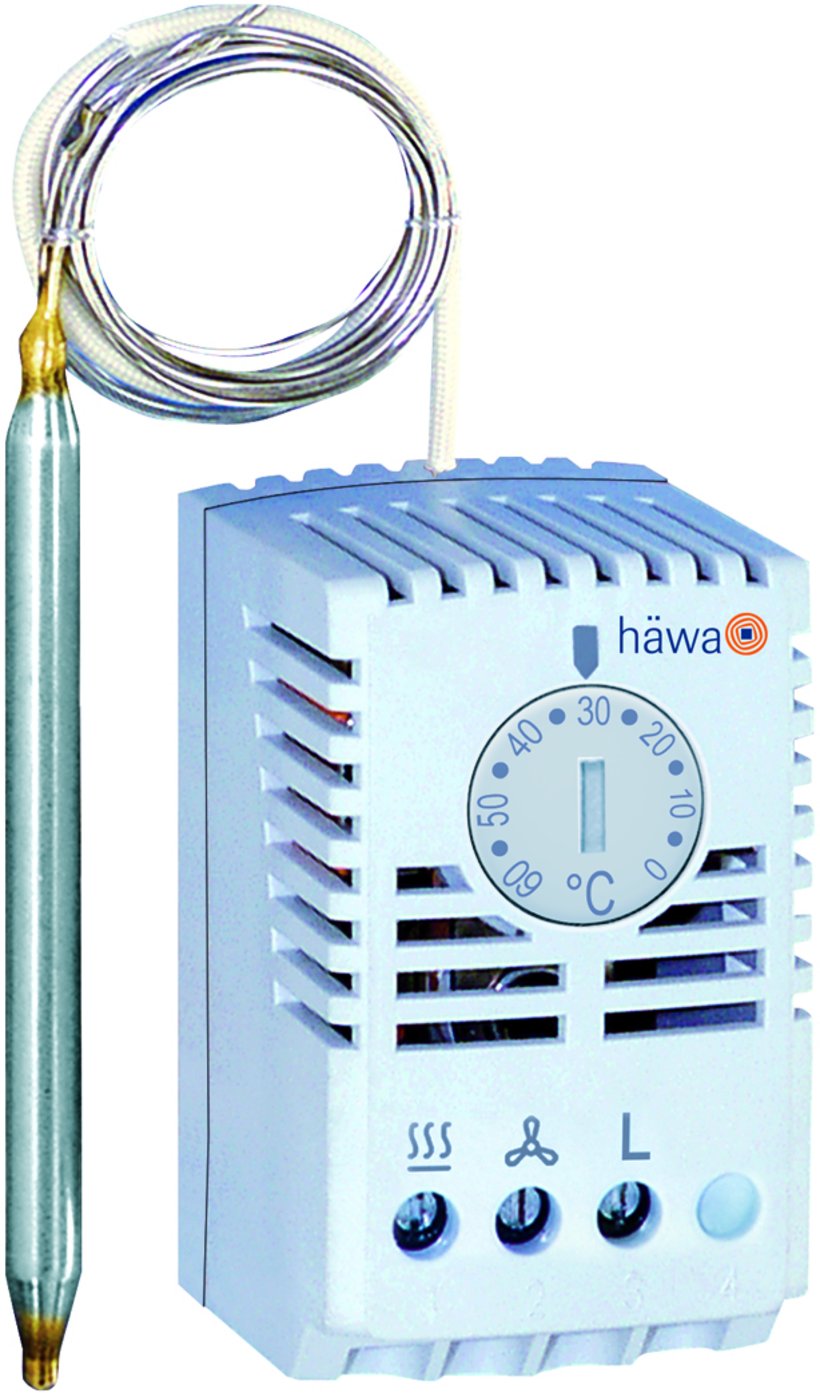

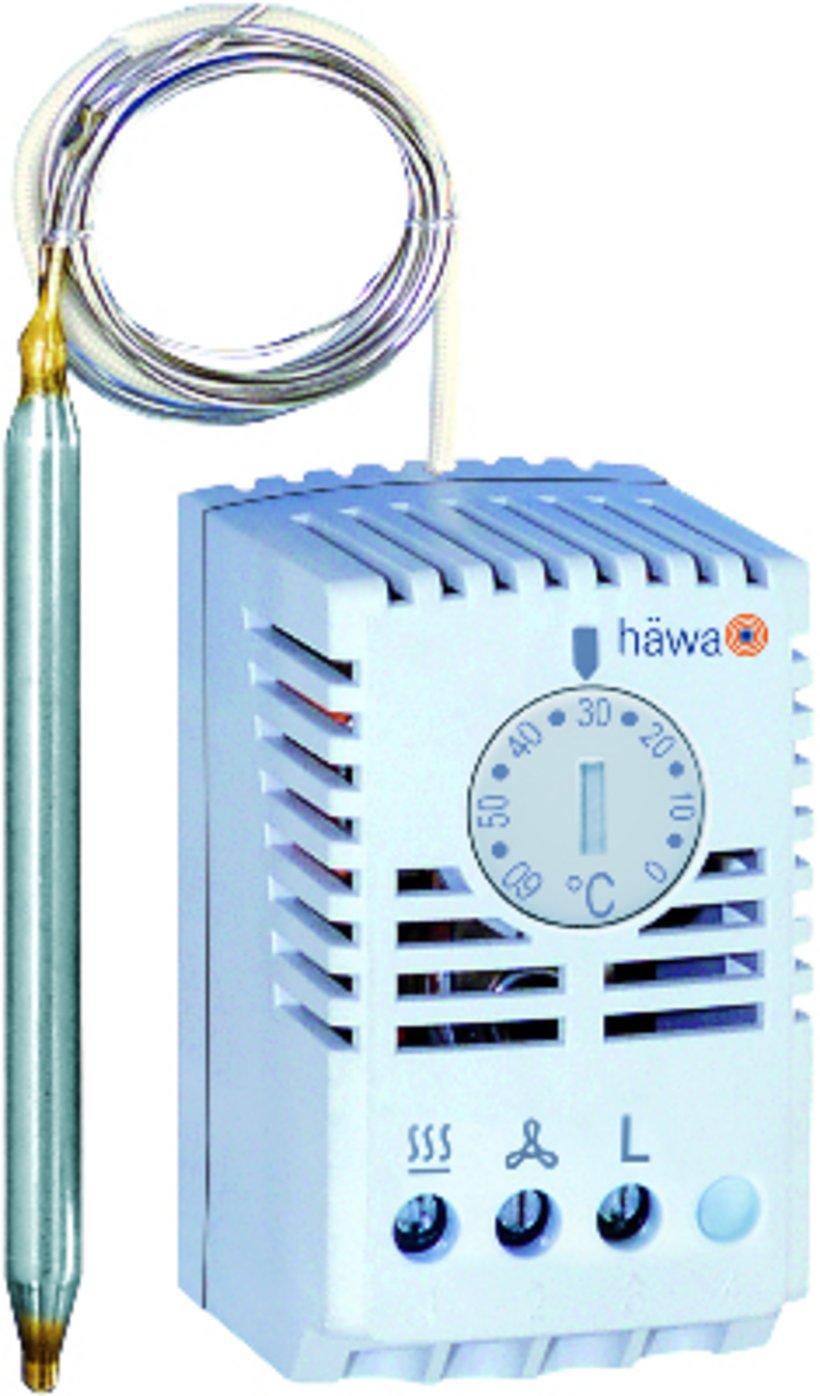

Capillary Thermostat
- Temperature control by purposeful measurement of the object.
- Individual mounting of the sensor bulb, where temperature needs to be measured.
- Easy snap-on attachment on 35 mm DIN rails to DIN EN 50022
Product description
Thermostat with capillary tube sensor element for controlling cabinet heaters, filter fans, slide-in fans, heat exchangers etc.
Locking adjusting knob grey scale (exact adjustment, no automatic change).
Technical data
-
Article number: 3150-0061-02-30
-
Protection class: IP30
-
Protection class: 0, must be supplied by installation type
-
TEMPERATURBEREICH_DIC: from: 0 °C/0 °F to: +60 °C/+140 °F
-
Storage temperature: from : -40 °C to : +80 °C
-
Switching current: (100-250 VAC): Heating (normally closed contact) 10 A (2) DC 30W; Cooling (normally open contact) 5 A (2) DC 30W
-
Switching hysteresis: < 7 K
-

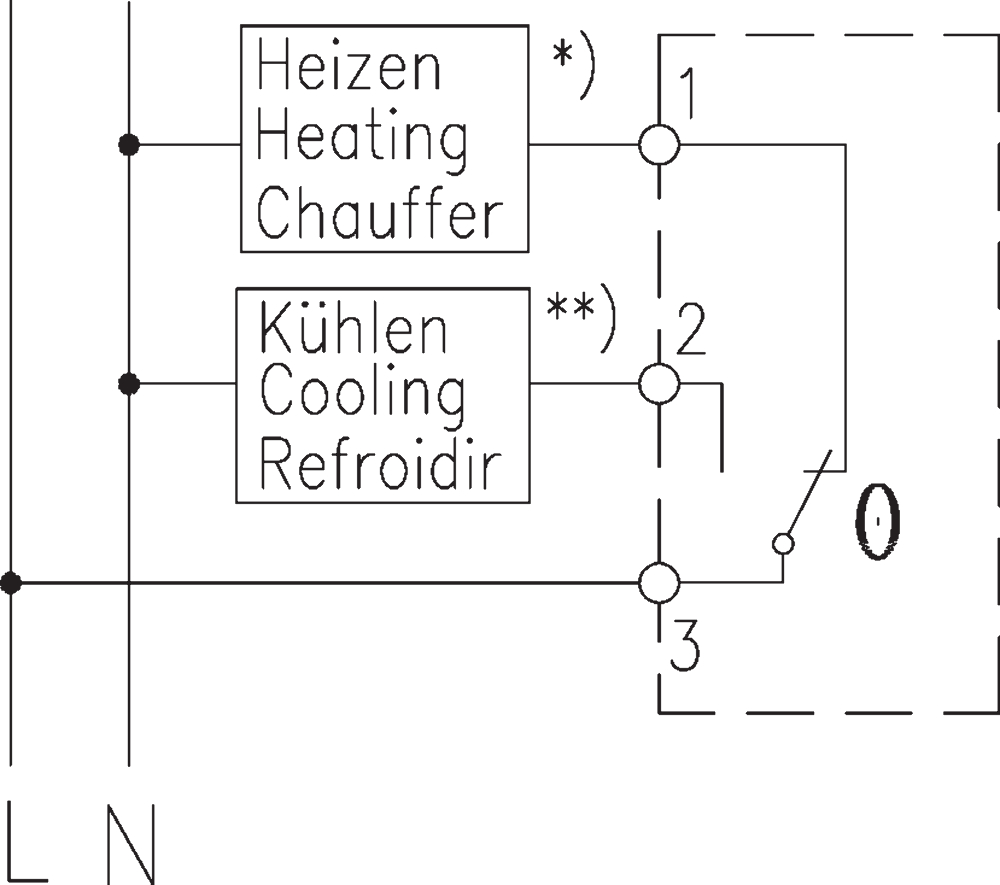

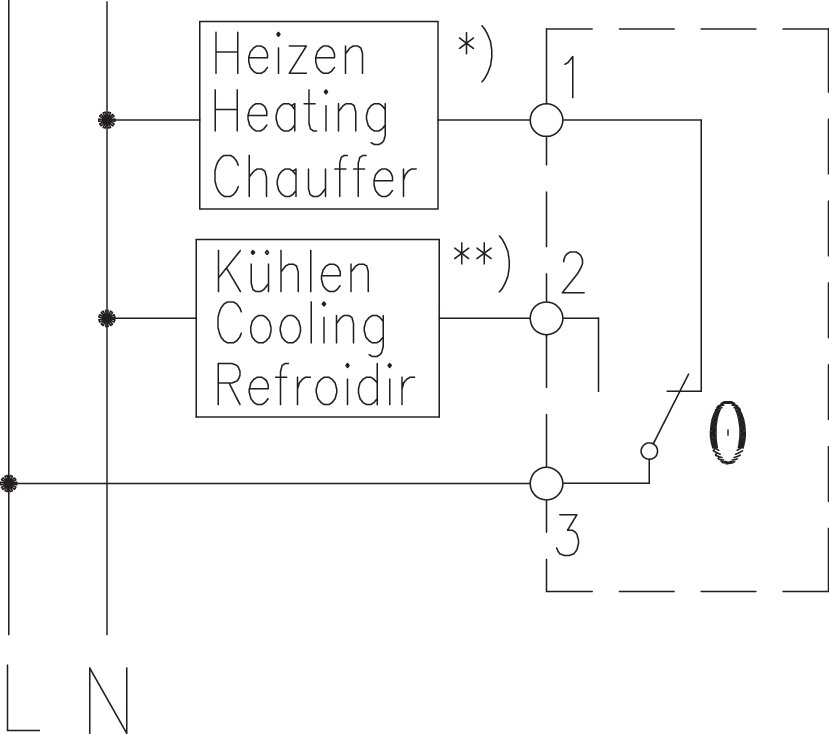

Contact type: Change-over
-
Sensor element: Capillary tube 1.5 m
-
MONTAGE: Clip for 35 mm DIN rail EN 60715
-
Electrical connection: screw teminals 0.5 ...2.5 mm2
-
Weight: 0.06 kg
-

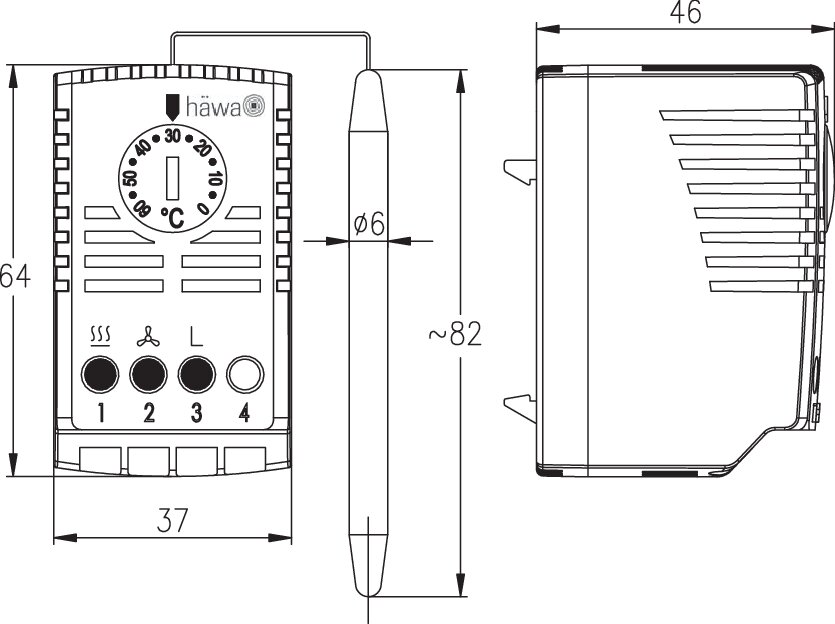

Dimensions: Width : 37 mm Height : 64 mm Depth : 46 mm
-
Surface: Plastic light grey UL94VO
Notice
- Attention! In order to achieve the permissibleprotection class, connect the sensor of thecapillary thermostat directly with the groundconnector.
- Thermostat with Snap on attachment
Mounting instructions:
CAD data and other illustrations:
