Thermostate für Schaltschränke zur Temperaturregelung

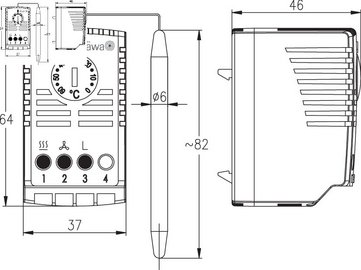

Capillary Thermostat

Thermostat with capillary tube sensor element for controlling cabinet heaters, filter fans, slide-in fans, heat exchangers etc.
Locking adjusting knob grey scale (exact adjustment, no automatic change).

Art No.	Contact type	Temperature range	Remember
3150-0061-02-30	Change-over	from: 0 °C/0 °F to: +60 °C/+140 °F

Fix-Thermostat FTS

Normally open contact / NO for controlling filter fans, heat exchangers, air conditioners or for switching signal devices when temperature limit has been exceeded.
The contact closes when temperature is rising.
High switching accuracy.


3150-4035-00-00	Snap-action contact	Switch-off temperature: +25 °C, Starting temperature: +35 °C
3150-4050-00-00	Snap-action contact	Switch-off temperature: +40 °C, Starting temperature: +50 °C
3150-4060-00-00	Snap-action contact	Switch-off temperature: +50 °C, Starting temperature: +60 °C

Fix-Thermostat FTO

Normally closed contact / NC for controlling heaters or for switching signal devices when temperature has fallen below the minimum value.
The contact opens when temperature is rising.
High switching accuracy.

			Remember
3150-3015-00-00	Snap-action contact	Switch-off temperature: +15 °C, Starting temperature: +5 °C
3150-3025-00-00	Snap-action contact	Switch-off temperature: +25 °C, Starting temperature: +15 °C

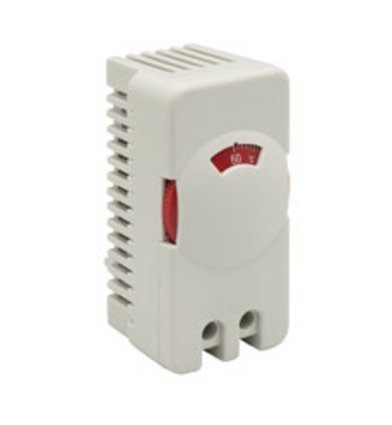

Small Compact Thermostat with Thumbwheel Setting Dial

These mechanical thermostats are two state regulators with small hysteresis. The setting wheel of the normally open contact version has an anti-frost assurance. The enclosure ensures an optimized air circulation around the bimetal.
Thermostat-NC STO 011 contact breaker for controlling heaters. The contact opens when temperature is rising.
Thermostat-NO STS 011 contact maker for controlling filter fans, heat exchangers, air conditioners or for switching signal devices when temperature limit has…

			Remember
3150-1060-02U30	Opened con. (heating)	Snap-action contact
3150-2060-02U30	Closed con. (cooling)	Snap-action contact

Temperature controller for controlling cabinet heaters, filter fans, slide-in fans, heat exchangers etc.
Locking adjusting knob, grey scala.
Standard thermal reduction.

Art No.	Contact type	Temperature range	Remember
3150-0060-02-30	Change-over	from: 0 °C/0 °F to: +60 °C/+140 °F
