2605-7750-10-50
Punching tool AlCu-Press ø 10.5 mm for laminated copper
- Long lifetime
- Maximum productivity with minimum effort
Product description
Can be used with the bow punch AlCu-Press punching
For punching laminated copper rails
With sharpened lathe point for easy positioning of the punch position
Quick, precise punching, burr formation is depending on the material quality
Technical data
-
Article number: 2605-7750-10-50
-
Max. Sheet thickness: 10 mm/0,39"
-
Product family: For workshop equipment
-
Version: for processing laminated copper bars
-
Size: 10,5 mm
Notice
- Other punch sizes on request.
- For mounting round punches in the bow punch, you require a punch holder (type 2605-0507-01-10). For mounting the die, you require the die holder ø 40 mm for AlCu Press (type 2605-0507-01-15).
- We recommend to use for each round punch an individual punch holder to avoid the changing of the wiper.
- For punching solid copper or aluminum rails, you require other punching tools, see “Punching "AlCu-Press / solid copper or aluminum”

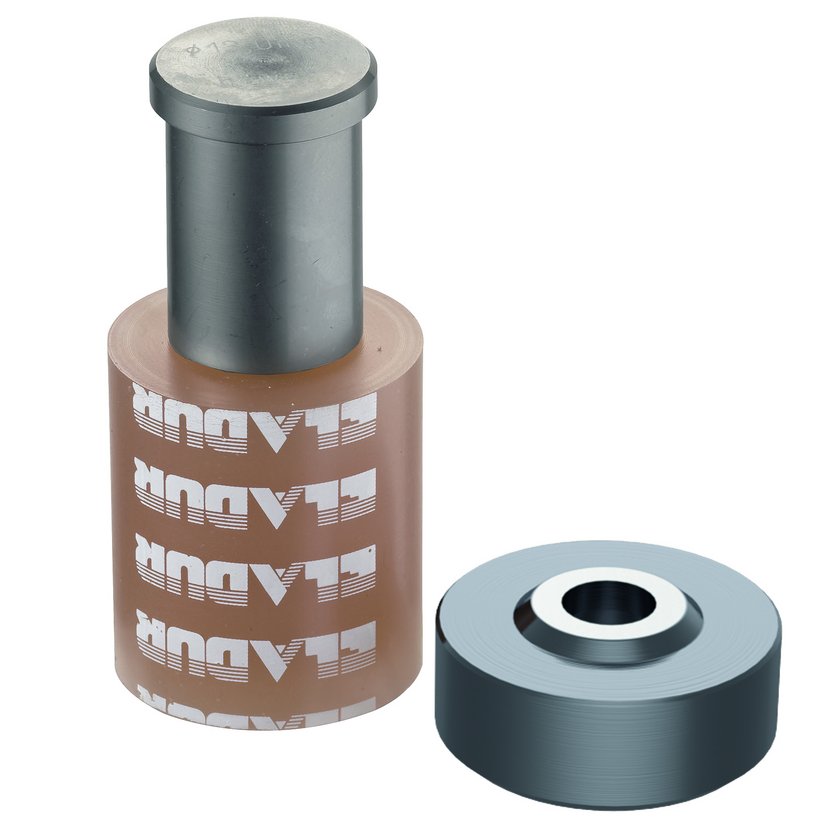

- 1 punching tool, consisting of punch, die and rubber wiper
2605-0900-10-50
Wipers for AlCu-Press
Product range
For workshop equipment
Version
For mounting round punches in Alcu-Press
For punch size
10.5 mm
2605-0507-01-10
Adapter AlCu-Press: Punching
Product range
For workshop equipment
Version
For AlCu-Press punching, cutting to length / AlCu-Press complete
For processing
solid copper or aluminum materials
2605-0507-01-15
Die Holder ø 40 mm for AlCu-Press
Product range
For workshop equipment
Version
For AlCu-Press punching, cutting to length / AlCu-Press complete
For processing
solid copper or aluminum materials
2605-7102-00-02
AlCu-Press Complete
Suitable for
round punches up to ø 17 mm / 0.67 inch oblong holes up to 13x22 mm / 0.51x0.87 inch
Max. sheet metal thickness
Cross section: copper up to 12x120 mm / 0.47x4.72”; aluminum up to 12x120 mm / 0.47x4.72”
Material up to a cross section of
12x120 mm/0,47x4,72"
Depth stop
Adjustable from 8 to 85 mm / 0.32x3.35”
2605-7502-00-02
AlCu-Press: Punching / Cutting to Length
Application
Punching of cut-outs
Suitable for
round punches up to ø 17 mm / 0.67 inch oblong holes up to 13x22 mm / 0.51x0.87 inch
Material
Copper, aluminum
Material thickness
Cross section: copper up to 12x120 mm / 0.47x4.72”; aluminum up to 12x120 mm / 0.47x4.72”
2605-0900-10-50
Wipers for AlCu-Press
Product range
For workshop equipment
Version
For mounting round punches in Alcu-Press
For punch size
10.5 mm
