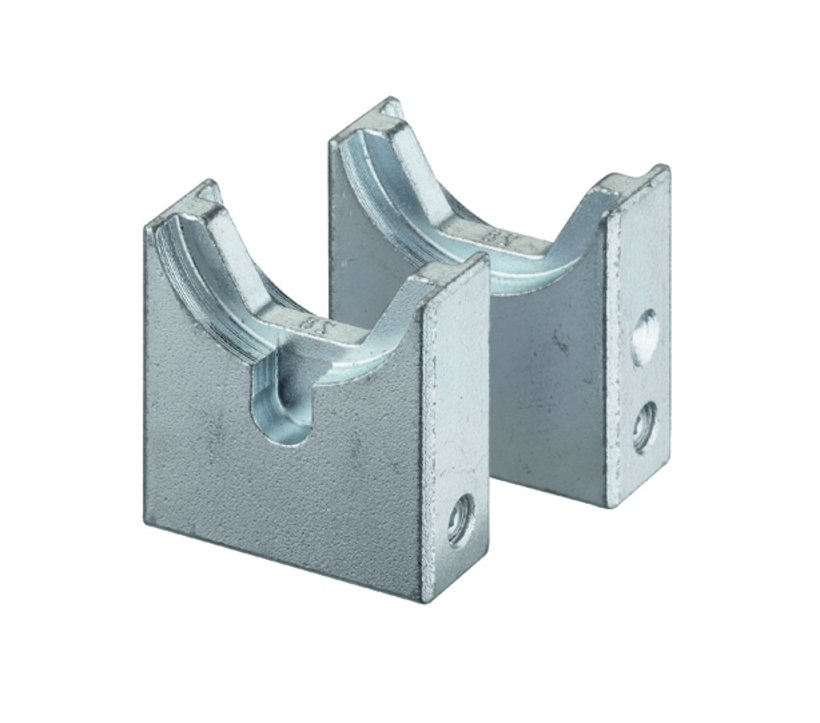

DIN Crimping Dies

2695-1635-13-45

DIN Crimping Dies

Product description

For crimping copper compression cable lugs according to DIN 46235, copper compression joints to DIN 46267 part 1 and Al- and Al/Cu compression cable lugs and connectors.

Technical data

  • Article number: 2695-1635-13-45
  • Key figure: 8/12
  • Product family: for mobile devices
  • Crimping cross-section aluminum: -/16+25 mm2; -/0.025+0.04 Zoll2
  • Crimping cross-section copper: 16/35 mm2; 0.025/0.055 Zolll2

Notice

  • DIN crimping dies can be used for all cable lugs or compression joints, regardless of the manufacturer.
  • You will find a list of all available DIN crimping dies at "Downloads".
  • 1 set DIN crimping dies
Manually Operated Hydraulic Crimping Tool 240
2695-0185-03-00
Manually Operated Hydraulic Crimping Tool 240
Crimping range
from 6 up to 240 mm2; 0.009 bis 0.37"2
Cutting up to
ø 12 mm/0,47"
further information
Save as PDF Save as PDF Direct request
DIN Crimping Dies
DIN Crimping Dies
For crimping copper compression cable lugs according to DIN 46235, copper compression joints to DIN 46267 part 1 and Al- and Al/Cu compression cable lugs and connectors.
Remember
2695-0006-13-43
for mobile devices
6 mm2/0.01 in2
2695-0010-02-79
For Mobile Devices and Workshop Equipment
10 mm2; 0.015 Zolll2
2695-1070-13-44
for mobile devices
10/70 mm2; 0.015/0.11 Zolll2
-/50 mm2; -/0.08 Zoll2
2695-1635-13-45
for mobile devices
16/35 mm2; 0.025/0.055 Zolll2
-/16+25 mm2; -/0.025+0.04 Zoll2
2695-2550-13-46
for mobile devices
25/50 mm2; 0.04/0.08 Zolll2
10/35 mm2; 0.015/0.055 Zolll2
2695-0095-13-47
for mobile devices
95 mm2; 0.15 Zolll2
70 mm2; 0.11 Zolll2
2695-0120-13-48
for mobile devices
120 mm2; 0.185 Zolll2
2695-0150-13-49
for mobile devices
150 mm2; 0.23 Zolll2
95+120 mm2; 0.15+0.185 Zolll2
2695-0185-13-50
for mobile devices
185 mm2; 0.285 Zolll2
150 mm2; 0.23 Zolll2
2695-0006-02-78
For Mobile Devices and Workshop Equipment
6 mm2/0.01 in2
2695-0016-02-80
For Mobile Devices and Workshop Equipment
16 mm2/0,025 in2
2695-0025-02-81
For Mobile Devices and Workshop Equipment
25 mm2; 0.04 Zolll2
10 mm2; 0.015 Zolll2
2695-0035-02-82
For Mobile Devices and Workshop Equipment
35 mm2; 0.055 Zolll2
16+25 mm2; 0.025+0.04 Zoll2
2695-0050-02-83
For Mobile Devices and Workshop Equipment
50 mm2; 0.08 Zolll2
35 mm2; 0.055 Zolll2
2695-0070-02-84
For Mobile Devices and Workshop Equipment
70 mm2; 0.11 Zolll2
50 mm2; 0.08 Zolll2
2695-0095-02-85
For Mobile Devices and Workshop Equipment
95 mm2; 0.15 Zolll2
70 mm2; 0.11 Zolll2
2695-0120-02-86
For Mobile Devices and Workshop Equipment
120 mm2; 0.185 Zolll2
2695-0150-02-87
For Mobile Devices and Workshop Equipment
150 mm2; 0.23 Zolll2
95+120 mm2; 0.15+0.185 Zolll2
2695-0185-02-88
For Mobile Devices and Workshop Equipment
185 mm2; 0.285 Zolll2
150 mm2; 0.23 Zolll2
2695-0240-02-89
For Mobile Devices and Workshop Equipment
240 mm2; 0.37 Zolll2
185 mm2; 0.285 Zolll2
2695-0300-02-90
For Mobile Devices and Workshop Equipment
300 mm2; 0.465 Zolll2
240 mm2; 0.37 Zolll2
2695-0300-02-91
For Mobile Devices and Workshop Equipment
300 mm2; 0.465 Zolll2
