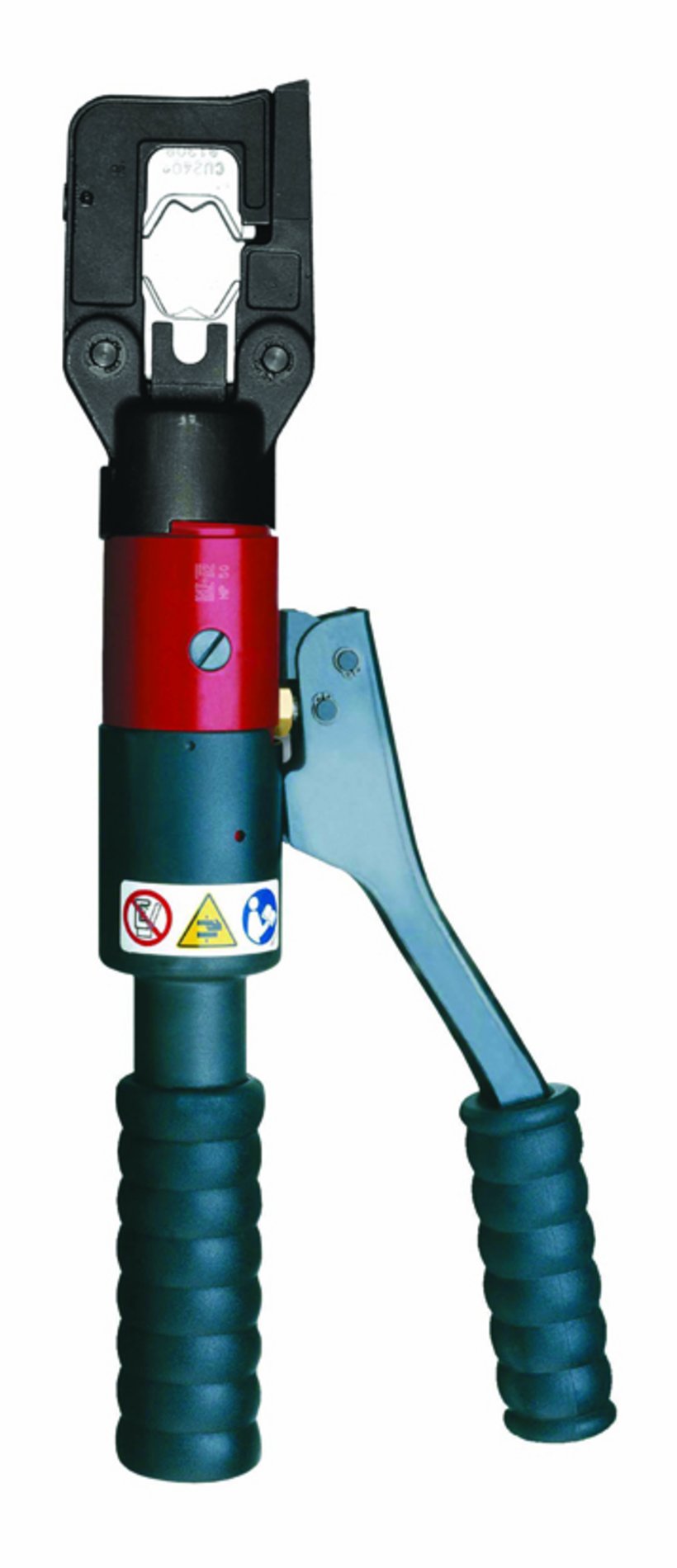

Manually Operated Hydraulic Crimping Tool 240

2695-0185-03-00

Manually Operated Hydraulic Crimping Tool 240

  • Max. crimping range: 240 mm; 0.37"
  • Max. cutting diameter: 12 mm; 0.47"

Product description

For crimping cable lugs and joint connectors

Tool opens automatically when maximum pressure is reached = guaranteed quality.

180° pivot tilt crimping head

2-stage hydraulic pump for quick crimping

With safety valve

An insert for cutting stranded Al and Cu cables up to an external diameter of 12 mm is available upon request.

Short design, lightweight and easy to handle

Technical data

  • Article number: 2695-0185-03-00
  • EINSATZBEREICH: For crimping cable lugs
  • Pressing area: from 6 up to 240 mm2; 0.009 bis 0.37"2
  • Material: Copper, aluminum
  • Cutting up to: ø 12 mm/0,47"
  • Weight: 2.6 kg
  • Max. pressing force: 55 kN
  • Crimping tool in plastic case
DIN Crimping Dies
2695-0006-13-43
DIN Crimping Dies
Product range
for mobile devices
Crimping copper
6 mm2/0.01 in2
further information
DIN Crimping Dies
2695-1070-13-44
DIN Crimping Dies
Product range
for mobile devices
Crimping copper
10/70 mm2; 0.015/0.11 Zolll2
Crimping aluminum
-/50 mm2; -/0.08 Zoll2
further information
DIN Crimping Dies
2695-1635-13-45
DIN Crimping Dies
Product range
for mobile devices
Crimping copper
16/35 mm2; 0.025/0.055 Zolll2
Crimping aluminum
-/16+25 mm2; -/0.025+0.04 Zoll2
further information
DIN Crimping Dies
2695-2550-13-46
DIN Crimping Dies
Product range
for mobile devices
Crimping copper
25/50 mm2; 0.04/0.08 Zolll2
Crimping aluminum
10/35 mm2; 0.015/0.055 Zolll2
further information
DIN Crimping Dies
2695-0095-13-47
DIN Crimping Dies
Product range
for mobile devices
Crimping copper
95 mm2; 0.15 Zolll2
Crimping aluminum
70 mm2; 0.11 Zolll2
further information
DIN Crimping Dies
2695-0120-13-48
DIN Crimping Dies
Product range
for mobile devices
Crimping copper
120 mm2; 0.185 Zolll2
further information
DIN Crimping Dies
2695-0150-13-49
DIN Crimping Dies
Product range
for mobile devices
Crimping copper
150 mm2; 0.23 Zolll2
Crimping aluminum
95+120 mm2; 0.15+0.185 Zolll2
further information
DIN Crimping Dies
2695-0185-13-50
DIN Crimping Dies
Product range
for mobile devices
Crimping copper
185 mm2; 0.285 Zolll2
Crimping aluminum
150 mm2; 0.23 Zolll2
further information
WM Crimping Dies
2695-0006-13-15
WM Crimping Dies
Product range
for mobile devices
Crimping copper
6 mm2/0.01 in2
further information
WM Crimping Dies
2695-1070-13-02
WM Crimping Dies
Product range
for mobile devices
Crimping copper
10/70 mm2; 0.015/0.11 Zolll2
further information
WM Crimping Dies
2695-1070-13-16
WM Crimping Dies
Product range
for mobile devices
Crimping copper
10/70 mm2; 0.015/0.11 Zolll2
further information
WM Crimping Dies
2695-1635-13-03
WM Crimping Dies
Product range
for mobile devices
Crimping copper
16/35 mm2; 0.025/0.055 Zolll2
further information
WM Crimping Dies
2695-1635-13-17
WM Crimping Dies
Product range
for mobile devices
Crimping copper
16/35 mm2; 0.025/0.055 Zolll2
further information
WM Crimping Dies
2695-2550-13-04
WM Crimping Dies
Product range
for mobile devices
Crimping copper
25/50 mm2; 0.04/0.08 Zolll2
further information
WM Crimping Dies
2695-2550-13-18
WM Crimping Dies
Product range
for mobile devices
Crimping copper
25/50 mm2; 0.04/0.08 Zolll2
further information
WM Crimping Dies
2695-0095-13-05
WM Crimping Dies
Product range
for mobile devices
Crimping copper
95 mm2; 0.15 Zolll2
further information
WM Crimping Dies
2695-0095-13-19
WM Crimping Dies
Product range
for mobile devices
Crimping copper
95 mm2; 0.15 Zolll2
further information
WM Crimping Dies
2695-0120-13-06
WM Crimping Dies
Product range
for mobile devices
Crimping copper
120 mm2; 0.185 Zolll2
further information
WM Crimping Dies
2695-0120-13-20
WM Crimping Dies
Product range
for mobile devices
Crimping copper
120 mm2; 0.185 Zolll2
further information
WM Crimping Dies
2695-0150-13-07
WM Crimping Dies
Product range
for mobile devices
Crimping copper
150 mm2; 0.23 Zolll2
further information
WM Crimping Dies
2695-0185-13-08
WM Crimping Dies
Product range
for mobile devices
Crimping copper
185 mm2; 0.285 Zolll2
further information
WM Crimping Dies
2695-0240-13-09
WM Crimping Dies
Product range
for mobile devices
Crimping copper
240 mm2; 0.37 Zolll2
further information
Cable Cutting Dies
2695-0012-03-54
Cable Cutting Dies
Product range
for mobile devices
Type
for stranded conductors
further information
Save as PDF Save as PDF Direct request
Manually Operated Hydraulic Crimping Tool 240
Manually Operated Hydraulic Crimping Tool 240
For crimping cable lugs and joint connectors
Tool opens automatically when maximum pressure is reached = guaranteed quality.
180° pivot tilt crimping head
2-stage hydraulic pump for quick crimping
With safety valve
An insert for cutting stranded Al and Cu cables up to an external diameter of 12 mm is available upon request.
Short design, lightweight and easy to handle
Art No.
Crimping range
Cutting up to
Remember
2695-0185-03-00
from 6 up to 240 mm2; 0.009 bis 0.37"2
ø 12 mm/0,47"
