2671-7400-04-00

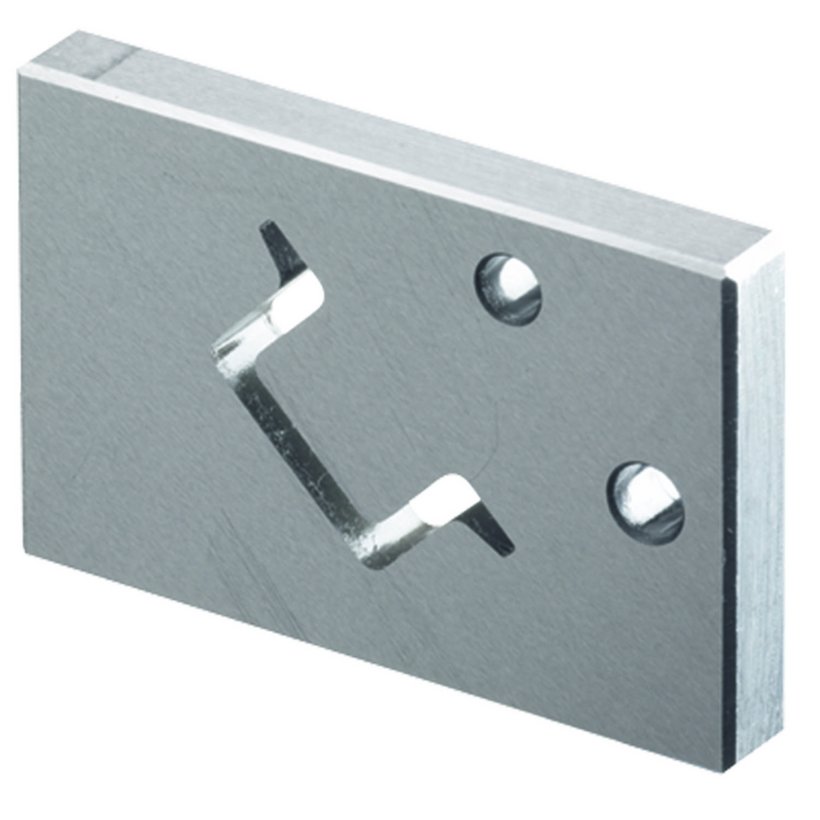

Shear Plates for Profile Shears/DIN Rail Cutter 2671
- Long service life
- Burr-free cutting to length
Product description
Shear plates for cutting profile rails DIN EN 60715 with profile shears/DIN rail cutter type 2671
One profile can be cut off per shear plate set
The lifetime can be doubled by changing the shear plates from right to left and back again.
Technical data
-
Article number: 2671-7400-04-00
-
Product family: For workshop equipment
-
For cutting to length: Mounting rail 35 x 15 x 2,3
Notice
- Each shear plate can be mounted either at the left or right side.
- 1 shear plate set, consisting of 2 pieces
2671-0100-01-00
Manually Operated Profile Shears/DIN Rail Cutter 2671
Material
Sheet steel, aluminum
Material thickness
DIN rail dimensions: Sheet steel up to 35x18x2 mm / 1.38x0.71x0.08”; aluminum up to 35x18x2 mm / 1.38x0.71x0.08”
Punching
Up to ø 7 mm / 0.28“ or oblong hole 6.3x9 mm / 0.25x0.35“
2671-0200-01-00
Hydraulic profile shears 2671
Material
Sheet steel, aluminum
Material thickness
Profile dimensions: sheet steel up to 35x15x2 mm / 1.38x0.59x0.08”, aluminum up to 35x15x2 mm /1.38x0.59x0.08”
Punching
Up to ø 7 mm / 0.28“ or oblong hole 6.3x9 mm / 0.25x0.35“
Mounting instructions:
