2671-0200-01-00

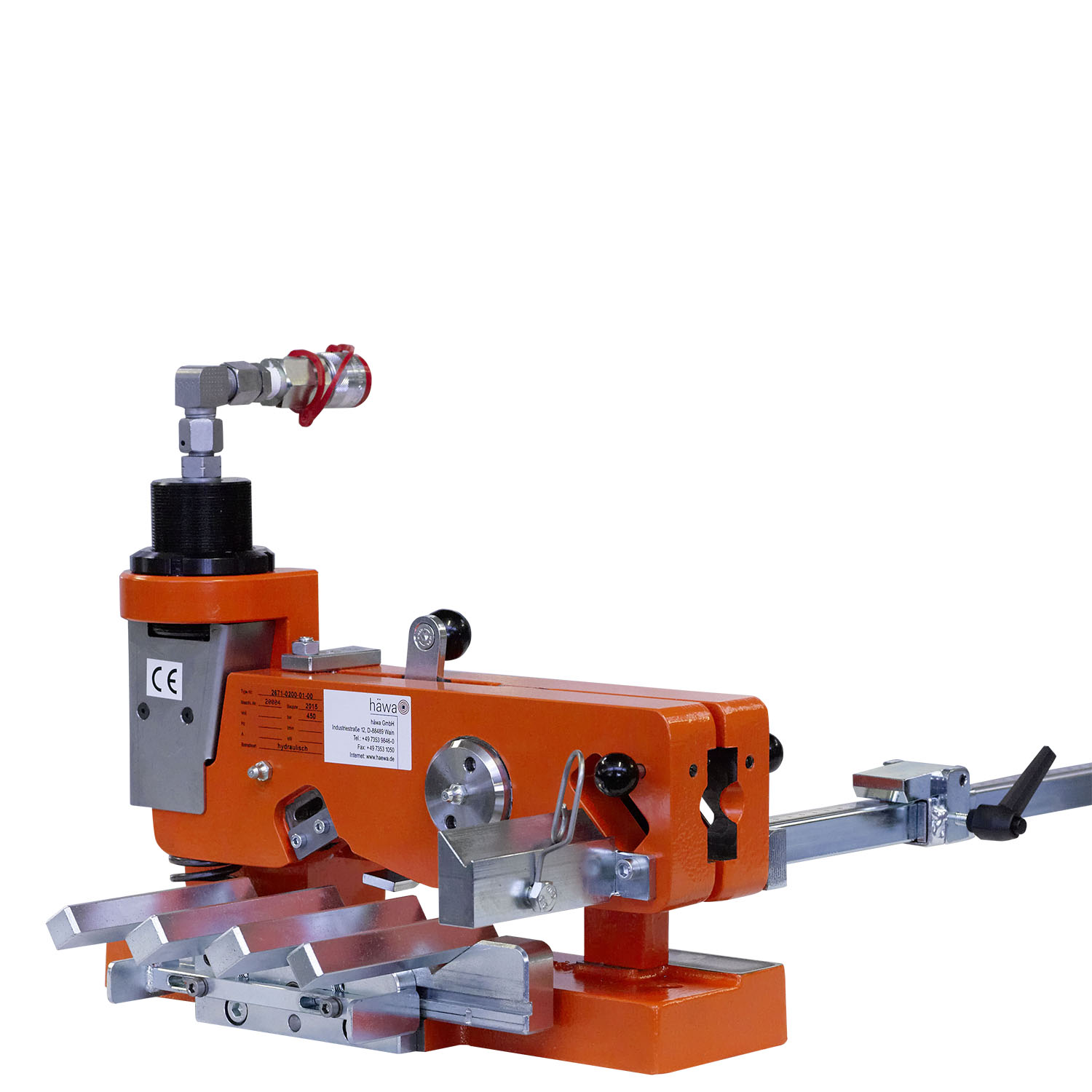

Hydraulic profile shears 2671
- Low-noise and burr-free cutting to length
- Max. profile dimensions 35x15x2 mm /1.38x0.59x0.08”
- With punch function
Product description
Profile shears with hydraulic cylinder for waste-free cutting of sheet steel and aluminum profile rails
Can be connected to the häwa electric or air hydraulic pump
Easy shear blade exchange
Precise feeding for profile rail cutting to length and punching
Punching with integrated fixed stop (9 mm / 0.34“ distance)
See accessories for adjustable stops
Technical data
-
Article number: 2671-0200-01-00
-
EINSATZBEREICH: Cutting to length + punching of DIN rails
-
holes: Up to ø 7 mm / 0.28“ or oblong hole 6.3x9 mm / 0.25x0.35“
-
Max. Sheet thickness: Sheet steel 2 mm; 14 ga / Aluminum 2 mm; 12 ga
-
Material: Sheet steel, aluminum
-
MATERIALSTAERKE_DICT: Profile dimensions: sheet steel up to 35x15x2 mm / 1.38x0.59x0.08”, aluminum up to 35x15x2 mm /1.38x0.59x0.08”
-
Length stop: For cutting to length: Continuously adjustable up to 1000 mm / 39.37”
-
Max. operating pressure: 450 bar
-
Weight: 29 kg
- Profile shears/DIN rail cutter with hydraulic cylinder and 1 m / 39.37“ length stop for cutting to length
- Feeder for cutting and punching
- Fixed stop
2671-0000-10-00
Length Stop for Cutting for Profile Shears/DIN Rail Cutter
Product range
For workshop equipment
Version
For Profile Shears/DIN Rail Cutter 2671
Setting range from
55 mm
Setting range to
1000 mm
2671-0700-02-00
Length Stop for Cutting for Profile Shears/DIN Rail Cutter
Product range
For workshop equipment
Version
For Profile Shears/DIN Rail Cutter 2671
Type
with additional height adjustable floor support
Setting range from
55 mm
Setting range to
2000 mm
2671-0700-01-00
Length Stop for Punching for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
Setting range from
25 mm
Setting range to
500 mm
2671-0700-03-00
Length Stop for Punching for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
Setting range from
25 mm
Setting range to
1000 mm
2671-7400-01-00
Shear Plates for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
For cutting
Mounting rail G32 32 x 15 x 1.5
2671-7400-02-00
Shear Plates for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
For cutting
Mounting rail 35 x 15 x 1.5
2671-7400-03-00
Shear Plates for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
For cutting
Mounting rail 35 x 7.5 x 1
2671-7400-04-00
Shear Plates for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
For cutting
Mounting rail 35 x 15 x 2,3
2671-7400-05-00
Shear Plates for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
For cutting
Mounting rail 15 x 5 x 1
2671-7400-06-00
Shear Plates for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
For cutting
Mounting rail 35 x 10 x 1,5
2671-7400-07-00
Shear Plates for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
For cutting
Mounting rail C30 30 x 15 x 1,5
2671-7400-08-00
Shear Plates for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
For cutting
Mounting rail C35 35/16/18 - 1,5
2671-7400-09-00
Shear Plates for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
2671-7400-09-01
Shear Plates for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
2671-7700-03-42
Punching Tools for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
Size ø
4.2 mm
Max. sheet metal thickness
2 mm/0,08"
2671-7700-04-53
Punching Tools for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
Size ø
5.3 mm
Max. sheet metal thickness
2 mm/0,08"
2671-7700-02-65
Punching Tools for Profile Shears/DIN Rail Cutter 2671
Product range
For workshop equipment
Long hole
6,3x8 mm/0,25x0,31"
Max. sheet metal thickness
2 mm/0,08"
2671-0900-21-20
Rubber Wiper for Section Shears 2671
Product range
For workshop equipment
Version
Suitable for all punching tools of section shears 2671
2612-7500-00-00
Air Hydraulic Pump
Operating pressure
max.
500 bar
Air connection
factory-set to min. 6 bar
Flow rate
0.8 l/min
Usable oil capacity
2.1 l
2611-0400-00-00
Electric Hydraulic Pump
Operating pressure
max.
450 bar
Electrical connection
400 V / 50 Hz
Capacity
1.17 l/min
Usable oil capacity
1.5 l
2671-0000-10-00
Length Stop for Cutting for Profile Shears/DIN Rail Cutter
Product range
For workshop equipment
Version
For Profile Shears/DIN Rail Cutter 2671
Setting range from
55 mm
Setting range to
1000 mm
Mounting instructions:

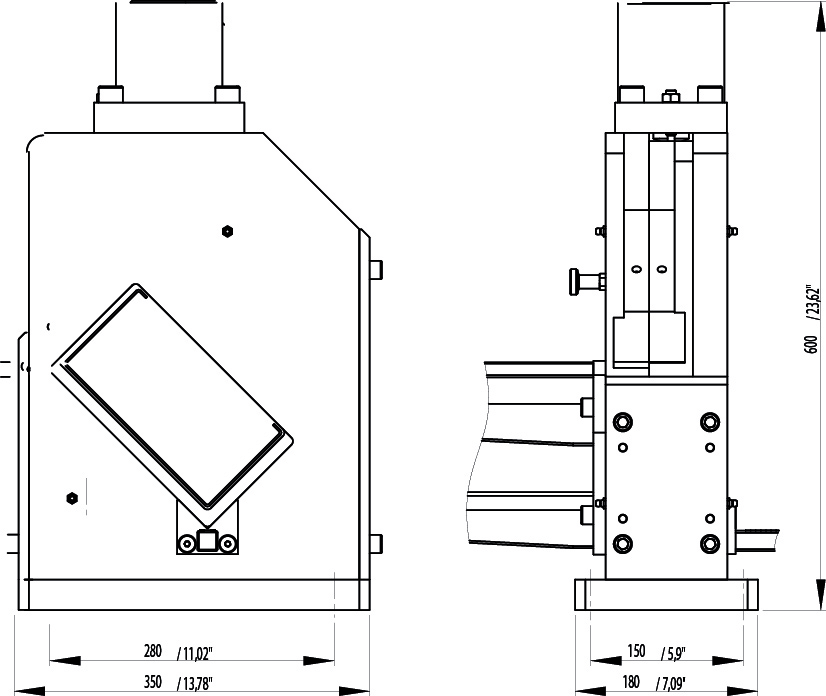

CAD data and other illustrations:
