2642-0922-30-00

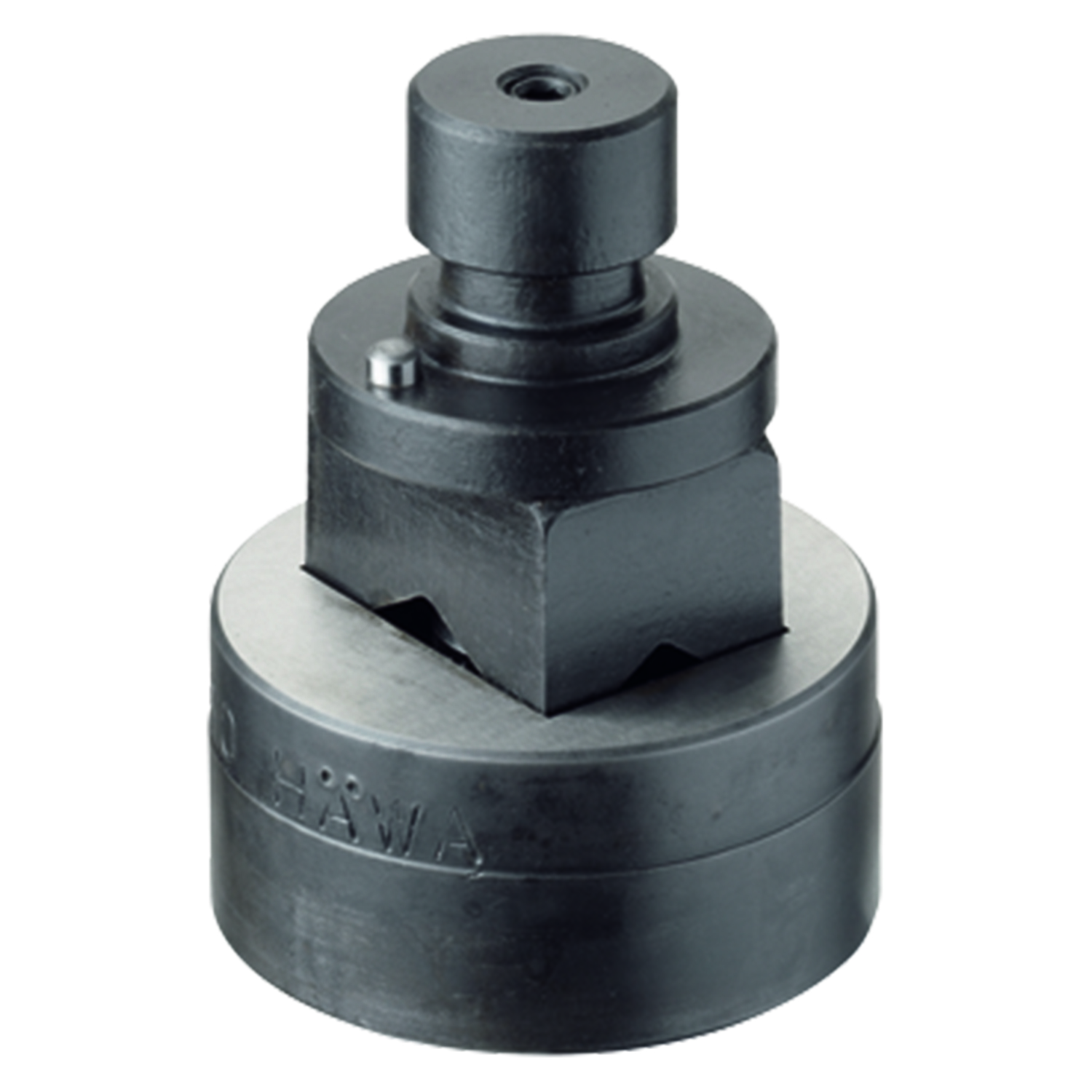

Rectangular Punch for Maxi-Press 500
- Long lifetime
- Maximum productivity with minimum effort
- Tool can be rotated by 90°
Product description
For the use in bow punches
Low tool wear through optimum cutting geometry
Quick, precise and burr-free punching
Technical data
-
Article number: 2642-0922-30-00
-
Max. Sheet thickness: Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
-
Product family: For workshop equipment
-
PRODUKTGRUPPENNAMEEBENE6: Rectangular punches
-
Clamping spigot: ø 20 mm/0,79"
-
Size: 22 x 30 mm; 0.87 x 1.18"
-
Die mounting diameter: 50 mm
Notice
- Before selecting this punch, check if you already have the required intermediate ring 2643-0250-72-00.
- 1 punch set, consisting of punch and die
2643-0250-72-00
Die Holder ø 50 mm for Maxi-Press 500
Product range
For workshop equipment
Inner diameter
50 mm
Outer diameter
72 mm
2643-7105-00-00
Hydraulic Maxi-Press 500
Suitable for
round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Processing depth
500 mm
Punch holder (diameter)
20 mm
2643-7106-00-00
Hydraulic Maxi-Press 500 with center point indicator
Suitable for
round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Processing depth
500 mm
Punch holder (diameter)
20 mm
