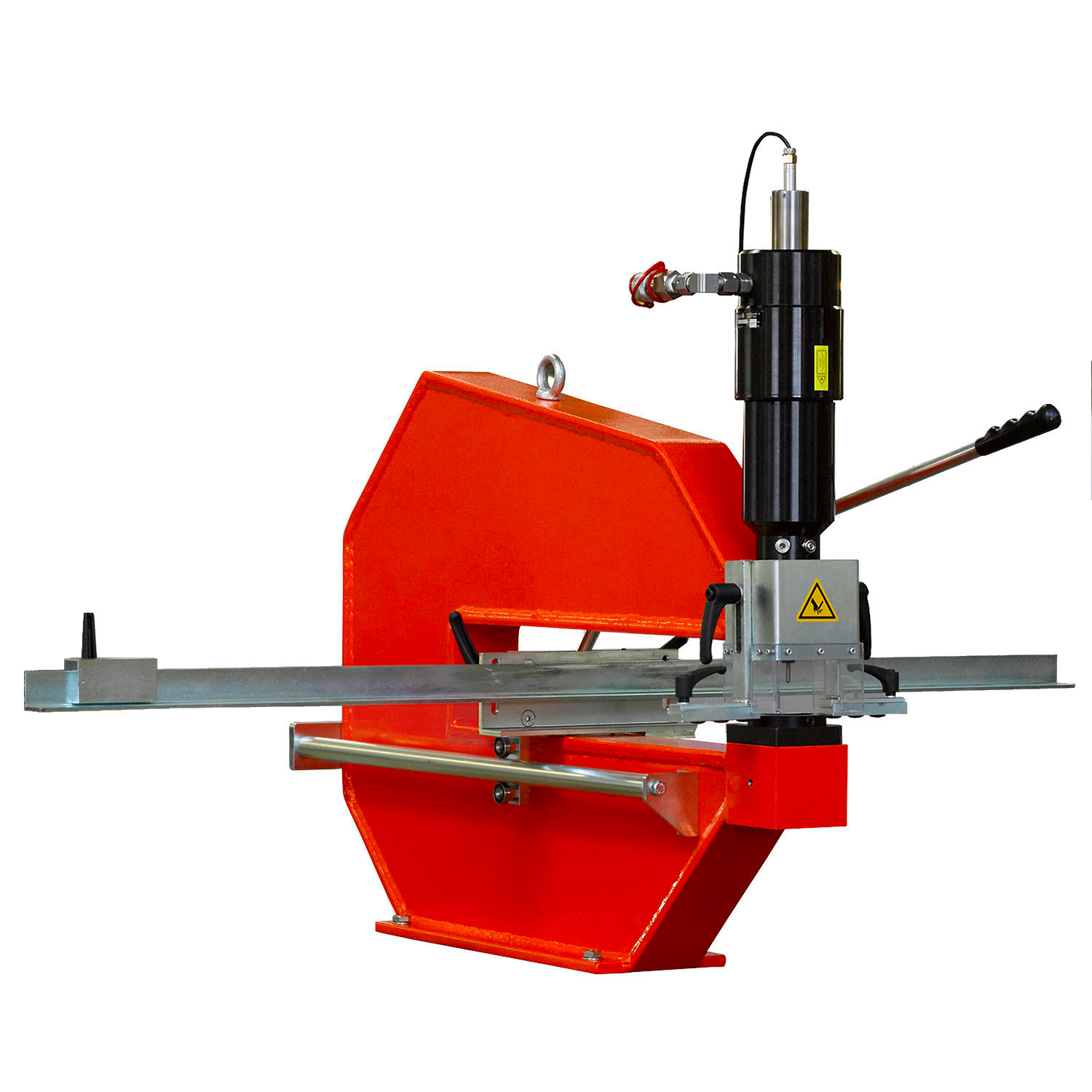

Hydraulic Maxi-Press 500 with center point indicator

2643-7106-00-00

Hydraulic Maxi-Press 500 with center point indicator

  • Useful processing depth 500 mm / 19.69”
  • “Repositioning is possible “

Product description

Hydraulically operated bow punch for quick and precise punching without pilot holes

Can be connected to the häwa electric or air hydraulic pump

For punching flat and up to 30 mm; 1.18" flanged sheet metals

Center point indicator via laser diode

With transparent finger guard with wiper function. Scraps up to ø 63.5 mm drop down to the bottom

Prepared for mounting of a length and depth stop (see accessories)

Technical data

  • Article number: 2643-7106-00-00
  • EINSATZBEREICH: Punching of cut-outs
  • Material: sheet steel, stainless steel, aluminium
  • Can be used for: round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal
  • MATERIALSTAERKE_DICT: Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
  • ax. punching forcet: 85 kN
  • Cylinder stroke: 42 mm
  • Processing depth: 500 mm
  • Stamp holder diameter: 20 mm
  • Max. operating pressure: 450 bar
  • Weight: 93 kg

Notice

  • Maxi-Press 500 (prepared for mounting of a center point indicator: 2643-7105-00-00.
  • Maxi-Press 500 with hydraulic cylinder and mounted center point indicator
  • Adapter for holding punches
  • Die holder for dies with an external diameter of 72 mm
  • Die holder ø 50 mm for Maxi-Press 500
  • Finger guard with wiper function
Square Punch for Maxi-Press 500
2642-0422-20-00
Square Punch for Maxi-Press 500
Product range
For workshop equipment
Size
22,2 x 22,2 mm; 0,87 x 0,87"
Max. sheet metal thicknesse
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Die - external diameter
50 mm
further information
Square Punch for Maxi-Press 500
2642-0425-40-00
Square Punch for Maxi-Press 500
Product range
For workshop equipment
Size
25,4 x 25,4 mm; 1 x 1"
Max. sheet metal thicknesse
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Die - external diameter
50 mm
further information
Square Punch for Maxi-Press 500
2643-0946-00-00
Square Punch for Maxi-Press 500
Product range
For workshop equipment
Size
46 x 46 mm; 1.81 x 1.81"
Max. sheet metal thicknesse
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
further information
Rectangular Punch for Maxi-Press 500
2642-0922-30-00
Rectangular Punch for Maxi-Press 500
Product range
For workshop equipment
Size ø
22 x 30 mm; 0.87 x 1.18"
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Die - external diameter
50 mm
further information
Round Punch with Two Keyways for Maxi-Press 500
2643-0922-52-01
Round Punch with Two Keyways for Maxi-Press 500
Product range
For workshop equipment
Diameter dimensions
22.5 mm
Max. sheet metal thickness
Steel 2 mm; 14ga / Stainless steel 1,5 mm; 16ga / Aluminum 3 mm; 9 ga
Die - external diameter
50 mm
further information
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0205-00-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
5 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
further information
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0206-60-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
6.6 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
further information
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0209-00-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
9 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
further information
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0210-50-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
10.5 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
further information
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0212-20-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
12.2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
further information
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0212-70-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
12.7 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
further information
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0215-20-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
15.2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
further information
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0216-20-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
16.2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
further information
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0218-60-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
18.6 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Die - external diameter
50 mm
further information
Round Punches with 50 mm External Die Diameter
2661-0220-20-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
20.2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
further information
Round Punches with 50 mm External Die Diameter
2661-0220-40-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
20.4 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
further information
Round Punches with 50 mm External Die Diameter
2661-0221-30-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
21.3 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
further information
Round Punches with 50 mm External Die Diameter
2661-0222-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
22.5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
further information
Round Punches with 50 mm External Die Diameter
2661-0224-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
24.5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
further information
Round Punches with 50 mm External Die Diameter
2661-0225-20-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
25.2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
further information
Round Punches with 50 mm External Die Diameter
2661-0228-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
28.5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
further information
Round Punches with 50 mm External Die Diameter
2661-0230-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
30.5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
further information
Round Punches with 50 mm External Die Diameter
2661-0232-20-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
32.2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
further information
Round Punches with 50 mm External Die Diameter
2661-0237-00-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
37 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm
further information
Round Punches with 72 mm External Die Diameter
2643-0240-20-00
Round Punches with 72 mm External Die Diameter
Product range
For workshop equipment
Type
For Maxi-Press 500
Diameter dimensions
40.2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
72 mm
further information
Round Punches with 72 mm External Die Diameter
2643-0245-50-00
Round Punches with 72 mm External Die Diameter
Product range
For workshop equipment
Type
For Maxi-Press 500
Diameter dimensions
45.5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
72 mm
further information
Round Punches with 72 mm External Die Diameter
2643-0247-00-00
Round Punches with 72 mm External Die Diameter
Product range
For workshop equipment
Type
For Maxi-Press 500
Diameter dimensions
47 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
72 mm
further information
Round Punches with 72 mm External Die Diameter
2643-0250-20-00
Round Punches with 72 mm External Die Diameter
Product range
For workshop equipment
Type
For Maxi-Press 500
Diameter dimensions
50.2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
72 mm
further information
Round Punches with 72 mm External Die Diameter
2643-0253-90-00
Round Punches with 72 mm External Die Diameter
Product range
For workshop equipment
Type
For Maxi-Press 500
Diameter dimensions
53.9 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
72 mm
further information
Round Punches with 72 mm External Die Diameter
2643-0260-00-00
Round Punches with 72 mm External Die Diameter
Product range
For workshop equipment
Type
For Maxi-Press 500
Diameter dimensions
60 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
72 mm
further information
Round Punches with 72 mm External Die Diameter
2643-0263-20-00
Round Punches with 72 mm External Die Diameter
Product range
For workshop equipment
Type
For Maxi-Press 500
Diameter dimensions
63.2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
72 mm
further information
Round Punch with Stepped Die
2661-0240-20-00
Round Punch with Stepped Die
Product range
For workshop equipment
Size ø
40.2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm, step die
further information
Round Punch with Stepped Die
2661-0250-20-00
Round Punch with Stepped Die
Product range
For workshop equipment
Size ø
50.2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm, step die
further information
Round Punch with Stepped Die
2661-0263-20-00
Round Punch with Stepped Die
Product range
For workshop equipment
Size ø
63.2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
50 mm, step die
further information
Die Holder ø 50 mm for Maxi-Press 500
2643-0250-72-00
Die Holder ø 50 mm for Maxi-Press 500
Product range
For workshop equipment
Inner diameter
50 mm
Outer diameter
72 mm
further information
Adapter for Maxi-Press 500
2642-0314-00-00
Adapter for Maxi-Press 500
Product range
For workshop equipment
Clamping pin
ø 20 mm/0,79"
Punch holder thread
M14x1,5
further information
Length and Depth Stop for Maxi-Press 500
2643-0700-01-00
Length and Depth Stop for Maxi-Press 500
Product range
For workshop equipment
Setting range
Adjustable up to 600 mm on both sides of the cylinder
further information
Hydraulic Cylinder for Maxi-Press 500
2643-7100-81-05
Hydraulic Cylinder for Maxi-Press 500
Product range
For workshop equipment
Punch holder
ø 20 mm; 0.79“
further information
Reduction Adapter Clamping Pin
2642-0313-20-00
Reduction Adapter Clamping Pin
Product range
For workshop equipment
Version
for Quick-Press 400 and for Maxi-Press 500
Inner diameter
13 mm
Outer diameter
20 mm
further information
Swivel Door Support for Bow Punch
2600-9500-00-02
Swivel Door Support for Bow Punch
Product range
For workshop equipment
Working height
Continuously adjustable 1.000 – 1.200 mm / 39.37" - 47.24"
Workpiece dimensions
max. 800 x 2.000 mm/ 31.5" x 78.74"
Workpiece weight
max. 45 kg; 99.2 lbs
further information
Spot Laser Diode Module
2600-2000-00-04
Spot Laser Diode Module
Product range
For workshop equipment
Version
For Quick-Press 300 and Maxi-Press 500 hydraulic cylinder of the latest generation
Required input voltage
3 V DC
further information
Power Supply Unit 3V DC
2600-2000-60-04
Power Supply Unit 3V DC
Product range
For workshop equipment
Version
For Quick-Press 300 and Maxi-Press 500 hydraulic cylinder of the latest generation
Electrical connection
230 V / 50 Hz
further information
Plastic Set Screw M5x6
2600-2000-20-02
Plastic Set Screw M5x6
Product range
For workshop equipment
Version
For Quick-Press 300 and Maxi-Press 500 hydraulic cylinder of the latest generation
further information
Laser adjustment aid
2600-2000-30-00
Laser adjustment aid
Product range
For workshop equipment
further information
Air Hydraulic Pump
2612-7500-00-00
Air Hydraulic Pump
Operating pressure
max. 500 bar
Air connection
factory-set to min. 6 bar
Flow rate
0.8 l/min
Usable oil capacity
2.1 l
further information
Electric Hydraulic Pump
2611-0400-00-00
Electric Hydraulic Pump
Operating pressure
max. 450 bar
Electrical connection
400 V / 50 Hz
Capacity
1.17 l/min
Usable oil capacity
1.5 l
further information
Spot Laser Diode Module
2600-2000-00-04
Spot Laser Diode Module
Product range
For workshop equipment
Version
For Quick-Press 300 and Maxi-Press 500 hydraulic cylinder of the latest generation
Required input voltage
3 V DC
further information
Plastic Set Screw M5x6
2600-2000-20-02
Plastic Set Screw M5x6
Product range
For workshop equipment
Version
For Quick-Press 300 and Maxi-Press 500 hydraulic cylinder of the latest generation
further information
Power Supply Unit 3V DC
2600-2000-60-04
Power Supply Unit 3V DC
Product range
For workshop equipment
Version
For Quick-Press 300 and Maxi-Press 500 hydraulic cylinder of the latest generation
Electrical connection
230 V / 50 Hz
further information
Finger Guard + Wiper
2642-0202-01-00
Finger Guard + Wiper
Product range
For workshop equipment
further information
Adapter for Maxi-Press 500
2642-0314-00-00
Adapter for Maxi-Press 500
Product range
For workshop equipment
Clamping pin
ø 20 mm/0,79"
Punch holder thread
M14x1,5
further information
Hydraulic Cylinder for Maxi-Press 500
2643-7100-81-05
Hydraulic Cylinder for Maxi-Press 500
Product range
For workshop equipment
Punch holder
ø 20 mm; 0.79“
further information
Save as PDF Save as PDF Direct request
Hydraulic Maxi-Press 500 with center point indicator
Hydraulic Maxi-Press 500 with center point indicator
Hydraulically operated bow punch for quick and precise punching without pilot holes
Can be connected to the häwa electric or air hydraulic pump
For punching flat and up to 30 mm; 1.18" flanged sheet metals
Center point indicator via laser diode
With transparent finger guard with wiper function. Scraps up to ø 63.5 mm drop down to the bottom
Prepared for mounting of a length and depth stop (see accessories)
Art No.
Suitable for
Max. sheet metal thickness
Processing depth
Punch holder (diameter)
Remember
2643-7106-00-00
round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
500 mm
20 mm
Contact for products
Find your personal point of contact
We are happy to help you.

The best switch cabinets and casings are not produced on an assembly line, but rather designed in close cooperation with our customers. Are you ready to begin? Then contact your personal häwa consultant.

Choose your advisor now

Share this page
