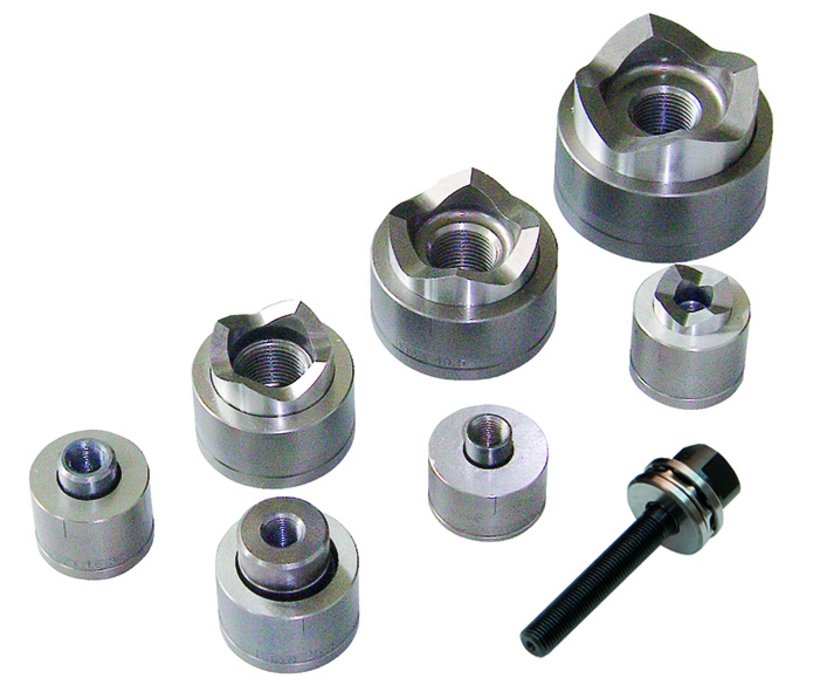

Round Punch Kit, from PG7 to PG21 + ø 30.5 mm
- Long lifetime
- Maximum productivity with minimum effort
Product description
For punching with pumps or with draw studs for manual operation.
Low tool wear through optimum cutting geometry.
Easy removal of the deformed waste piece.
Quick, precise and burr-free punching.
For operating the punch, you require a 9.5 mm (3/8”) draw stud.
Technical Data
-
Order No.: 2683-7812-30-20
-
Max. sheet metal thickness: Steel 3 mm; 11 ga
-
PRODUKTFAMILIE: for mobile devices
-
Draw stud: ø 9,5 mm / 3/8"
-
Size: PG round punch in PG: 7;9;11;13;16;21 and ø 30.5 mm
-
Weight: 1 kg
-
Type: with draw studs
- 7 punch units, consisting of punch and die in metal case

2611-7600-01-00
Hydraulic Cylinder Power 19
Suitable for
Round punches up to ø 135 mm; 5.31“ / square punches 103 mm; 4.06“ / rectangular punches up to a diagonal size of 145 mm; 5.71“
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Screw receptacle
19 mm (3/4”) draw studs
Cylinder stroke
40 mm

2611-7600-02-00
Hydraulic Cylinder Power 25
Suitable for
Round punches up to ø 185 mm; 7.28“ / square punches 140 mm; 5.51“ / rectangular punches up to a diagonal size of 195 mm; 7.68“
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Screw receptacle
Thread M25 x 1,5
Cylinder stroke
40 mm

2684-7600-01-00
Hydraulic Cylinder 19 (3/4”)
Suitable for
round punches up to ø 120 mm; 4.72" / square punches 92 mm; 3.62" / rectangular punches up to 138 mm; 5.43" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Screw receptacle
19 mm (3/4”) draw studs
Cylinder stroke
28 mm

2683-1710-62-00
Draw Stud for Manual Operation
Product range
for mobile devices
Type
with ball bearing
Size
9,5 x 53 mm/0,37 x 2,09"
Wrench Size
17 mm

2622-7200-02-00
Powerman Junior
Type
without round punches
Suitable for
round punches up to ø 50.5 mm; 1.99" / square punches up to 25.4 mm; 1" / rectangular punches up to 37.5 mm; 1.48" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Threaded for
9.5 mm (3/8”) draw stud

2622-7204-02-01
Powerman Junior
Type
with metric round punch kit
Suitable for
round punches up to ø 50.5 mm; 1.99" / square punches up to 25.4 mm; 1" / rectangular punches up to 37.5 mm; 1.48" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Threaded for
9.5 mm (3/8”) draw stud

2626-7200-01-00
Powerman Vario
Type
without punching tools in sheet metal case
Suitable for
round punches up to ø 80 mm; 3.15" / square punches up to 60 mm; 2.36" / rectangular punches up to 85 mm; 3.35" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Threaded for
19 mm (3/4”) draw studs

2626-7206-01-00
Powerman Vario
Type
PG1 with round punches from PG9 to PG21 in plastic case
Suitable for
round punches up to ø 80 mm; 3.15" / square punches up to 60 mm; 2.36" / rectangular punches up to 85 mm; 3.35" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Threaded for
19 mm (3/4”) draw studs

2626-7206-02-00
Powerman Vario
Type
PG2 with round punches from PG9 to PG29 in plastic case
Suitable for
round punches up to ø 80 mm; 3.15" / square punches up to 60 mm; 2.36" / rectangular punches up to 85 mm; 3.35" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Threaded for
19 mm (3/4”) draw studs

2626-7207-01-01
Powerman Vario
Type
with metric round punches from M12 to M50 in plastic case
Suitable for
round punches up to ø 80 mm; 3.15" / square punches up to 60 mm; 2.36" / rectangular punches up to 85 mm; 3.35" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Threaded for
19 mm (3/4”) draw studs

2684-7100-01-01
Powerman
Suitable for
round punches up to ø 120 mm; 4.72" / square punches 92 mm; 3.62" / rectangular punches up to 138 mm; 5.43" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Threaded for
19 mm (3/4”) draw studs

2685-7200-01-01
Powerman Step
Suitable for
round punches up to ø 120 mm; 4.72" / square punches 92 mm; 3.62" / rectangular punches up to 138 mm; 5.43" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Threaded for
19 mm (3/4”) draw studs

2623-0812-70-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 12,7 mm
Max. sheet metal thickness
Steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
PG
PG
7

2623-0815-20-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 15,2 mm
Max. sheet metal thickness
Steel 1,5 mm; 16 ga
Stainless steel 1 mm; 20 ga
Stainless steel 1 mm; 20 ga
Draw stud
ø 9,5 mm / 3/8"
PG
PG
9

2623-0818-60-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 18,6 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
PG
PG
11

2623-0820-40-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 20,4 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"
PG
PG
13.5

2623-0822-50-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 22,5 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"
PG
PG
16

2623-0828-50-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 28,5 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
PG
PG
21

2623-0830-51-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 30,5 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"

2626-0000-01-00
Case for Hydraulic Pump
Product range
for mobile devices
Type
Powerman Vario
Version
Empty sheet metal case
Dimension
390 x 150 x 85 mm/15,35" x 5,91" x 3,35"

2683-1710-62-00
Draw Stud for Manual Operation
Product range
for mobile devices
Type
with ball bearing
Size
9,5 x 53 mm/0,37 x 2,09"
Wrench Size
17 mm
