2622-7200-02-00

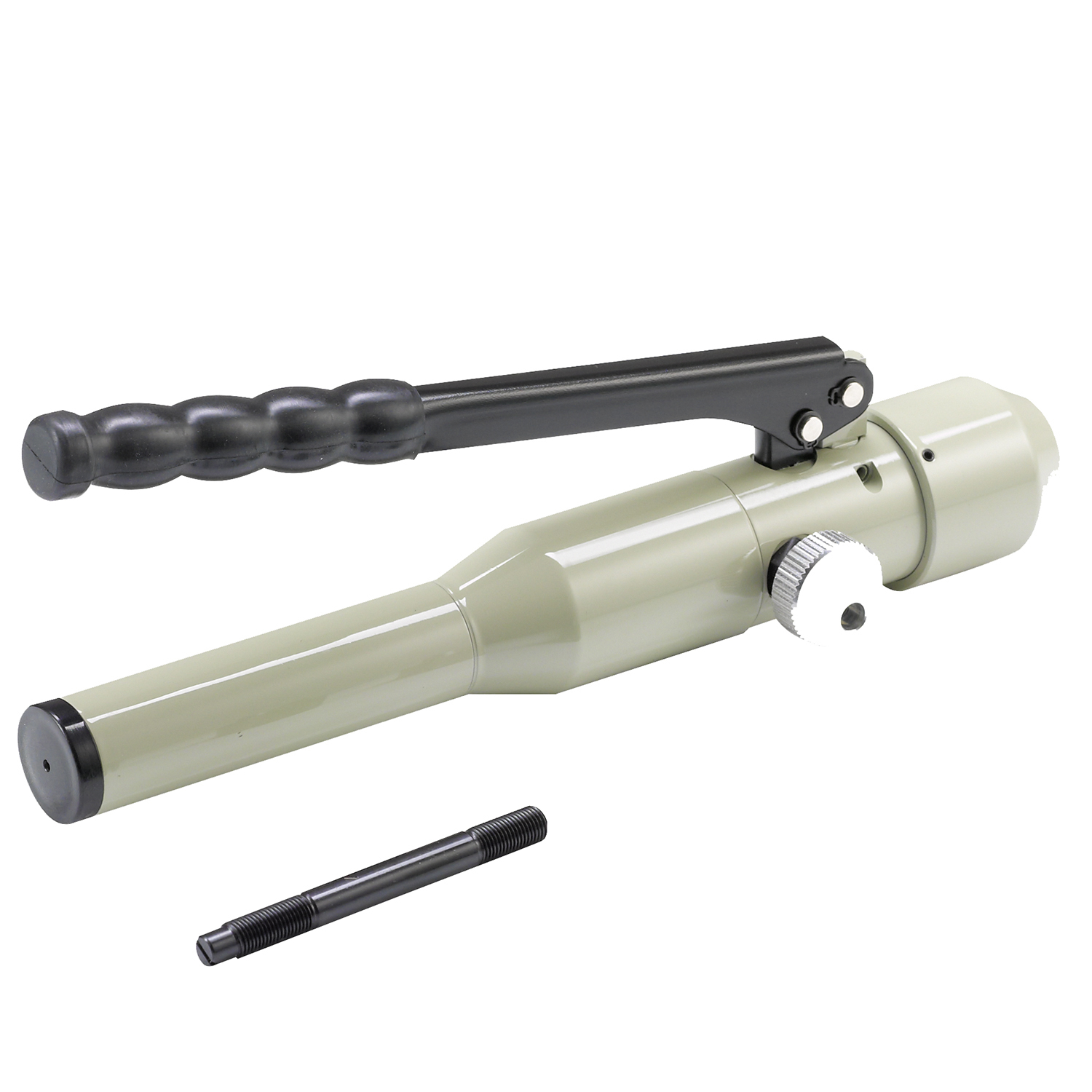

Powerman Junior
- One-man operation
- Max. punching: ø 50 mm
Product description
Manually operated hydraulic pump
Pump threaded for 9.5 mm (3/8”)draw stud
For punching sheet steel, stainless steel and aluminum
Available draw studs: for punches threaded for 6,3 mm; 1/4", 9,5 mm; 3/8", 11,1 mm; 7/16" and 19 mm; 3/4"
Technical Data
-
Order No.: 2622-7200-02-00
-
Application: Punching of cut-outs
-
PRODUKTFAMILIE: for mobile devices
-
Material: sheet steel, stainless steel, aluminium
-
Type: without round punches
-
Suitable for: round punches up to ø 50.5 mm; 1.99" / square punches up to 25.4 mm; 1" / rectangular punches up to 37.5 mm; 1.48" diagonal
-
Material thickness: Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
-
Punching force: 40 kN
-
Piston stroke: 13 mm
-
Threaded for: 9.5 mm (3/8”) draw stud
-
Pump dimensions: ø 52x300 mm
-
Oil filling volume: 0.11 l
-
Weight: 2.35 kg
Notice
- The spacer sleeve type 2622-0719-03-00 is required for round punches threaded for 19 mm; 3/4" draw studs.
- If punching tools (round, rectangular, square, shaped punches) should be used for applications exceeding the technical specifications (" Suitable for" and "Max. sheet metal thickness" → see "Technical Data"), an individual clarification is required. Please contact your local sales department.
- Powerman Junior
- 1 draw stud (stud with 2x ø 9.5 mm (3/8”) thread)
- In cardboard box

2623-0828-30-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 28,3 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
Ø 19 mm / 3/4"
PG
PG
21

2623-0830-50-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 30,5 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"

2623-0832-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 32 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"

2623-0832-20-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 32,2 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"

2623-0834-10-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 34,1 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"

2623-0835-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
35 mm/1,38"
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"

2623-0837-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 37 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
PG
PG
29

2623-0838-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
38 mm/1,50"
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"

2623-0840-20-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 40,2 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"

2623-0841-20-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 41,2 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"

2623-0843-30-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 43,3 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"

2623-0845-50-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 45,5 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"

2623-0847-00-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 47 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
PG
PG
36

2623-0850-20-00
Round Punch Threaded for Ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 50,2 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Stainless steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"

2682-0815-20-25
Round Punch Plus Threaded for ø 9.5 mm (3/8”) Draws Studs
Product range
for mobile devices
Size
ø 15,2 mm
Max. sheet metal thickness
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
PG
PG
9

2682-0816-20-25
Round Punch Plus Threaded for ø 9.5 mm (3/8”) Draws Studs
Product range
for mobile devices
Size
ø 16,2 mm
Max. sheet metal thickness
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"

2682-0818-60-25
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
Product range
for mobile devices
Size
ø 18,6 mm
Max. sheet metal thickness
Stainless steel 2 mm; 14 ga
Draw stud
ø 11,1 mm
PG
PG
11

2682-0820-20-25
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
Product range
for mobile devices
Size
ø 20,2 mm
Max. sheet metal thickness
Stainless steel 2 mm; 14 ga
Draw stud
ø 11,1 mm
PG
PG
13.5

2682-0820-40-25
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
Product range
for mobile devices
Size
ø 20,4 mm
Max. sheet metal thickness
Stainless steel 2 mm; 14 ga
Draw stud
ø 11,1 mm
PG
PG
13.5

2682-0822-50-25
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
Product range
for mobile devices
Size
ø 22,5 mm
Max. sheet metal thickness
Stainless steel 2 mm; 14 ga
Draw stud
ø 11,1 mm
PG
PG
16

2682-0825-20-25
Round Punch Plus Threaded for ø 11.1 mm Draw Studs
Product range
for mobile devices
Size
ø 25,2 mm
Max. sheet metal thickness
Stainless steel 2 mm; 14 ga
Draw stud
ø 11,1 mm

2682-0828-50-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 28,5 mm
Max. sheet metal thickness
Stainless steel 2 mm; 14 ga
Draw stud
Ø 19 mm / 3/4"
PG
PG
21

2682-0830-50-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 30,5 mm
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
Draw stud
Ø 19 mm / 3/4"

2682-0832-20-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 32,2 mm
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
Draw stud
Ø 19 mm / 3/4"

2682-0837-00-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 37 mm
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
Draw stud
Ø 19 mm / 3/4"
PG
PG
29

2682-0840-20-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 40,2 mm
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
Draw stud
Ø 19 mm / 3/4"

2682-0847-00-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 47 mm
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
Draw stud
Ø 19 mm / 3/4"
PG
PG
36

2682-0850-20-25
Round Punch Plus Threaded for ø 19 mm (3/4”) Draw Studs
Product range
for mobile devices
Size
ø 50,2 mm
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
Draw stud
Ø 19 mm / 3/4"

2623-0812-20-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 12,2 mm
Max. sheet metal thickness
Steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"

2623-0812-70-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 12,7 mm
Max. sheet metal thickness
Steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
PG
PG
7

2623-0814-00-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 14 mm
Max. sheet metal thickness
Steel 1,5 mm; 16 ga
Stainless steel 1 mm; 20 ga
Stainless steel 1 mm; 20 ga
Draw stud
ø 9,5 mm / 3/8"

2623-0815-20-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 15,2 mm
Max. sheet metal thickness
Steel 1,5 mm; 16 ga
Stainless steel 1 mm; 20 ga
Stainless steel 1 mm; 20 ga
Draw stud
ø 9,5 mm / 3/8"
PG
PG
9

2623-0816-20-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 16,2 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"

2623-0817-30-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 17,3 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"

2623-0818-60-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 18,6 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
PG
PG
11

2623-0819-00-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
Ø 19 mm / 3/4"
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"

2623-0820-20-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 20,2 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"

2623-0820-40-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 20,4 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"
PG
PG
13.5

2623-0821-30-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 21,3 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"

2623-0822-50-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 22,5 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"
PG
PG
16

2623-0823-80-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 23,8 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"

2623-0824-50-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 24,5 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"

2623-0825-20-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 25,2 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"

2623-0827-00-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 27 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Stainless steel 2 mm; 14 ga
Draw stud
ø 9,5 mm / 3/8"

2623-0828-50-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 28,5 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"
PG
PG
21

2623-0830-51-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 30,5 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"

2623-0832-21-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 32,2 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"

2623-0833-30-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 33,3 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"

2623-0835-01-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
35 mm/1,38"
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"

2623-0838-11-00
Round Punch Threaded for Ø 9.5 mm (3/8”) Draw Studs
Product range
for mobile devices
Size
ø 38,1 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga
Stainless steel 1,5 mm; 16 ga
Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"

2682-7816-50-26
Round Punch Plus Kit, Metric from M16 to M50
Product range
for mobile devices
Size
metric round punch in mm: ø 16.2; ø 20.2; ø 25.2; ø 32.2; ø 40.2; ø 50.2
Max. sheet metal thickness
Stainless steel 2,5 mm; 13 ga
Draw stud
ø 9,5 mm; 3/8" / ø 11,1 mm; 7/16" / ø 19 mm; 3/4"

2623-7812-50-00
Round Punch Kit, Metric from M12 to M50
Product range
for mobile devices
Diameter dimensions
metric: metric round punches in mm: ø 12,2/0,48"; 16,2/0,64"; 20,2/0,8"; 25,2/0,99"; 32,2/1,27"; 40,2/1,58"; 50,2/1,97"
Max. sheet metal thickness
Steel 3 mm; 11 ga
Draw stud
ø 9,5 mm; 3/8" / ø 19 mm; 3/4"
Type
without draw studs

2683-7812-50-20
Round Punch Kit, Metric from M12 to M50
Product range
for mobile devices
Diameter dimensions
metric: metric round punches in mm: ø 12,2/0,48"; 16,2/0,64"; 20,2/0,8"; 25,2/0,99"; 32,2/1,27"; 40,2/1,58"; 50,2/1,97"
Max. sheet metal thickness
Steel 3 mm; 11 ga
Draw stud
ø 9,5 mm; 3/8" / ø 19 mm; 3/4"
Type
with draw studs

2623-7812-30-00
Round Punch Kit, from PG7 to PG21 + ø 30.5 mm
Product range
for mobile devices
Diameter dimensions
PG round punch in PG: 7;9;11;13;16;21 and ø 30.5 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Draw stud
ø 9,5 mm / 3/8"
Type
without draw studs

2683-7812-30-20
Round Punch Kit, from PG7 to PG21 + ø 30.5 mm
Product range
for mobile devices
Diameter dimensions
PG round punch in PG: 7;9;11;13;16;21 and ø 30.5 mm
Max. sheet metal thickness
Steel 3 mm; 11 ga
Draw stud
ø 9,5 mm / 3/8"
Type
with draw studs

2623-0922-20-00
Square Punch 22.2 mm / 0.87”
Product range
for mobile devices
Size
22,2 x 22,2 mm; 0,87 x 0,87"
Max. sheet metal thickness
Steel 2 mm; 14 ga + Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"

2623-0925-40-00
Square punch 25.4
Product range
for mobile devices
Size
25,4 x 25,4 mm; 1 x 1"
Max. sheet metal thickness
Steel 2 mm; 14 ga + Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"

2623-0922-52-01
Round Punch with 2 Keyways
Product range
for mobile devices
Size
ø 22,5 mm
Max. sheet metal thickness
Steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga
Draw stud
ø 9,5 mm / 3/8"

2683-0000-00-09
Formed punch for MinD D-Sub / IEEE
Product range
for mobile devices
Number of poles
9
Size
11,3 x 19,8 mm; 0.44 x 0.78"
Max. sheet metal thickness
Steel 1,75 mm; 15ga / Stainless steel 1 mm; 20ga / Aluminum 2 mm; 12 ga
Draw stud
ø 9,5 mm / 3/8"

2683-0920-22-01
Turn Lock Shaped Punch
Product range
for mobile devices
Size
20,1 x 22,5 mm; 0.79 x 0.89"
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Draw stud
ø 9,5 mm / 3/8"

2683-0920-23-01
Turn Lock Shaped Punch
Product range
for mobile devices
Size
20,2 x 23,1 mm; 0.8 x 0.91
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Draw stud
ø 9,5 mm / 3/8"

2622-0719-02-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 19/9,5 mm/3/4"/3/8"
Screw length
130 mm

2623-0706-30-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 6,3/9,5 mm/3/8"/3/8"
Screw length
82 mm

2621-0711-10-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 11,1/9,5 mm/7/16"/3/8"
Screw length
95 mm

2622-0719-03-00
Spacer Sleeve
Product range
for mobile devices
Outer diameter
36 mm/1,42"
Inner diameter
19.5 mm
Length
18 mm

2622-0719-03-00
Spacer Sleeve
Product range
for mobile devices
Outer diameter
36 mm/1,42"
Inner diameter
19.5 mm
Length
18 mm

2623-0710-00-00
Draw Studs for Round Punches
Product range
for mobile devices
Draw stud
Ø 9,5/9,5 mm/3/8"/3/8"
Screw length
100 mm
Assembly instructions:
Contact for products
Find your personal point of contact
We are happy to help you.
The best switch cabinets and casings are not produced on an assembly line, but rather designed in close cooperation with our customers. Are you ready to begin? Then contact your personal häwa consultant.
