2683-7812-50-20

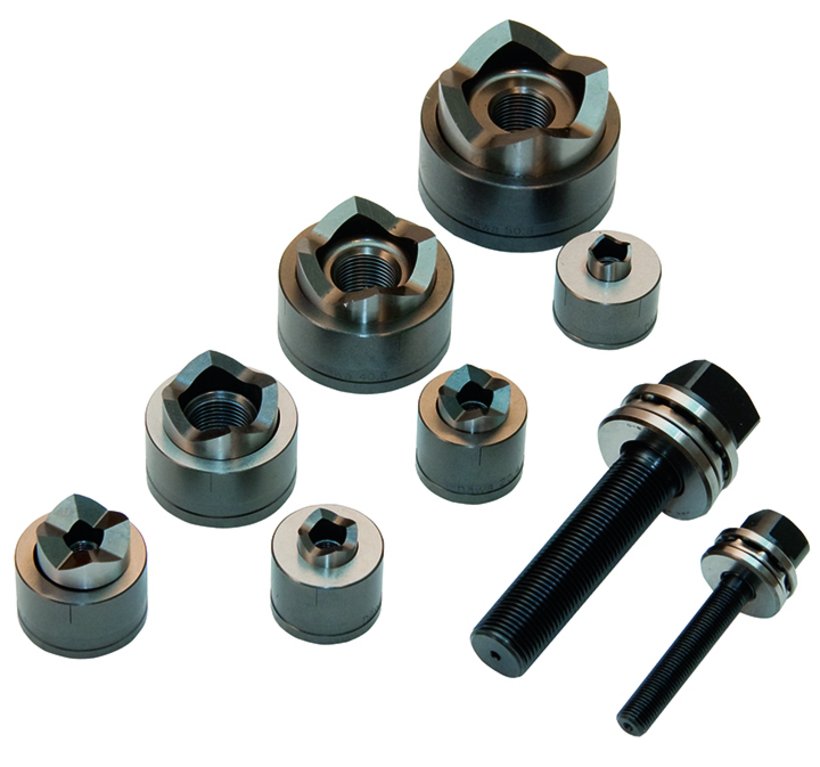

Round Punch Kit, Metric from M12 to M50
- Long lifetime
- Maximum productivity with minimum effort
Product description
For punching with pumps or with draw studs for manual operation.
Low tool wear through optimum cutting geometry.
Easy removal of the deformed waste piece.
Quick, precise and burr-free punching.
For operating the punch, you require 9.5 mm (3/8”) and 19 mm (3/4”) draw studs.
Technical data
-
Article number: 2683-7812-50-20
-
Max. Sheet thickness: Steel 3 mm; 11 ga
-
Product family: for mobile devices
-
PRODUKTGRUPPENNAMEEBENE6: Round punch kits
-
Actuating thread: ø 9,5 mm; 3/8" / ø 19 mm; 3/4"
-
Size: metric: metric round punches in mm: ø 12,2/0,48"; 16,2/0,64"; 20,2/0,8"; 25,2/0,99"; 32,2/1,27"; 40,2/1,58"; 50,2/1,97"
-
Weight: 3 kg
-
Variant: with draw studs
- 7 punch units, consisting of punch and die in metal case
2611-7600-01-00
Hydraulic Cylinder Power 19
Product range
for mobile devices
Suitable for
Round punches up to ø 135 mm; 5.31“ / square punches 103 mm; 4.06“ / rectangular punches up to a diagonal size of 145 mm; 5.71“
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Screw receptacle
19 mm (3/4”) draw studs
2611-7600-02-00
Hydraulic Cylinder Power 25
Product range
for mobile devices
Suitable for
Round punches up to ø 185 mm; 7.28“ / square punches 140 mm; 5.51“ / rectangular punches up to a diagonal size of 195 mm; 7.68“
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Screw receptacle
Thread M25 x 1,5
2684-7600-01-00
Hydraulic Cylinder 19 (3/4”)
Product range
for mobile devices
Suitable for
round punches up to ø 120 mm; 4.72" / square punches 92 mm; 3.62" / rectangular punches up to 138 mm; 5.43" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Screw receptacle
19 mm (3/4”) draw studs
2683-1710-62-00
Draw Stud for Manual Operation
Type
with ball bearing
Size
9,5 x 53 mm/0,37 x 2,09"
Wrench Size
17 mm
2683-1719-75-00
Draw Stud for Manual Operation
Type
with ball bearing
Size
19 x 75 mm
Wrench Size
27 mm
2622-7200-02-00
Powerman Junior
Type
without round punches
Suitable for
round punches up to ø 50.5 mm; 1.99" / square punches up to 25.4 mm; 1" / rectangular punches up to 37.5 mm; 1.48" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Punching force
40 kN
2622-7204-02-01
Powerman Junior
Type
with metric round punch kit
Suitable for
round punches up to ø 50.5 mm; 1.99" / square punches up to 25.4 mm; 1" / rectangular punches up to 37.5 mm; 1.48" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Punching force
40 kN
2626-7200-01-00
Powerman Vario
Type
without round punches in sheet metal case
Suitable for
round punches up to ø 80 mm; 3.15" / square punches up to 60 mm; 2.36" / rectangular punches up to 85 mm; 3.35" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punching force
50 kN
2626-7206-01-00
Powerman Vario
Type
PG1 with round punches from PG9 to PG21 in plastic case
Suitable for
round punches up to ø 80 mm; 3.15" / square punches up to 60 mm; 2.36" / rectangular punches up to 85 mm; 3.35" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punching force
50 kN
2626-7206-02-00
Powerman Vario
Type
PG2 with round punches from PG9 to PG29 in plastic case
Suitable for
round punches up to ø 80 mm; 3.15" / square punches up to 60 mm; 2.36" / rectangular punches up to 85 mm; 3.35" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punching force
50 kN
2626-7207-01-01
Powerman Vario
Type
with metric round punches from M12 to M50 in plastic case
Suitable for
round punches up to ø 80 mm; 3.15" / square punches up to 60 mm; 2.36" / rectangular punches up to 85 mm; 3.35" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punching force
50 kN
2684-7100-01-01
Powerman
Suitable for
round punches up to ø 120 mm; 4.72" / square punches 92 mm; 3.62" / rectangular punches up to 138 mm; 5.43" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punching force
65 kN
2685-7200-01-01
Powerman Step
Suitable for
round punches up to ø 120 mm; 4.72" / square punches 92 mm; 3.62" / rectangular punches up to 138 mm; 5.43" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punching force
65 kN
