3353-1012-01-00

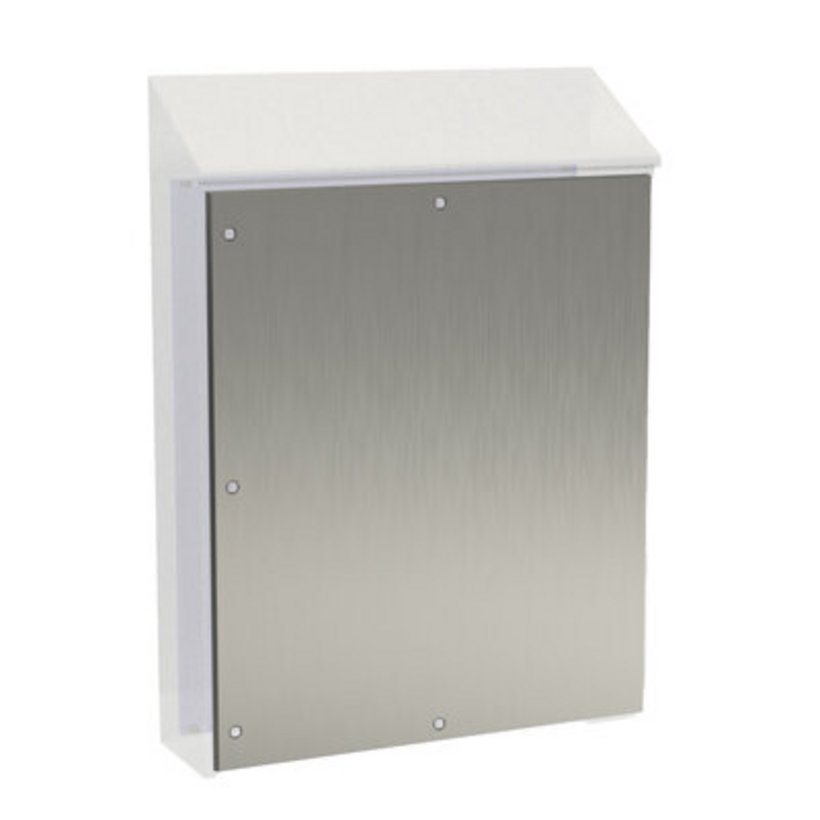

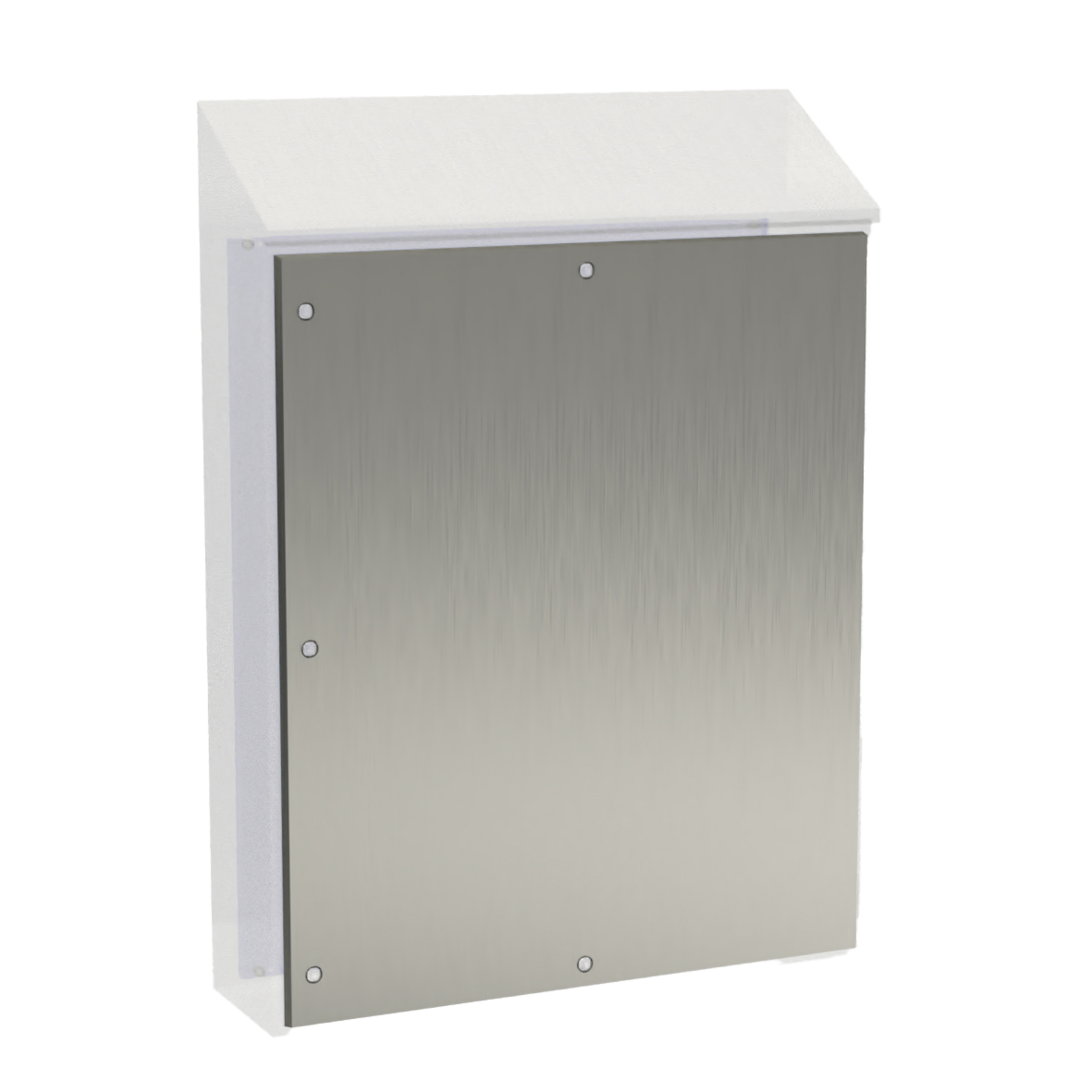

Door for enclosures type HE3353
Product description
Replacement door for Hygienic Equipment enclosures type HE3353.
protective ground connection according to DIN EN 61439-1.
with reinforcement brackets.
Technical data
-
Article number: 3353-1012-01-00
-
Material: Stainless steel no. 1.4301
-
Sheet thickness: 1,5 mm/0,0,6"
-
Protective conductor connection: according to DIN EN 61439-1
-
Surface: externally brushed, surface roughness < 0.8 µm
Notice
- Please order the hygiene sealing, 5 hygiene locks and 3 hinges separately – see accessories
- 1 door without lock and hinges, without hygiene sealing
3353-1012-00-88
Hygiene sealing for enclosures type HE3353
Material
Silicone FDA 177.2600 conform
Surface
similar to RAL 5017
3353-1012-30-10
Enclosure Hygienic Equipment HE3353
Dimensions
Width: (nominal dimensions/external dimensions): 1020/1020 mm
Height: (nominal dimensions/external dimensions): 1220/1393 mm
Depth: (nominal dimensions/external dimensions): 300/304 mm
Height: (nominal dimensions/external dimensions): 1220/1393 mm
Depth: (nominal dimensions/external dimensions): 300/304 mm
