3353-8010-01-00

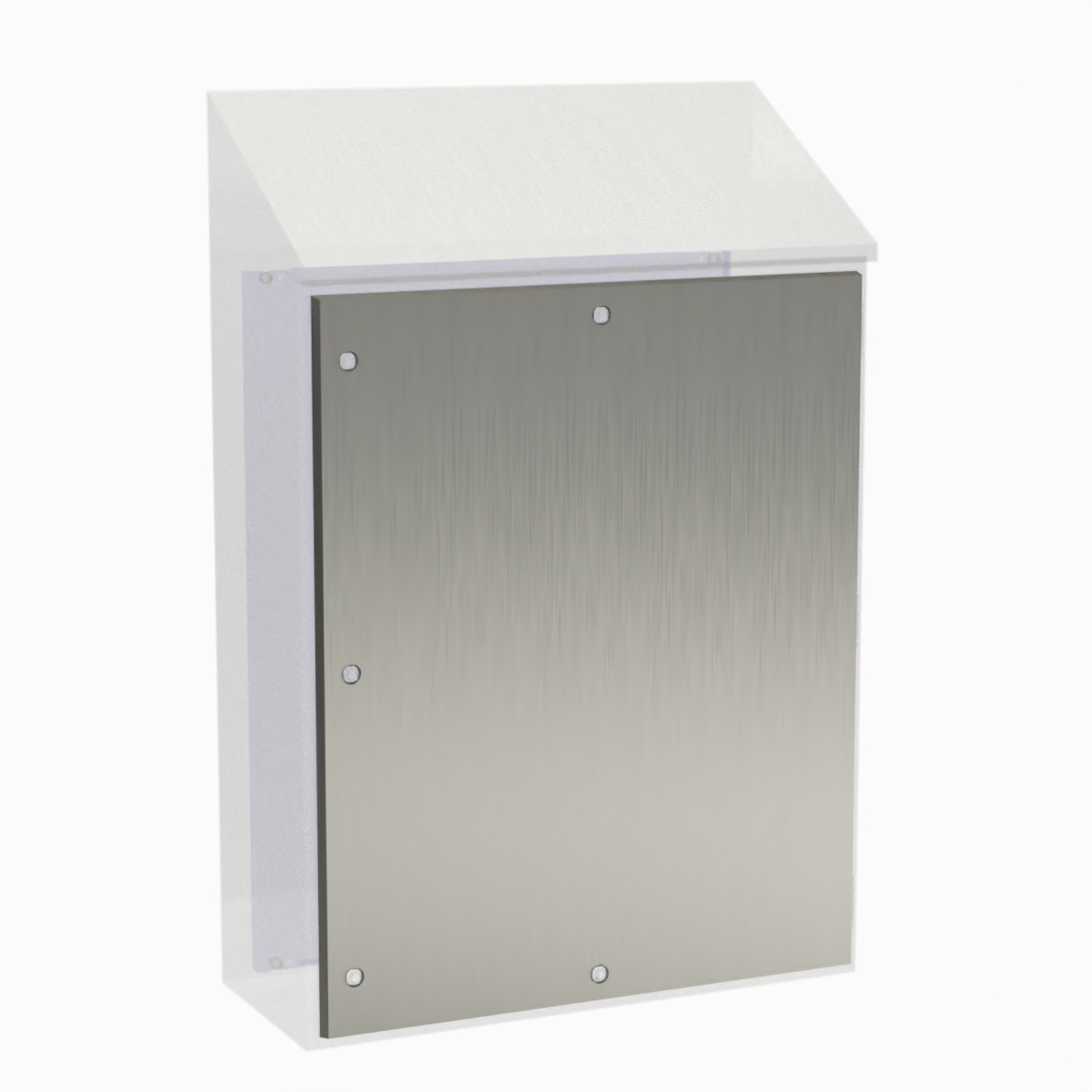

Door for enclosures type HE3353
Product description
Replacement door for Hygienic Equipment enclosures type HE3353.
protective ground connection according to DIN EN 61439-1.
with reinforcement brackets.
Technical data
-
Article number: 3353-8010-01-00
-
Material: Stainless steel no. 1.4301
-
Sheet thickness: 1,5 mm/0,0,6"
-
Protective conductor connection: according to DIN EN 61439-1
-
Surface: externally brushed, surface roughness < 0.8 µm
Notice
- Please order the hygiene sealing, 5 hygiene locks and 3 hinges separately – see accessories
- 1 door without lock and hinges, without hygiene sealing
3353-8010-00-88
Hygiene sealing for enclosures type HE3353
Material
Silicone FDA 177.2600 conform
Surface
similar to RAL 5017
3353-8010-35-10
Enclosure Hygienic Equipment HE3353
Dimensions
Width: (nominal dimensions/external dimensions): 820/820 mm
Height: (nominal dimensions/external dimensions): 1020/1222 mm
Depth: (nominal dimensions/external dimensions): 350/354 mm
Height: (nominal dimensions/external dimensions): 1020/1222 mm
Depth: (nominal dimensions/external dimensions): 350/354 mm
CAD data and other illustrations:
